P10.4 dancing floor led display
Function and Technology Character:
vivid image show brilliant visual performance.
wide viewing angle with superior color uniformity.
hign mechanical precise design for die-casting aluminium cabinet,smooth and gapless surface.
Ultra-Slim and Ultra-light weight,fashionable and beautiful.
Low power consumption thus do not generate as much heat,more economical and environmentally friendly.
High reliability and long lifespan,high-efficiency in heat radiating.
Easy and convenient to assemble and disassemble,fast installation.
Hign Hardness
Adopts the hardest hign polymer material-Polycarbonate as mask,prevent damage from scratch,hit,hign temperature,and corrosion.
Strong Structure
Adopts AL6063-T6 aluminum plate,with pretty load-bearing capability,ensures holding more than 1000kg/SQM weight.
Speedy Heat Venting
Well heat venting performance,heat can be conducted to outside directly through aluminum plate.

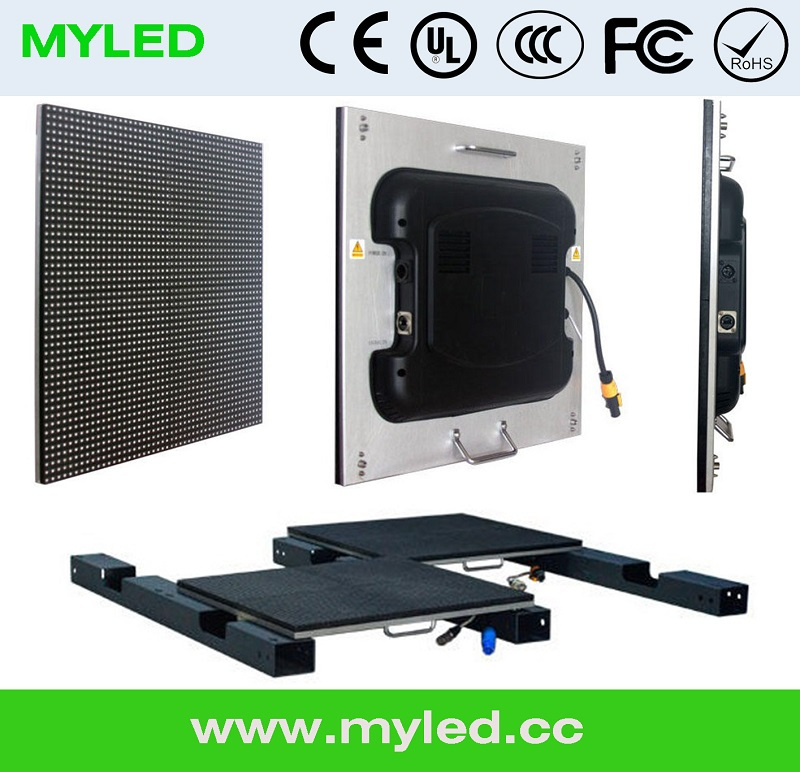

Easy to Assemble & Transport
Separated LED floor tiles and tracks;tracks can be connected by screw bolts,LED floor tiles can be paved on tracks naturally and fixed by positioning pin.
Dual Purpose Design
Dual purpose structure designing enables LED floor tiles to be hoisted/backside fixed as a video wall for rental use.
Parameters | D10 dancing floor led display |
| Pixel Pitch (mm) | 10.4 |
| Pixel density(pix/m2) | 9247 |
| LED Type | SMD3535 |
| Viewing Angle | H:120°,V;120° |
| Brightness(nits) | 3500 |
| Drive Method | 1/4 |
| Color Depth | 16bit |
| Refresh Rate(Hz) | 1920 |
| Module Size (mm) | 250×250×12 |
| Cabinet Size(mm) | 500×500×60 |
| Cabinet Material | Aluminum |
| Cabinet weight(kg) | 12 |
| Voltage | 110/240V |
| Average.power(W / m2) | 260 |
| Max.power (W / m2) | 800 |
| IP Grade | IP65/IP54 |
| Operating temperature/humidity | temperature:-20ºC~ 50ºC humidity:10~90%RH |
| Storage temperature/ humidity | temperature:-40ºC~ 60ºC humidity:10~90%RH |
| Lifetime(h) | ≥50000 |
| Compliant Standard | CCC,CE |
