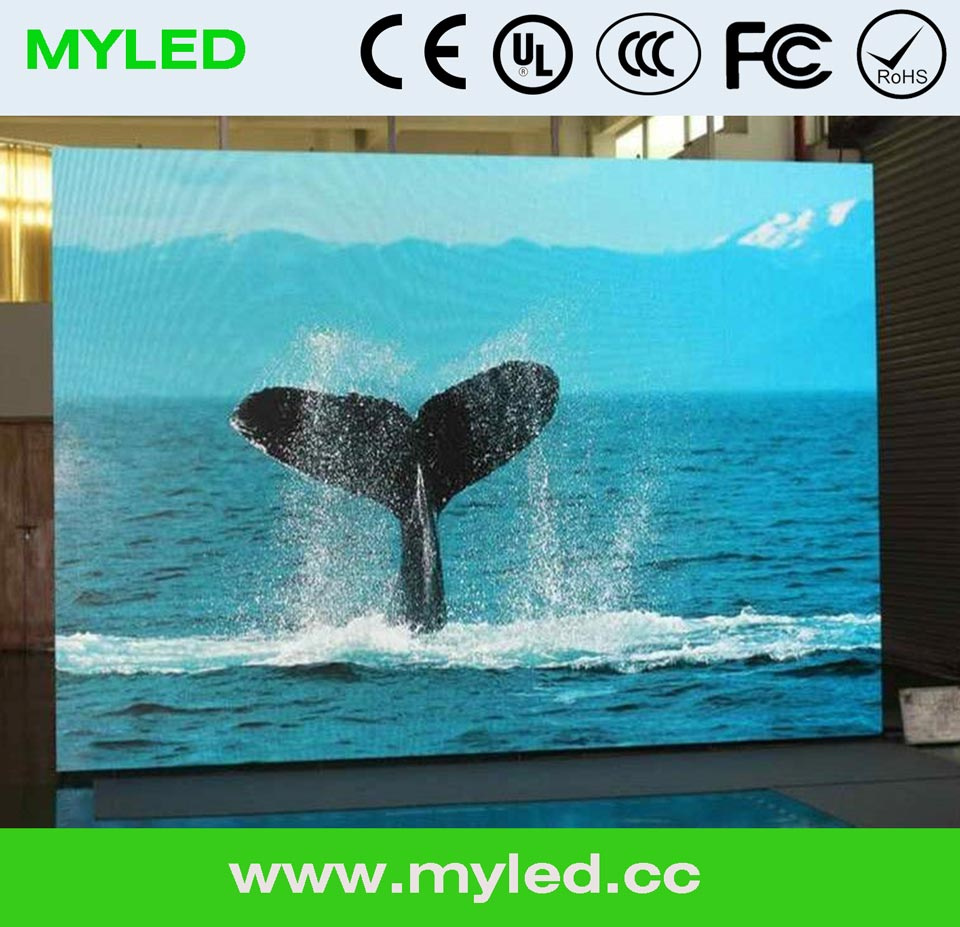

P1 indoor High Defination led TV display
MYLED TV Advantage
-Super fine physical pixel pitch distance 2.5mm and 3.125mm.
-Vivid colors and sharp images.
-Super wide viewing angle to maximize audience coverage(horizontal 160°/vertical160°).
| item | TV2.5 | TV3 | TV4 |
| Pixel Configuration | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 |
| Physical Pitch | 2.5mm | 3.125mm | 4mm |
| Module Dimensions(W×H×D) | 200mm×150mm×8mm | 200mm×150mm×8mm | 200mm×150mm×8mm |
| Weight per Module(kg) | 0.35kg | 0.35kg | 0.7kg |
| Cabinet Physical Resolution(W×H) | 160×120 | 128×96 | 50×75 |
| Cabinet Dimensions(W×H×D) | 400mm×300mm×110mm | 400mm×300mm×110mm | 400mm×300mm×91mm |
| Cabinet Surface Area() | 0.12 | 0. 12 | 0. 12 |
| Weight per Cabinet (Kg/cabinet; Kg/) | 5.8;48.3(6.1;51) | 4.8;40; | 4.8;40; |
| Physical Pixel Density | 160,000pixels/ | 102,400pixels/ | 62,500pixels/ |
| White balance(after adjustment) | ≥800cd/ | ≥1200cd/ | ≥1200cd/ |
| Color Temperature | 3200K-9300K adjustable | 3200K-9300K adjustable | 3200K-9300K adjustable |
| Horizontal Viewing Angle | 160° | 160° | 160° |
| Vertical Viewing Angle | 140° | 160° | 120° |
| Brightness Uniformity | ≥97% | ≥97% | ≥97% |
| Color Uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy |
| Contrast Ratio | ≥6300:1 | 5000:1 | 5000:1 |
| Power Consumption | Max100W/cabinet; 800W/ | Max100W/cabinet; 800W/ | Max100W/cabinet;800W/ |
| Avg30W/cabinet;240W/ | Avg40W/cabinet;330W/ | Avg40W/cabinet;330W/ |
| Power Supply | AC100~240V(50/60Hz) | AC175~240V(50/60Hz | AC175~240V(50/60Hz |
| Signal Processing | 16-bit | 16-bit | 16-bit |
| Grayscale Level | 10-bit | 10-bit | 10-bit |
| Colors | 280 trillion colors | 280 trillion colors | 280 trillion colors |
| Driving mode | Constant Current Drive | Constant Current Drive | Constant Current Drive |
| Frame Rate | 50Hz&60Hz | 50Hz&60Hz | 50Hz&60Hz |
| Refresh Rate | ≥3000Hz | ≥2400Hz | ≥2400Hz |
| Lifetime(Half brightness) | 50,000Hrs | 100,000Hrs | 100,000Hrs |
| Operating Temperatures | -10-40ºC | -10-40ºC | -10-40ºC |
| Storage Temperatures | -20-60ºC | -20-60ºC | -20-60ºC |
| Operating Humidity | 10-80%RH | 10-80%RH | 10-80%RH |
| Storage Humidity | 10-85%RH | 10-85%RH | 10-85%RH |
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.
Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.
Quality is the most important theme for Myled and welcome to contact, and visit our company.
We hold the truth that better quality, better price and better sales services are our company culture.
