outdoor wifi led screen display red(GAS12ZR8888TB)
Specifications
1.High brightness and quality
2.Enerqy--savor
3.CE or RoHS
4.With RF controller
5.Wide range-8inch, 10inch,12inch,16inch,18inch and 20inch

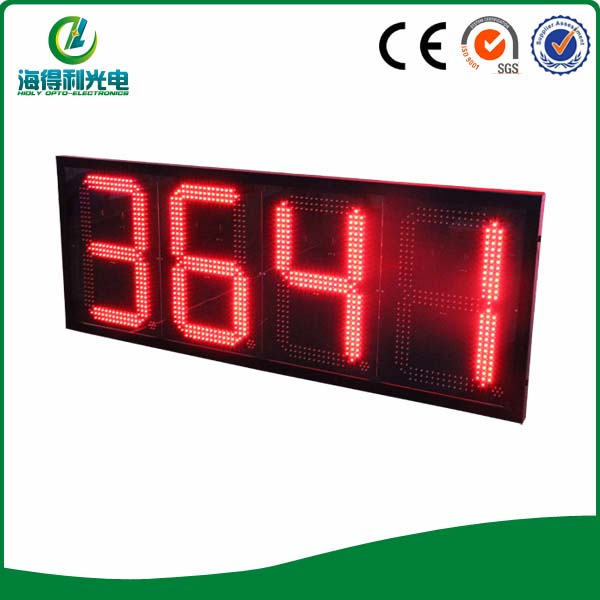

LED gas price sign is programmed by SCM and control the high-brightness LED to display many different price digits.It is energy saving, environmental protection, easy-operation, catch eyes, it is new-style gas price display.
--------------------------------------------------------------------------------------------------------------------------
led screen display red Specifications
1.Highly brightness LED are arranged to several 8 figure, the digits can be up to 32PCS.
2.Single side, double sides, three sides, four sides.
3.Support remote editing, 30m distance for infrared communication;Support PC program and wireless communication, distance can be 800m.
4.Adjusting the brightness automatically by skylight brightness, the display can adjust 8levels of brightness automatically between evening and daytime
6.Visual distance.100m
7.Visual angle.90degree
8.Brightness.4000CD/m2
9.Color.Red, green, amber, white or customized color.
10.Digit mesurement.12.5inch(digit height) 1inch=25.4mm=2.54cm
11.Single dimension.233mmX325mm
12.Location hole dimension.218mmX310mm
13.Single 8 figure weight.400g
14.LED quantity of one 8 figure.250PCS
15.Display"0, 1, 2, 3, 4, 5, 6, 7, 8, 9, DOT"
16.Working environment temperature.-40 °C to +80 °C
17.Humidity.0% - 95% RH
18.Best function flashing modle for choose
---------------------------------------------------------------------------------------------------------------------------
Technical info
1.Controller power.1.5watt, one controller can drive 32PCS"8"figure
2.Max power of 12.5inch is 12watt
3.Voltage.AC110 or AC220.
4.One power of 12V30A can connect 14PCS LED signs(360*0.8/20=14)
5.Method of controlling LED brightness.Manual operation(by remote controller)and automatically control(by light sensor to adjust brightness higher during daytime, and lower during evening to save energy.)
6.Component.:Main board(one controller can drive up to 32PCS of"8"figure maximum.), power supply, remote controller, infrared receiver port, light sensor.
7.We can customize your products according to your detailed requirements, like voltage, power, installation size, display colors etc.
--------------------------------------------------------------------------------------------------------------------
Why Choose DongGuan LED Electronic.Co.,Ltd led display?
* Long history ,good reputation,high quality,best service, reasonable price in the market.
* Short delivery time.Sample delivery within 5 days ( normal size and design);Bulk order delivery within 10 working days (normal size and design)
* Professional technology support and professional engineer team.
* Larger export market in every country in the world
* Relative certifications:CE , UL, RoHS and son on.
* Salesman provide the professional service and support to every clients.
-------------------------------------------------------------------------------------------------------------------------
FAQ
1.What is the lead time of sample?
---sample led sign will be deliveried within 5 working days for normal size and design.
2.What is the lead time of wholesale order?
---wholesale order lead time:10 working days for normal size and design.
3.How can i pay if you want to make business with you?
---T/T, 50% deposit, 50% before delivery;Sample must be payed full ;Western Union, Paypal, and swift account, if you need other payment item, please discuss with us.
4.If i want to purchase some led display, which beyond your size and color option, can you make it?
---yes, we can customized for you.
5.Before send inquiry to us, please confirm which color and size you need, then we can quote you the best price..
Size |
8inch |
10inch |
12inch |
14inch |
16inch |
18inch |
20inch |
| Quantity of LEDs |
115 |
229 |
250 |
259 |
273 |
252 |
227 |
PCB Size |
235.6x148mm |
280x200mm |
328x232mm |
370x2462mm |
422x300mm |
498x353mm |
560x395mm |
Power |
5.4W |
11.5W |
10.9W |
9.1W |
9.6W |
11.4W |
12.5W |
Cabinet size for 8888 |
612*225*60mm |
830*318*60mm |
855*335*60mm |
1108x430x60mm
|
1248*472*60mm |
1472x557x60mm |
1650x630x60mm |
| Color | Red. Green. Blue. Yellow. White |
| Control box size | 300 x 300 x 80mm |
| RF Control system | RF controller. RF remote, MeanWell Power supply ,fan, light Sensor, control box |
| Control Distance | 30m -100m
|
Price
Color | MOQ:50PCS. Price Item: EXW |
Red |
$ 11usd |
$ 18usd |
$ 20usd |
$ 32.5usd | $39.17usd | $45.83usd | $46.67usd |
Yellow |
$ 15usd |
$ 22usd |
$ 24usd |
$ 35usd | $42.50usd | $63.33usd | $71.67usd |
| White.blue, green |
$ 20usd |
$ 25usd |
$ 27.5usd |
$ 43usd |
$ 47.5usd
| $ 75usd
| $ 83.33usd
|
| RF control system | $98usd/set ( one set can work for 32pcs digits) ,include RF controller, RF remote. 12V29.5A (350W) Mean-Well Power supply.
|
