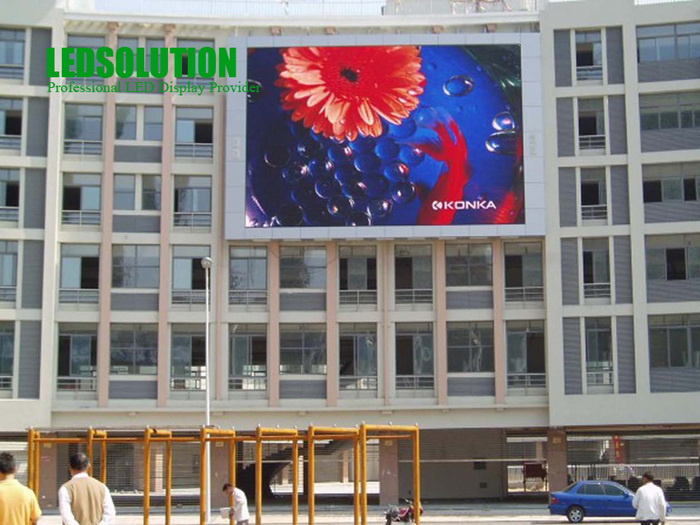

P16 Full color Outdoor SMD LED Display, Outdoor-SMD-LED-Anzeige, SMD LED de.
Features of the outdoor SMD LED Display:
*Wide viewing angle: Horizontal 140degree, Vertical 140degree
*Weatherproof to IP65 standards
*UV against
*Easily configured for various size and aspect ratios
*Brightness from 6000 nits onwards
*Compatible with inputs: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA
LEDSolution LED Display:
| Parameter | Unit | Value |
| Pitch | mm | 16 |
| Brightness | nits | 6, 000 |
| Color temperature | deg. K | 6, 500 |
| Viewing angle - Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle - Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 56 |
| Panel width | mm | 1, 024 |
| Panel height | mm | 1, 024 |
| Panel depth | mm | 170 |
| Panel area | sq. m. | 1.0486 |
| Panel material |
| Epoxy paint coated Cold rolled steel |
| Ingress protection (front/rear) | IP | IP65/IP43 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 3in1 SMD |
| Resolution per panel |
| 64x64 |
| Dot per panel |
| 4, 096 |
| Dot per sq. meter |
| 3, 906 |
| LED per sq. meter |
| 3, 906 |
| Recommended minimum viewing distance | m | 16 |
| Recommended best viewing distance | m | 22~53 |
| Colors |
| 1, 073.7 million |
| Grey scale (linear) | Levels | 1, 024 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1, 000: 1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3, 000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts /sq. m. | 1, 000 |
| Input power (typical) | Watts /sq. m. | 400 |
| Lifetime (50% brightness) | Hours | ≥ 100, 000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 520~525 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI, MPG, AVI, WMV, RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Fixed with 4pcs M10 bolts |
