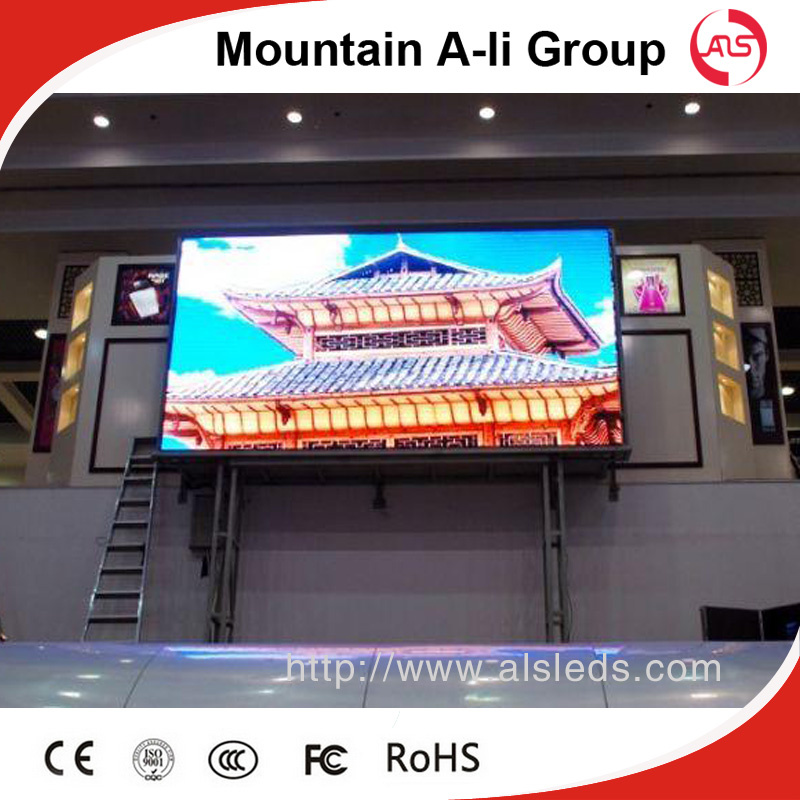

Outdoor SMD High Brightness P6 Waterproof LED Display

Our Features:
1.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting
3.Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy-saving.


Unit Module	Item	Parameter
	Module	P6 Outdoor Surface Mounted Module
	Module Size	192mm*192mm
	Pixel Pitch	6mm
	Pixel Density	27777dots/m2
	Package mode	SMD3535
	Pixel Configuration	1R1G1B
	Module Resolution	32dots(W)*32dots(H)
	Max Power Consumption	25W
	Module Thickness	27mm
	Module Weight	0.4kg
	Driving Method	Constant Current Driving
	Scan Method	1/8Scan
	Interface Way	HUB75B
	Brightness	≥6000cd/m2
Cabinet Module	Cabinet Size	768mm*768mm
	Cabinet Composing	16pcs
	Power Supply Mode	5V/40A     5V/60A
	Cabinet Resolution	128mm*128mm
	Optional Viewing Distance	5m-50m
	Optional Viewing Angle	160°(W) 120°(H)
	Environment Temperature	Work :-20°C~+50°C
	Relative Humidity	10%-95%
Power	Operating Voltage	AC220V±10%
	Average Power	300W/H
	Max Power Consumption	≤560W/m2
	Current	≤20mA
Control System	Computer	Pentium4 or above P4 or above
	Operate System	WIN98/2000/NT/XP
	Control Mode	Synchronization with PC
Main technical parameter	Driving Rate	IC Constant Current Driving
	Refresh Rate	≥600HZ
	Gray/Color	RGB each 256 grade,can display 16.7M color
	MTBF	≥9000hours
	Power Switch	Automatic Switch
	Display Mode	800*600/1024*768/1280*900

Why Choose US?
Professional wholesale and manufacturer of stage light
1. We have over 8 years' experience of stage light.
2. We specialize in High configuration and high quality products.
3.We have professional R&D team who has professional development  ability.
4. Integrated research and development, design, production, sales and
service.
 Every material using inside will be picked up carefully and be fully tested.
5. 100% manufacture, 1 year spare parts' guarantee time (except lamp & CMY) .
6. We are factory, we can offer better price than Trade Company.


Our Remarks
1.Payment term:
    30% T/T in advance and balance before delivery.

2.Delivery time:
    Within 15 working days after 30% advance payment.

3.Free training:
    You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.

4.Installation:
    We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day;or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.

Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. We can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
