Outdoor Rental LED Curtain Display, Ruck Mounted LED Display (iGrid-P15)

Outdoor Rental LED Curtain Display, Ruck Mounted LED Display (iGrid-P15)
Price: US $ 689-1283/Square Meter
Trade Terms: FOB
Min Order: 8/Piece
Pay Type: T/T,Western Union
Overview:
IGrid is a kind of LED colorful screen with the performance of light, thin and transparent. It's jointed correctly; Easy to install and dismount; Simple structure, secure and durable. The electron device insert technologies especially design for the lighting rental merchant, which could be waterproof and crash proof. Then, the customers could be free from worry. The SMD is (1R+1G+1B) and static constant current drive, so the iGrid is with high brightness, high fresh rate and high gray rate, which would be the first choice for the large size display products for outdoor use.


Product Features:

1. Light, suitable for flow shows, convenient in transporting and jointing.
2. Nice appearance and secure.
3. IP65, it could be applied temporarily outdoor, make it possible to operate in the sudden rainy days.
4. Could achieve any arc-shaped within +/-20.
5. Jointed correctly, could be dismounted by one person without tool.
6. High transparency. Light, air and frost could easily cross through it.
7. Humanized operating interface with breakdown indicator lights.
8. UL certificate.

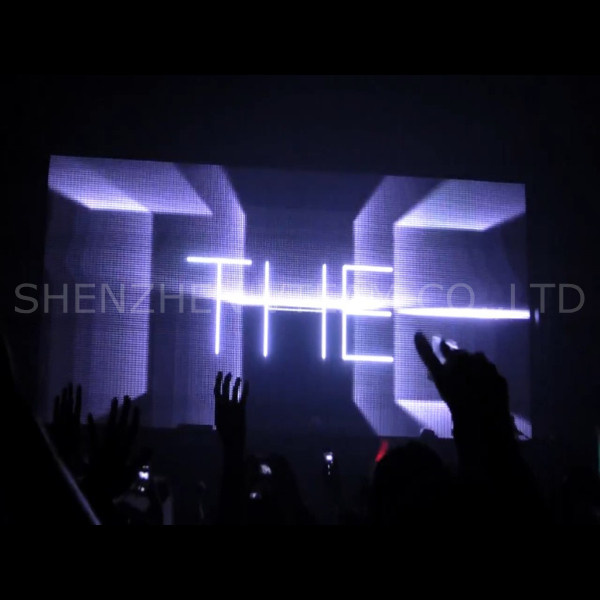

Application Scene: Ideal for dazzling different events, such as stage, concert, fashion show, wedding, conference, building, hotel, club & bars, festival, etc
Item iGrid 15 iGrid 18.75 iGrid 25 iGrid 37.5
Pixel Pitch 15mm 18.75mm 25mm 37.5mm
Pixel Density 4444pixels/m² 2844pixels/m² 1600pixels/m² 711pixels/m²
Resolution(WxH)
(600mmX600mm)
40×40 dot 32×32 dot 24×24 dot 16×16 dot
Resolution(WxH)
(600mmX900mm)
40×60 dot 32×48 dot 24×36 dot 16×24 dot
Weight (600mmX600mm) 8KG 7.5KG 7KG 6.5KG
Weight (600mmX900mm) 13KG 12KG 11KG 10KG
Brightness 500 cd/m² 5000 cd/m² 3200 cd/m² 1500 cd/m²
View Distance ≥15m ≥19m ≥25m ≥38m
Max.Power Consumption 900 W/m² 700 W/m² 400 W/m² 200 W/m²
Ave.Power Consumption 480 W/m² 400 W/m² 220 W/m² 110 W/m²
Refresh rate 1800HZ 2400HZ 3600HZ 4800HZ
Cabinet Size  600×600×85mm or 600×900×85mm
LED type RGB 3in1 SMD3535
Gray Scale 16bit
Color type 68 Billion
IP Rating IP65
Viewing Angle 140°/140°
Brightness control 0~100% 16 level
Power input AC 220V±10%  50/60HZ
Controller Synchronous display with control PC by DVI
Gamma  -5.0~+5.0
Support input Composite, S-Vid e o, Component, VGA, DVI, HDMI, HD_SDI
Environment temperature -20°C~+50°C , humidity 10~95% RH
Operating Life 50,000hours

Prod Model: iGrid
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name: Vteam
Place Of Origin: Guangdong, China
Model Number: Igrid15
Usage: Outdoor
Pixel Configuration: 1r, 1g, 1b
Display Type: LED Video Display
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Scanning Mode: 1/8 Scan
Pixel Pitch: 15/18.75/25/37.5mm
SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.

VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.

As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!

VTEAM Mission: To create value and profit for customers!

VTEAM Vision: Being creative concept pioneer!
