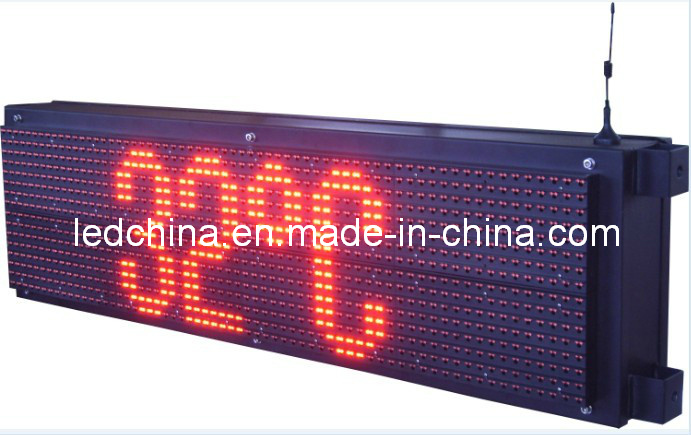

Outdoor Red Color LED Scrolling Display
1. Energy saving.
2. Competitive price.
3. Superior Uniformity.
4. We can expand the size of the LED display according to our requirement based on the cabinet size.
5. Having good lightening accordance and no mosaic.
6. Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance.
7. Good heat emission capability.
8. Environmental-friendly.
| Technical Parameters |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | DIP346 | 520mcd | 620-630nm | 110°/50° |
| Module Specifications |
| 1 | Pixel Pitch | 10mm |
| 2 | Pixel Configuration | 1R |
| 3 | Unit Module Size | 320mm x 160mm |
| 4 | Module Resolution | 32 x 16 pixels |
| 5 | Pixel Density | 10000 dots/m2 |
| Cabinet Specifications |
| 1 | Cabinet Size(W X H X D) | 1920mm x 480mm x 165mm |
| 2 | Cabinet Resolution(W X H) | 192 x 48 pixel dots |
| 3 | Module Quantity(W X H) | 6 x 3 pcs |
| 4 | Cabinet Materials | Standard cabinet |
| Whole Screen Specifications |
| 1 | Display Size | W1.92m x H0.48m total 0.9216 |
| 2 | Resolution of whole screen(W X H) | 192 x 48 pixel dots |
| 3 | Cabinet Quantity | 1pc |
| 4 | Screen Brightness | ≥3500cd/ |
| 5 | Driving Mode | 1/4 scan |
| 6 | Max Power Consumption | 230W |
| 7 | Average Power Consumption | 185W |
| 8 | Screen Weight | 45kg |
| 9 | Display Colors | Red color only |
| 10 | Frame Frequency | ≥60Hz |
| 11 | Refresh Frequency | ≥600Hz |
| 12 | Screen Life-span | ≥100,000 hours |
| 13 | Blind Spot Rate | <1/10000 |
| 14 | Protective Scale | IP65 |
| 15 | Screen Plainness | <±1mm |
| 16 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 17 | Environment Temperature & Humidity | Temperature:-20ºC~+60ºC
Humidity:10%~90% RH |
| 18 | Control Mode | Asynchronous control
|
