Home LED Light Products Outdoor P25 Curved LED Screen Display

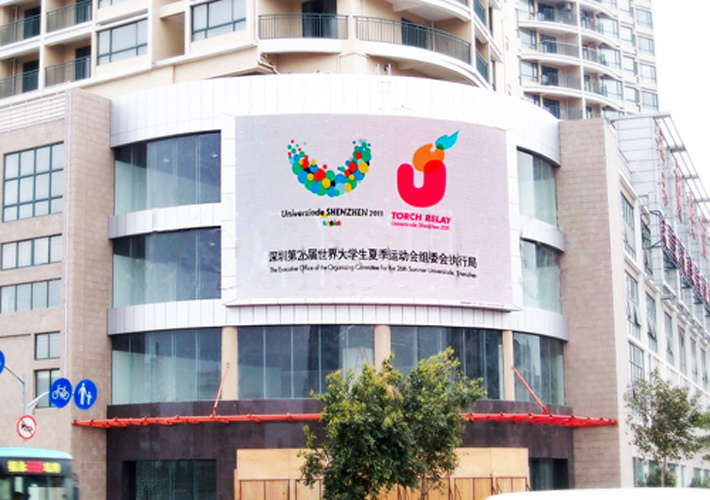

Outdoor P25 Curved LED Screen Display

Outdoor P25 Curved LED Screen Display
Price: US $ 400-650/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union
Product Name: P25 LED Screen/LED factory/LED price

1,Cabinet structure is with light weight and standardization: adopting high strength metal process, achieving high precision, light weight and other outstanding features; uniform image picture with high 2,refresh frequency and gray level to realize the vivid effect.
3,High bearing strength and fast installation through the connecting plate. With flexible installation, such as embedded installation, post mounting,etc. It would not occur the extrusion and deformation 4,phenomenon between the modules when the display is working under the high and low temperatures.
5,Achieve low heat, low noise and low radiation: through the good structure design, ensure Low decibel value and stable performance when it works in the normal temperature; Passed the EMC test.
6,High voltage thermal pull out plug in application: It will not strike fire during pull out the plug process, and fully accomplish the phenomenon such as waterproof, anti-interference, corrosion resistance,etc.
7,The module cases with the handle for installation and maintenance, the mask is not reflective, and resistance to ultraviolet ray, do not fade for 5 years, contrast to 1000:1, cabinet flatness coefficient < 0.5 mm, power factory can reach more than 88%.
8,Double backup data and applications of optical fiber system, ensures that the screen can work in high efficiency, stability, security situation. The rational allocation of light sensor, the led display will in the best work state and dynamic energy saver by adjusting automatically the screen brightness according to the change of the external environment to save the operating cost effectively.

Outdoor LED Display Screen  technical parameter:

Item

PH25 Outdoor LED display

Pixel Pitch(mm)
25mm
Pixel density(/m2)1600
LED TypeDIP346
Viewing angle:H:120°,V:60°
Brightness(nits)≥4500
Drive MethodStatic
Color Depth(nits)16384
Refresh Rate(Hz)3000
Module Size(mm)200×200×28.5
Cabinet Size(mm)1200×1000×154
Cabinet MaterialIron Sheet Metal
Cabinet weight(kg)70
Voltage110/240V
Average.power(W / m2)200
Max.power(W / m2)600
IP GradeIP65/IP54
Operating temperature/humiditytemperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humiditytemperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)≥50000
Compliant StandardCCC,CE,Rosh


Packing & delivery: Wooden/cartoon cases

Warranty:2 years
Prod Model: LW-FO 25
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
25mm: RGB
Special Shape: Fixed Installation
Waterproof: High Brightness
LED Type: DIP346
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 25mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 180W / m²
Scanning Mode: Static Scan
Display Type: LED Video Display
Application: Advertising
Certification: CCC
Pixel Density: 1600 W/M2
Shenzhen LED World Co., Ltd has focused on export business since 2009, who specialized in supplying the solutions of LED display screens, LED signs for worldwide market. The products series include small pixel pitch LED display, rental LED display screen, advertising LED display, stadium LED sign, LED ball screen, LED floor screen, creative LED display screens and so on. The above products are widely used in advertising media, public facilities, sports, entertainment, military, traffic and other industries, exported to USA, Mexico, Greece, Spain, Italy, UK, Thailand, Uganda, Nigeria, Russia, India, Turkey, Thailand, Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.

LED WORLD depends on the excellent outstanding R&D technicians, skilled & experienced oversea sales team, who adhere to" customer first, quality first, reputation first" as operating principle, making our future is better and better day by day.

Warmly welcome you visit our company to innovate and win glory together.
