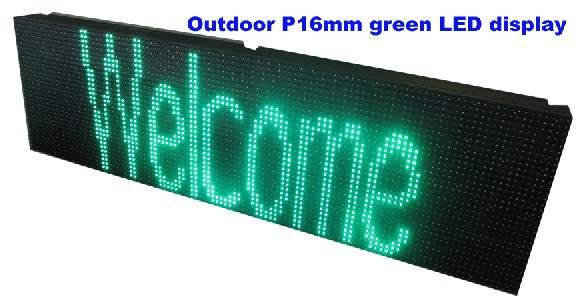

Outdoor P16mm LED display features / functions as follows:
1. Model No.: CCOP16G32x128
2. Color: Green color
3. Usage: Outdoor, waterproof and dustproof and shockproof, IP65
4. Pixel pitch: 16mm
5. Best viewing distance: Within 200 meters
6. LED Viewing angle(H/V): 120/50
7. Power supply: 110V AC or 220V AC
8. Power consumption: 300W Max.; 180W average
9. LED driving voltage/current: 5V DC/ 20mA
10. Brightness: More than 6000CD per square meter, super high bright, suitable for viewing in outdoor strong sunshine, can be adjusted in software manually or by light sensor automatically
11. LED type: 13X13 Mil, one LED lamp for each pixel
12. Scan mode: 1/4 scan
13. LED brand: Original Epistar
14. Scan frequency: ≥ 180 frames/ second
15. Refresh frequency: ≥ 540Hz
16. Defect rate: ≤ 0.00001
17. Temperature-operating: -45~+60 centigrade degrees
18. Humidity-operating: 10% ~ 98% HR
19. Gap between 2 LED modules: < 0.2mm
20. DOT matrix( total screen resolution): 32(height) x 128(length) dots
21. Visual display area: 512mm (H) X 2048(L) mm = 1.05 square meters
22. Cabinet size: 2048(L) x 512(H) x 150(D) mm
23. Outside cabinet material: Galvanized steel case, black color
24. Waterproof grade: IP65
25. Ventilation: Cooling Fans (Included)
26. Screen N. W.: 53KG
27. Display functions:
1) Graphics, text (can display all international characters such as Arabic, English, Chinese, Japanese, Spanish, Latin, Hebrew etc. ), table 2) various real-time data(e. G. Time, temperature, date)
28. Control / communication way: RS232 serial port via computer, with USB cable. Or via wireless RF module, there is no any connecting cable between computer and the LED display, the wireless distance is 100 meters (extra cost is 118 USD).
29. PC support system: Windows XP
30. Installation ways: Wall mounting, with brackets on the backside of the cabinet
31. Maintenance access: Backside access
32. Warranty: 3 years
33. Switching power supply brand: Taiwan Mean Well
34. Delivery time: 20 days
35. Packing: To be put in one wooden box (2108X582X240MM =0.29CBM, 67KG)
36. Unit Price: 1250 USD/ unit (for one unit)
37. Shipping cost: Please tell me your address so that I check it
