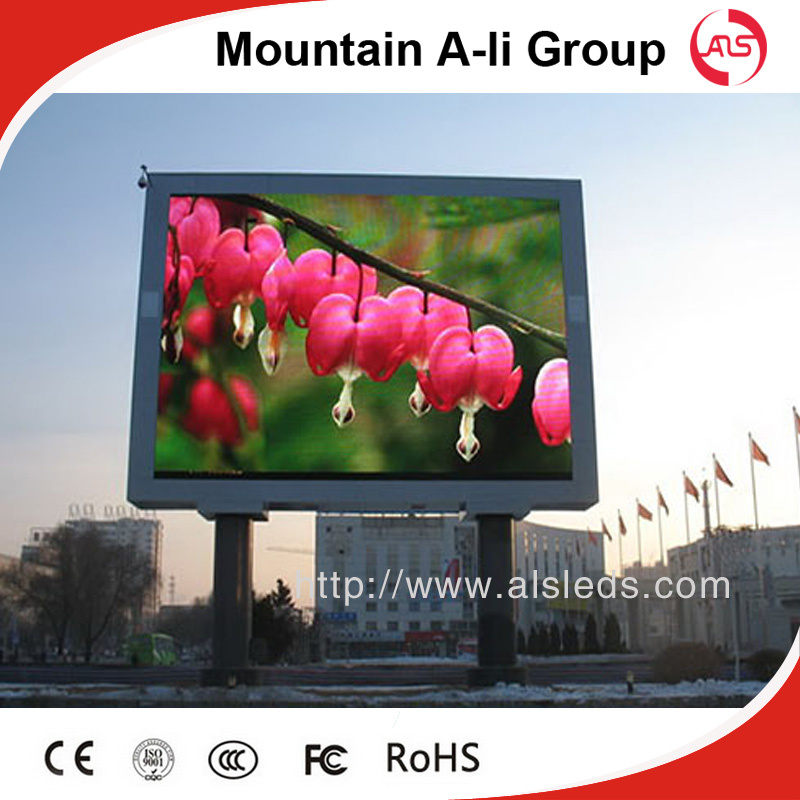

Outdoor P10 SMD Full Color LED Display

Outdoor P10 SMD Full Color LED Display
Price: US $ 570-640/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 1/Square Meter
Pay Type: T/T,Western Union



Product Description

Outdoor P10 SMD Full Color LED Display
Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Our service

1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.

Trade Terms

1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 5-12 working days




Parameter
The specifications of modules

ItemsParameter
Product ModelP10 Outdoor SMD LED Display
Module size320mm*160mm
Pixel pitch10mm
Pixel density10000dots/m2
Pixel configuration1R1G1B
Module resolution32dots(W)*16dots
Module maximum power consumption20W
Module Thickness25CM
Module Weight0.5kg
Driving methodConstant Current Driving
Scanning method1/4scan
InterfaceHUB75
Brightness≥5000cd/m2
The specifications of cabinets

Cabinet size960mm*960mm
Module quantity18pcs
Power supply5V/40A 5V/60A
Cabinet resolution96*96dots
Optimal viewing distance10M~50M
Optimal viewing angle160°(W) 120°(H)
RHWorking temperature(Work :-20°C~+60°C)
System operating humility10%-95%
The specifications of power supplier

Operating VoltageAC220V±10%
Average power consumption400W/H
Maximum power consumption≤600W/m2
Electric current≤20mA(single LED)
The specifications of control card
Control PanelsPentium4 or above
Operating systemWIN98/2000/NT/XP
Control modelSynchronization with PC
The specifications of the main technical parameters

Driving deviceConstant Current Driving
Refresh rate≥600HZ
Grey scaleRGB Each 256, can display 16.7M colors)
MTBF≥9000hours
Power switchAutomatic Switch
Display Mode800*600/1024*768/1280*900

Prod Model: P10 Outdoor SMD LED Display
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 350W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: FC,Is9001
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
