Product Description

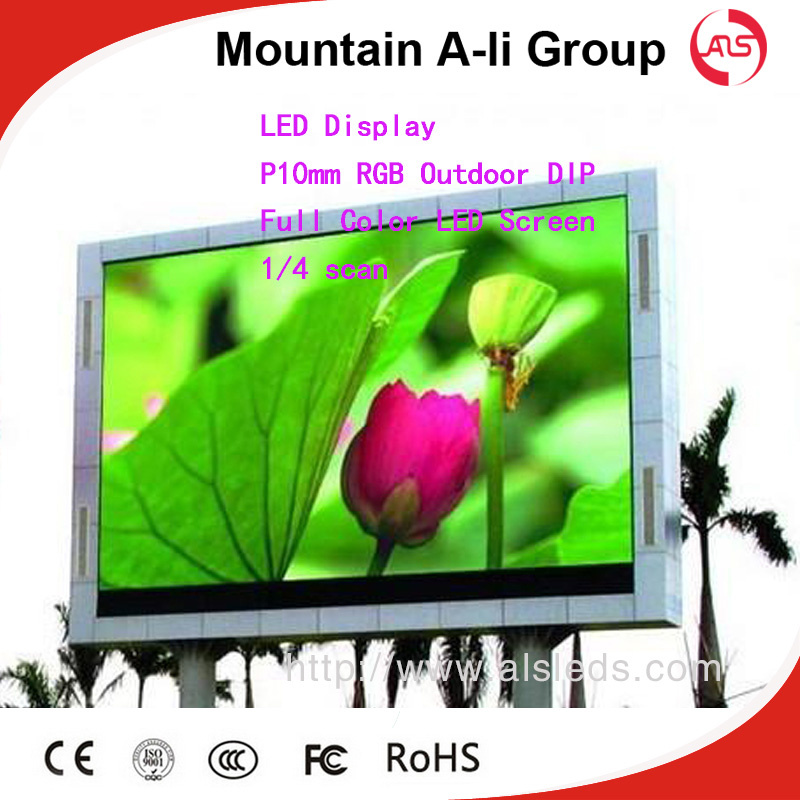

Outdoor P10 RGB LED Display
1. Features:
1. High brightness. Use DIP LEDs, keeps the display content visible even if facing the strong sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
3. Waterproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid audio visual effect.
6. Both front and rear access are available.
7. Good LED Chips, with large viewing angle, lowe power consumption and good color uniformity.
8. Easy for maintenance.
9. Good quality raw material, accurate technique and careful inspection insures the high quality of led display.
Our service:
1. Inquiry response time: within 24hrs.
2. OEM&ODM: design and produce your customized requirements.
3. Provide distributors customized design and models we already have.
4. Protect your sales area, design idea and all your private information.
5. Top quality + reasonable price+ patient after-sales service.
6. Mountain A-Li Group can also offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and LED large screen full color display
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 3-12 working days
Why choosed us :
1.Price Advantage: No.1 cost effective
2.Quality advantage: serious QC control system , best material
3.Service advantage: after service dept& Tech Dept. Perfect after sales system
Parameters of the unit module | Item | Parameter |
| Product model | P10 Full Color LED Module |
| Module size | 160mm*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000CD/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W)*16dots(H) |
| Maximum power consumption | 20W |
| Module thickness | 25CM |
| Module weight | 0.5kg |
| Driving method | Constant Current Driving |
| Scan mode | 1/4scan |
| Interface type | HUB75 |
| Brightness | ≥7500CD/m2 |
| Parameters of the cabinet | Cabinet size | 960mm*960mm |
| Module quantity | 36PCS |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10m~50m |
| Optimal viewing angle | 160°(W) 120°(H) |
RH Working temperature | Storage:-35°C~+85°C |
| Working:-20°C~+50°C |
| System operating humility | 10%-95% |
| Power | Operating voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤700W/ |
| Current | ≤20mA(single LED) |
| Control system | Computer | Pentium4 or above p4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| Main technical parameter | Driving device | IC Constant Current Driving |
| Refresh rate | ≥600Hz |
| Grey scale | RGB Each 256 grade,,can display 16.7 M color |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display mode | 800*600/1024*768/1280*900 |
Contact
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
