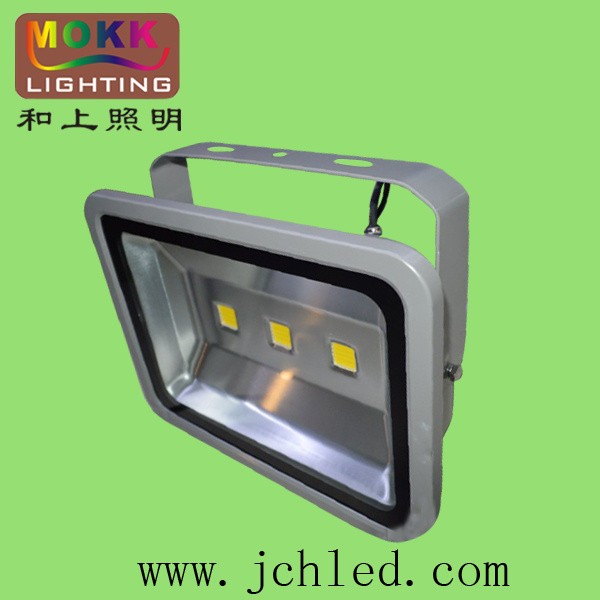

High power cob 150w led flood light
Specification
LED Light Source: Epister/Bridgelux/cree chip
Input Voltage(V): AC85-265V
Power(W): 150
Watts: 10-150w are available
Lamp Luminous Flux(lm): 7000-9000
Color Temperature(CCT): RGB, White, and all single color
Lamp Body Material: Aluminum Alloy +tempered glass
CRI (Ra>): 80
Lamp Luminous Efficiency(lm/w): 90-100
IP Rating: IP65
Beam Angle(° ): 120
Time-delay: 10± 5sec-10± 2min
Working Lifetime(Hour): 50000
Certification: CE RoHS, PSE, SGS.
Warranty: 3years
Products Features
1) Energy-saving: The high power LED as light source, 80% energy saving than incandescent.
2) Environmental Protection: Does not contain mercury, lead and hazardous substances, no environmental pollution, no infrared and ultraviolet to avoid harm to the human body, its green lighting products.
3) Long lifespan: The life of up to 50, 000 hours or more.
4) The use of high-power bright LED group packages, and heat fixed one to make the product more solid and reliable, life assurance.
5) Input voltage of 85V-265V, makes products easier to use.
6) DC constant current driver, no flicker.
7) Direct optical illumination point than traditional lamps have higher light-use efficiency.
8) The main use of extrusion molding a unique heatsink with good thermal conductivity of aluminum (AL6063), LED contact with copper thermal conductivity
Installation:
Avoid installing it where there is sunshine or air stream and temperature alter obviously. Connect line according to the below figure.
Application
1. Decorative lighting
2. Edge lighting
3. Emergency lighting
4. Auditorium walkway lighting
5. Stairway lighting
6. Backlighting for signage letters
7. Channel letter lighting
