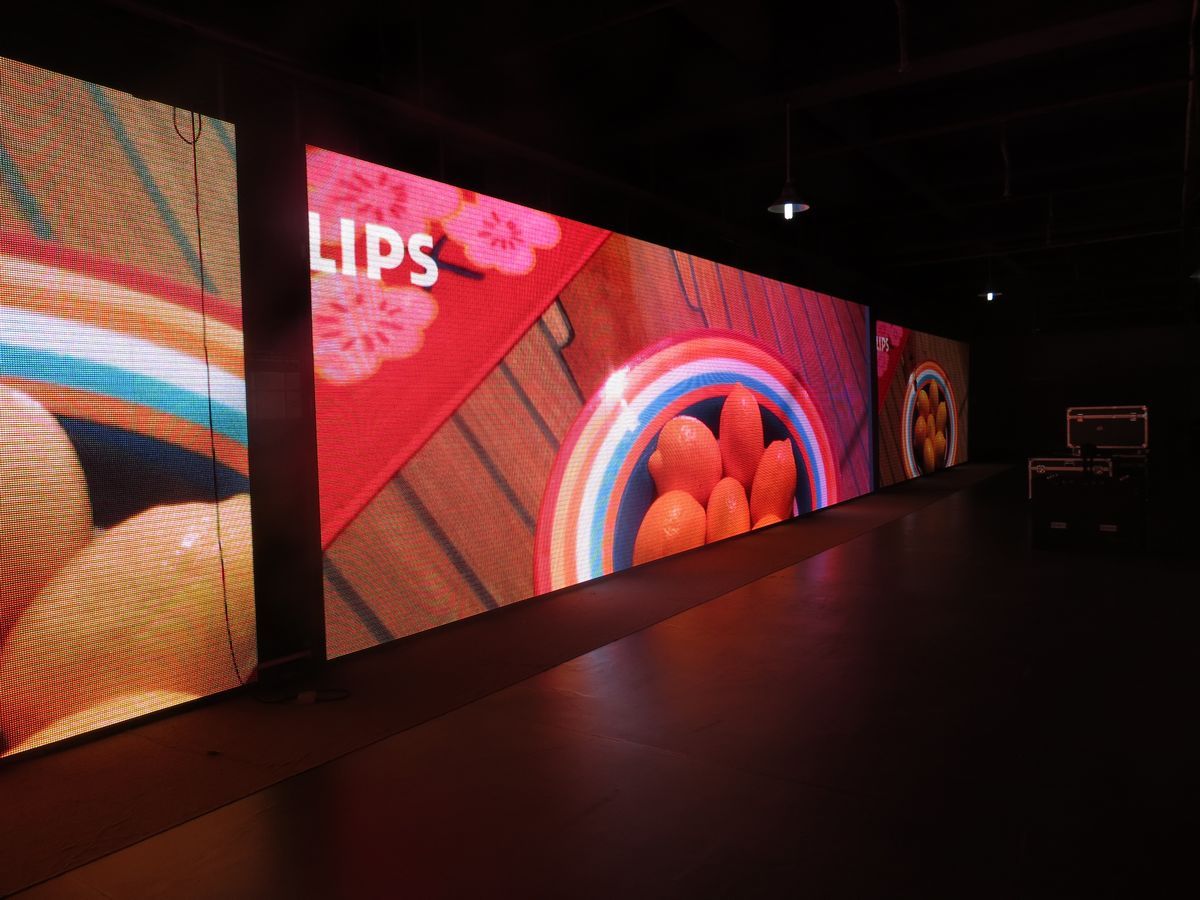

Outdoor LED Display
Noveled Group Ltd is the leading OEM manufacture of LED Display Screens in China. We provide Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and full-color for different markets, such as advertising billboard, stadium LED signs, sports LED signage, rental video display, mobile digital LED display, stage & bar electronic sign, DOT matrix LED display etc.
1. Function and Technology Character
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
| Display and control feature | Structure feature |
| Specification | Parameter | Specification | Parameter |
| Pixel Pitch | 12 mm | Module size | 192 mm*192 mm |
| Pixel composing | 2R1G1B | Display resolution/module | 16 dots*16 dots |
| Wavelength (R) | 625±5 | Standard cabinet size | 960 mm*960 mm |
| Wavelength (G) | 522±3 | Weight per sqm | 65 Kg/sqm |
| Wavelength (B) | 567±3 | Protection classification | IP65 |
| Wave Angle (H) | 120°(H)/ 60° | Install mode | Wallmount, hung and stand structure |
| LED package | DIP 346 | Cabinet Material | Iron/Aluminum |
| Density per sqm | 6944 pixel | Working power |
| Display color | 256*256*256 | Specification | Parameter |
| Whiteness brightness | ≥5000 | Working voltage | AC 220v/380v±10% 47~64Hz |
| Brightness level | 128 grade | Max power/sqm | 700W/sqm |
| Changing frame frequency | 60 Hz | Average power/sqm | 400W/sqm |
| Refresh | 400 Hz | Short circuit protection | Yes |
| Driving method | 1/4 Constant Driving | Led Lamp type | Nichia/Cotco/Cree/Axt/Silan/Taiwan |
| Control mode | synchronous | Working environment |
| Display port | DVI | Specification | Parameter |
| Display mode | 1024*768 /1024*1024 | Environment | Outdoor |
| Out of control | 1/10,000 ( scattered) | Working temperature | --20~50c |
| lifetime | 100,000 hours | Working Humidity | 10~90% |
Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...
With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.
NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
