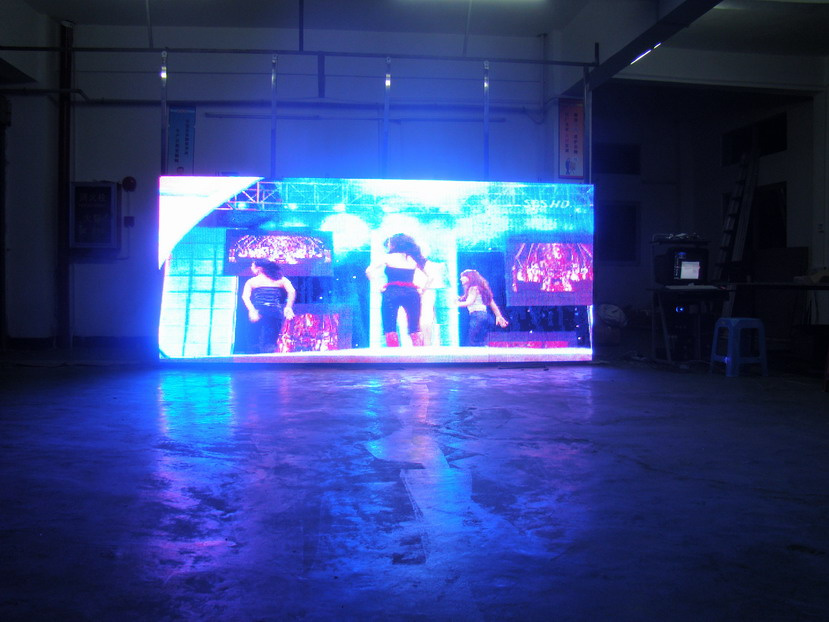

LED Display design for outdoor video advertising use, the important feature for this products is both of waterproof and brightness under sun, our design are IP65 rate for waterproof, each pixels are combination with 2 red, 1 blue, 1 green of LED, the brightness was over 6000CD each s. Q. Meter, it's much more brightness under sun.
Also we provide after-service all over the world such as technology support, installation testing and provide enought spares for change.
For controller system, we use advantage design for video graphic scan, there's big output digital signal to show real color.
LED Display:
Specification: |
Real pixels |
Virtual pixel |
| Pixel pitch | 10mm | 10mm |
| Modules size(mm) | 160 x 160 | 160 x 160 |
| Pixels quantity in s.q.meter | 10000 | 10000 |
| LEDs in pixels | 1R1G1B | 2R1G1B |
| Pixels in each modules | 16 x 16 | 16 x 16 |
| Viewing distance | 15m | 15m |
| Viewing angle | 110/45 | 110/45 |
| consumption | 375 W/m² | 470 W/m² |
| Driving method | 1/8 scan | 1/8 scan |
| Box size(mm) | 960 x 800 | 960 x 800 |
| Pixels quantity each box | 7680 | 7680 |
| Minimum size to show video(mm) | 3840x2400 | 3840x2400 |
| Resolution in minimum size(pixels) | 384 x 240 | 384 x 240 |
| Frequency of frames | 60hz/s |
| Refresh rate | >=400hz/s |
| Temperature | -20~40 |
| Voltage | AC100-220V |
| Grey scale/color | >=16.7M colors(synchronized) |
| Brightness | R / G / B each color 256 gray |
| Life-span | >100000 hours |
| Malfunction dot rate | <0.0001 |
| Operation system | WIN98 / WIN2000 / WINXP |
| Operate Software | XMPlayer |
| Input signal | RF / S-Video / RGB / RGBHV / YUV / YC / COMPOSITION |
| Control system | DBQ-2007 controller + distribution controller + optic fibre transmission(optional) |
Powerpro Lighting Industrial (HK) Limited, it's a outdoor/indoor LED Display screen and LED Video Floor manufacture in SHENZHEN, Guangdong, China, specializing in R & D, manufacture, and sale of LEDs and LED lighting products, till now we have 150 employee is working on factory and their is more and more everyday depend the order coming quickly.
We conduct the operation in conformity to the ISO9001: 2000 Quality Management System-Requirements. The "5M1E" have been being strictly controlled through all processes and sub-processes. The quality principle, "not accept nonconforming products, not produce nonconforming products, and not release nonconforming products", is fully implemented without any compromise.
Regarding our LED experience, till now we have over 100 items of LEDs, with our proprietary automatic die bonder, spectroscopic and auto-sorting, encapsulation & bonding methods, so as to our lowest cost control, most of our products applied to event show, rental, outdoor/indoor LED wall, LED video floor for event show, else.
