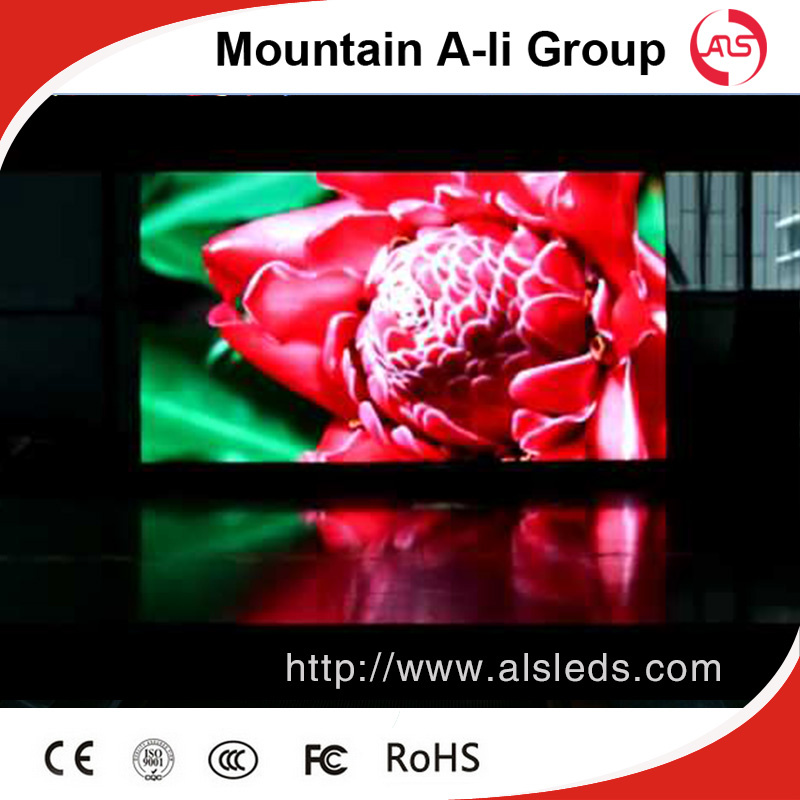

Outdoor LED Billboard P8 LED Display

Outdoor led billboard P8 LED display Features & Technology Specification:

1. Widely application field and short ROI time. Commercial advertising LED display screen, Stadium perimeter LED display screen, mobile trailer LED display, LED screen for mobile media, shopping mall LED display, screen for logo showing, LED display for bank or stock exchange rate showing, LED moving sign for train and bus station, LED display screen for air port, elecommunication LED display screen for information showing and instruction and ect.

2. Clear Vivid image quality displaying. Even in direct and full-on sunlight day to ensure you attract more audience to get short ROI of your LED display screen's investment.

3. Long term brightness. More than 6000 nits brightness for outdoor full color LED display, more than 800 nits brightness for indoor full color LED display capacity throught products lifetime of LED display screen.

4. Easy installation and programming. Easy and simple installation interface, use friendly software to ensure the user programme the LED display screen system.

5. Convenient servicing. Front and rear cabinet access makes maintenance work very convenient and low cost to help you concentrate more time and energy on your main marketing promotion business.

6. The list of availabe models of our LED display/screen/panels/signs. P4mm, P5mm, P6mm, P7.62mm, P10mm, P12mm, P16mm, P20mm, P25mm, and ect.

7:Low energy consumption ,long lifespan , less maintenance performance . No color difference , concentrating well, good veiwing angle . Simply installation , easy to maintain ,easy to use .


Outdoor led billboard P8 LED display  techincal parameters
Unit Module	Item	parameter
	Model	P8 surface mounted module
	Module size	320mm*160mm  /  256mm*128mm
	Pixel Pitch	8mm
	Pixel Density	15625dots/m2
	Pixel Configuration	1R1G1B 3 in 1
	Package mode	SMD2121
	Module Resolution	40dots(W)*20dots(H) / 32dots(W)*16dots(H)
	Max power consumption	25w
	Module Thickness	2.8cm
	Module Weight	0.55kg
	Driving Method	Constant Current Driving
	Scan Method	1/5scan  / 1/4scan
	Interface Way	HUB75B
	Brightness	≥6200cd/m2  /  ≥6500cd/m2
Unit Module	Cabinet size	640mmx 640mm
	Quantity of Module	8
	Power supply Mode	5V/40A  /  5V/60A
	cabinet resolution	80dots *80dots
	Optimal Viewing Distance	8M-50M
	Optimal Viewing angle	160°(W)120°(H)
	Enviroment Temperature	Storage :-35ºC-+85ºC work :-20ºC-+50ºC
Power	Relative Humidity	10%-95%
	Operating Voltage	AC220V±10%
	Average power	400W/H
	Max power Consumption	≤800W/m2
	Current	≤20mA (Single LED )
Control system	CPU	Pentium4 or above P4 or above
	Operate system	WIN98/2000/NT/XP
	Control Mode	Synchronization with PC
Main technical parameter	Driving Device	IC Constant current driving
	Refresh Rate	≥600HZ
	Gray/Color	RGB each 256 grade, can display 16.7M clolor
	MTBF	≥9000hours
	Power Switch	Automatic Switch
	Display Mode	800*600/1024*768/1280*900
Outdoor led billboard P8 LED display

Product Advantages :

1. Price Advantage: Best competitive price of the market.

2. Performance Advantage: Best brightness, High refresh rate, high consistency, big viewing angle etc .

3.Quality advantage: From material to finished product, from design to produce, we control all steps, which are the guarantee of the quality and reliability. we have the strictly 72hours old ageing test to ensure the quality of the products. 2 Years warranty . CE,ROHS,CCC, ISO9001 ,EMC ,FCC certificates .

4. Service advantage: With professional service team for 24 hours service!  Rich advertising  LED display engineering experience both in domestic and oversea market .


Trade terms :	1. Payment:T/T,30% deposits before production,70% balance to be paid before delivery .
	2. Shipping freight are quoted under your requests .
	3. Shipping port: Shenzhen,mainland China .
	4. MOQ:1SQM .
	5.Package : Wooden packing and flight packing .
About Technology :	1. We provide the technology training for free, which contains the operation training and maintenance training at our factory.
	2. We will send our engineers to your country by negotiation.
	3. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
	4. We will send our engineers to your place if we are expected after our negotiation.

OUR COMPANY provides onsite product installation, debugging and maintenance service for our LED display. Such as:

1. After-sales service:

1) Service principles: Reponse in time, solve problems as soon as possible and ensure the use. Top quality+reasonable price+responsible after service=successful & win .

2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges;
After Maintenance period, only charge the material costs fees free of manual work fees.

3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.

4) Under normal use and storage, Our Company will be responsible for the equipments .  Special service for big project, such as stadium, exhibitions, squares and so on .
