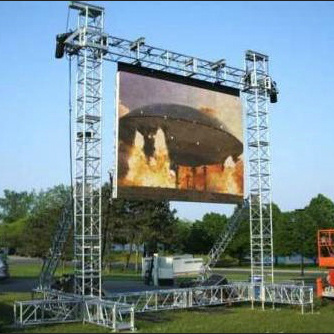

Outdoor LED truss display
High quality standards
Perfect welding technology
Great loading weight
Durable in use
For performances and shows
Material: Aluminum alloy 6061-t6
Size: Square truss 400X400mm
Main tube: 50X3mm
Brace tube: 25X2mm
Length of truss: 1m, 1.5m, 2m and others
Square shape, straight truss
Connection way: Screws
Features: Durable and safe to use, fast to install and remove
Usage: For hanging LED screen, stage lighting and speakers, it is ideal for indoor and outdoor stage show, sporing event, live show, celebration and stage performance.
Other sizes of truss: 200*200mm, 250*250mm, 300*300mm, 400*400mm, 450*450mm, 500*600mm, 520*760mm and so on.
Fast delivery, Best price, High quality, excellent service.
Material Analysis |
Raw material is a precipitation hardening aluminum alloy, containing magnesium and silicon as its major alloying elements. It has good mechanical properties, exhibits good weldability. It also has good effect of Proof Stress, corrosion resistance, and oxidation. |
Chemical Composition |
Element | Present | Present |
| 6061 T6 | 6082 T6 |
Manganese (Mn) | 0.0-0.15 | 0.4-1.00 |
Iron (Fe) | 0.0-0.70 | 0.0-0.50 |
Magnesium (Mg) | 0.80-1.20 | 0.60-1.20 |
Silicon (Si) | 0.40-0.80 | 0.70-1.30 |
Copper (Cu) | 0.15-0.40 | 0.0-0.10 |
Zinc (Zn) | 0.0-0.25 | 0.0-0.20 |
Titanium (Ti) | 0.0-0.15 | 0.0-0.10 |
Chromium (Cr) | 0.04-0.35 | 0.0-0.25 |
Aluminium (Al) | Balance | Balance |
Physical Properties |
Property | Value | Value |
| 6061 T6 | 6082 T6 |
Density | 2.70Kg/m 3 | 2.70Kg/m 3 |
Melting Point | 650ºC | 555ºC |
Thermal Expansion | 23.4x10-6 /K | 24x10-6 /K |
Modulus of Elasticity | 70 Gpa | 70 Gpa |
Thermal Conductivity | 166W/m.K | 180W/m.K |
Electrical Resistivity | 0.040x10-6 Ω .m | 0.038x10-6 Ω .m |
Mechanical Properties |
Property | Value | Value |
| 6061 T6 | 6082 T6 |
Proof Stress | 270MPa | 310MPa |
Tensile Strength | 310MPa | 340MPa |
Elongation | 12% | 11% |
Shear Strength | 190MPa | 210MPa |
Hardness Vickers | 100HV | 100HV |
6082 is similar to 6061 but it has better properties. |
Guangzhou chaoda performance equipment factory is a professional supplier of exhibition truss, speaker truss, steel truss, aluminum alloy truss, truss system, lighting truss, stage truss, light truss tower, glass stage, mobile stage, wedding stage, dance floor and others.
Our products are widely used for theaters, TV studios, concerts, museums, various types of corporate events and all kinds of professional exhibit shows.
Our factory is located in guangzhou which functions as an exporting port and is the hosting city of many international exhibition events like Chinese import & export commodities fair (Canton fair). Guangzhou is also one of the largest and most prosperous cities in China. We have enjoyed convenient transportation and commercial environment since guangzhou is an integrated city for international trade and business and commercial tourism. The new baiyun international airport is 30 kilometers away from our factory.
With high quality products, excellent service and good reputation, we have won great supports from customers and become more powerful. Our company's scale has been expanded. We also offer all kinds of international brand OEM/ODM services. At present, we export products to the Middle East like Israel and south Asia like India. We get many orders from trading companies.
We pursue the management tenet of "quality is superior, service is supreme, and reputation is first". With an annual production capacity of 300, 000 meters and expanding new production lines, we can fill your bulk orders with ease. To ensure quality, we have more than 3 QC members to carry out strict inspection at each stage: Incoming inspection (IQC), in-process inspection (ipqc) and final inspection (fqc).
Currently, we look forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details. We will try our best to serve you and hope to become one of your friends and business partners.
