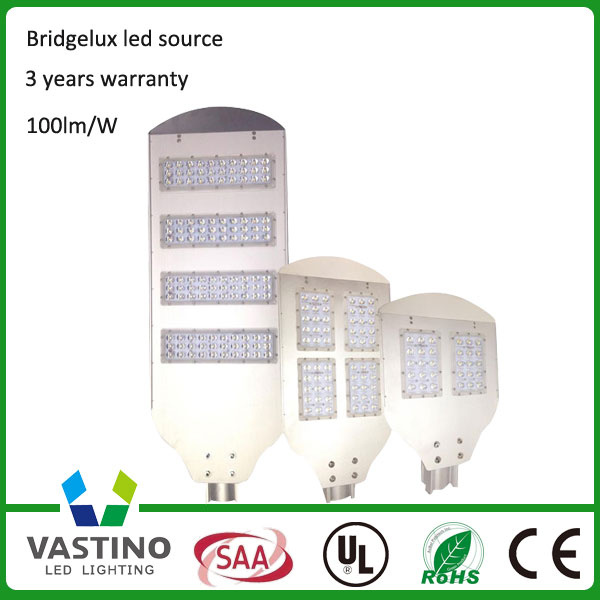

2015 Ultrathin Outdoor IP65 LED Street Light with 3 years warranty
Basic Data:
1. Item no:YSST-003
2. Main materail: Aluminium
3. Certificatie:CE ROHS
4. Lumen:100LM/W
LED:
1.LED Brand:Epistar/Cree/Base on requirement
2.LED type:high power
3.LED Working Volatge:AC100-240V
4.Driver:Meanwell/Philip
Electrical Data:
1.Rated Frequency:50/60Hz
2.Nominal Wattage:30-150W
3.Lamp Efficency:≥89%
4. Power factor: ≥ 0.95
Basic Data:
Model No. | YSST-3028-003 YSST-6048-003 YSST-6048-003 YSST-12048-003 YSST-15058-003 |
Led Qty | 30/60/90/120/150*1w |
Power | 30/60/90/120/150W |
Lumens | 3500lm±10%/30W 7200lm±10%/60W 11500lm±10%/90W 15600lm±10%/120W 19500lm±10%/150W |
Input Voltage | AC100-240V 50-60HZ |
Color Temp. | WW 2800-3000K NW 4000-4500K PW 6000-6500K |
Beam Angle | 90*135° |
Product Feature:
1.Efficiency: High luminous efficiency compared with conventional lamps, can save 60% - 80% of the electricity bill.
2. Lumen: Use single 1W-3W light, no light pollution, with high transmittance PC material lenses.
3.Light failure: directly integrated LED packaging technology completely solve thermal and light fades problem, the single 1-3W lamp beads light more evenly distributed
4.Cooling: Lighting radiator blade structure contact with large air area, accelerating natural air convection cooling effect.
5.Light distribution: unique light distribution design solve eccentric problem LED light for main road lighting.
Electrical Data
CRI | Ra≥65 |
Power Factor | >0.95 |
Material | Aluminum+PC |
Color of Shell | Grey |
IP Grade | IP65 |
Lamp Efficiency | ≥89% |
Adaptable Environment | -20°C to +55°C |
Lamp Working Temp. | ≤65°C |
Product description
1.Efficient integrated light source technology: imported chip package (single 1-3W series), long life, low light failure
2. Efficient cooling material technology: high thermal conductivity and radiator aluminum with jagged structure, larger heat dissipation area and faster heat radiator speed.
3. Average temperature efficient cooling technology: modular cooling, independently of each other, if a single module damage, does not affect use.
4.Heat lamp housing assembly techniques: multiple modules structural bolted together can be flexibly assembled to replace traditional lighting power required
5.Power LED road lighting efficiency, long life, energy saving effect is good, mainly used in fast-track, main roads, secondary roads, factories road lighting, public lighting, garden lighting and other places.
Packing Information:
Lamp Size(mm) | L472*W300*H115 L472*W300*H115 L812*W300*H115 L812*W300*H115 L812*W300*H115 |
Installation Dimension | D65mm |
Net Weight(Kg) | 2.95 4.5 6.7 6.8 7.1 |
Carton/PCS | 1PCS |
Carton Size(mm) | L495*W320*H150 L495*W320*H150 L495*W320*H150 L835*W320*H150 L835*W320*H150 |
Carton Weight(Kg) | 3.9±5% 5.8±5% 5.8±5% 8±5% 9±5% |
Our Service
1.For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own well-trained and passional sales & after sale services who can speak fluent English language
3. We offer OEM services. Can print your own logo on product , can customize the retail box packing and other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM projects
Since 2003 VASTINO LED lighting has been focusing on the R&D, manufacturing and selling of LED lighting products, On May, 2013, VASTINO moved its production base & R&D center from Jiangmen to Shenzhen of Guangdong province and increased its registered capital to 10 million RMB. VASTINO is just embracing a whole-new start for the future development!
Currently, VASTINO'S products are mainly within the area of LED industrial lighting and LED commercial lighting such as LED street lights, LED tunnel lights, LED flood lights, LED high bay lights, LED tubes, LED down lights, LED spot lights, LED bulbs, LED Panels and so on. Except domestically sold in China, VASTINO's LED lighting products have been largely exported to more than 60 countries or regions around the world including many developed economies such as West Europe, North America and Australia. More than 90% of VASTINO's LED lighting products have successfully passed various international certification such as CE, RoHS, SAA and ETL certificates.
VASTINO's factory in Shenzhen covers an area of more than 10, 000 square meters and with more than 200 workers on production lines. Besides its world leading LED encapsulating lines, assembling lines and testing devices, VASTINO also adopts strict and scientific Quality Control mechanism fully conforms to ISO9001, ISO14000 standards.
Under the business philosophy of DICA (Devoted, Innovative, Credible and Altogether wins), VASTINO is aiming to be the top brand of LED Lighting industry both in China and worldwide with its state-of-the-art and green LED lighting products recognized by all the customers around the world.
