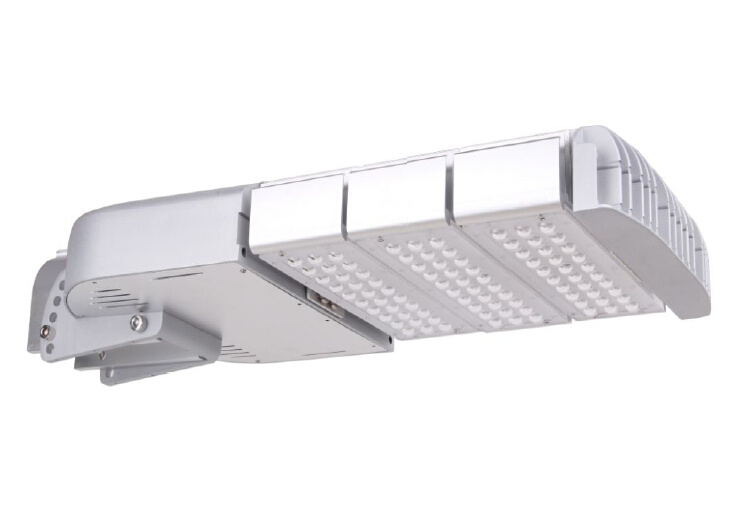

Item: PL-ST90W, 3 Years warranty, Bridgelux chip
Detailed specifications:
1. Input voltage: AC 85-265V/50-60Hz
2. Power factor: >0.98
3. Work Voltage: DC30-36V
4. LED QTY: 90PCS 1W USA BRIDGELUX LEDs
5. Total power: 95W
6. Lamp Efficiency: >95%
7. LED Lumens: Warm white: 8900LM
White: 9000LM
8. Color Temperature:
Warm white 3000-4000K.
White: 5000-7000K
9. Work enviroment: -30 to +50 degree
10. Storage enviroment: 25 to 65 degree
11. Ingress Pretection: IP65
12. Life-Span: >50000hours
13. Sturdy Aluminium Housing.
14. Body size: 581*280*105mm.
15. Certification: CE, RoHS
Feature:
1. High efficiency imported Bridgelux led chip as light source Luminous efficiency: 110-120LM / W;
2. Long lifespan: 50, 000hrs, 25 times more than normal energy-saving lamps, Energy saving up to 70-90%;
3. Great heat dissipation design of integration of heat sink and housing.
4. No hot-radioactive, no mercury, no sodium, no UV radiation and other elements harmful to human health;
5. Beneficial to the environment: LED light for all-solid-body impact resistance is not easy broken, waste recycling, pollution-free can be called the "Green Color illumination light source;
6. Adapt to the environment strong: In the -40 -80 ° C, humidity ≤ 65% of the environment.
7. Realistic lighting effect without light distortion.
8. New high efficency constant current driver. Wide range of input voltage.
Advantage:
1. LED street light through various rigorous testing process to make sure the quality of each led street light.
2. Applied with high quadric optics non-imaging lens to ensure luminaries' efficiency over 95%.
3. Inner high efficiency(95%)heat protection system, with the latest high efficiency and constant currency driver, making the products can work under unstable voltage.
3. Could be equipped with solar power system. DC12V/24V/36V etc.
4. Light body adopt high-pressure cast aluminum, It has some advantage of impact resistance, corrosion resistance and so on.
5. Use of special materials with high thermal conductivity, with special design to increase the area of heat! Ensures air exchange, good cooling effect.
6. Professional circuit design, each LED can work separately, avoid the influence caused by a broken single LED.
Application:
1. Important for urban roads, quick way, highway.
2. School, square, garden, Residential area etc.
3. Solar, wind street light.
| Modle | PL-ST90M-B |
| Input voltage | AC 85-265V |
| Frequency | 50-60Hz |
| Work Voltage | DC30-36V |
| Total power | 95W |
| Lamp Efficiency | > 95% |
| Life-Span | > 50000hours |
| Body size | 581*280*105mm |
