Product Description

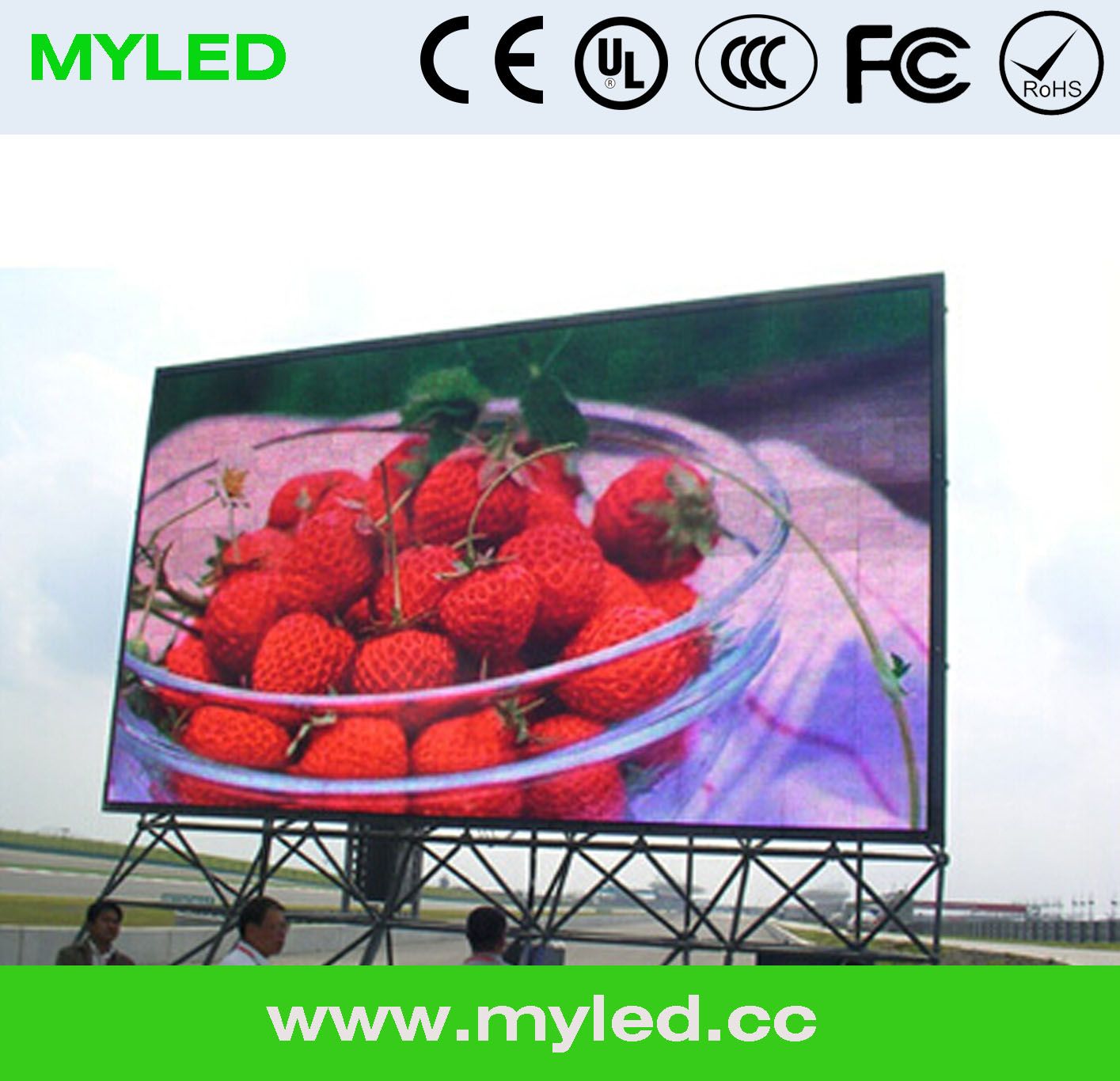

Outdoor High Brightness P10 Full Color LED Display
1. Applications:
Our full color LED display are widely used in commercial advertising, entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.
2. High brightness:
We display support automatically or manually adjust the brightness of the LED display screen.
3. Good LED chip:
High strictly selected LED chips to ensure the long lifetime and high brightness of our LED display system.
4. Clear vivid image quality:
Throughout the show, the picture clear, bright color.
5. Installation is simple, easy to use:
Easy and simple installation interface and user friendly software to ensure that customers use easily.
Outdoor High Brightness P10 Full Color LED Display |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | DIP346 | 1000-1100mcd | 620-625nm | 110º/50º |
| 3 | Green LED | DIP346 | 2000-2200mcd | 520-525nm | 110º/50º |
| 4 | Blue LED | DIP346 | 400-600mcd | 470-475nm | 110º/50º |
| Module Specifications |
| 1 | Pixel Pitch | 10mm |
| 2 | Pixel Configuration | 1R1G1B |
| 3 | Module Resolution | 16 x 16 pixels |
| 4 | Module Pixles | 256 pixels |
| 5 | Module Size | 160mm X 160mm |
| Cabinet Specifications |
| 1 | Cabinet Size(W X H X D) | 960mm x 960mm x 155mm |
| 2 | Cabinet Resolution(dot) | 96 x 96 pixels |
| 3 | Module Quanity (pcs) | 36pcs |
| 4 | Cabinet Pixels | 9216 pixels |
| 5 | Pixel Density | 10000 pixels/m2 |
| 6 | Cabinet Materials | Iron or Aluminum |
| Whole Screen Specifications |
| 1 | Screen Brightness | ≥7500cd/m2 |
| 2 | Driving Method | 1/4 scan |
| 3 | Mini Viewing Distance | 10m |
| 4 | Max. Power Consumption | 750W/m2 |
| 5 | Average Power Consumption | 450W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥600Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Protective Scale | IP65 |
| 17 | Screen Plainness | <±1mm |
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius
Humidity:10%~90% RH |
| 20 | Control Mode | Synchronous display with control PC by DVI |
| 21 | Control System | DVI video card + full color control card + fiber system( optional) |
| 22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 23 | Interface | Standard Ethernet |
| 24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m
|
