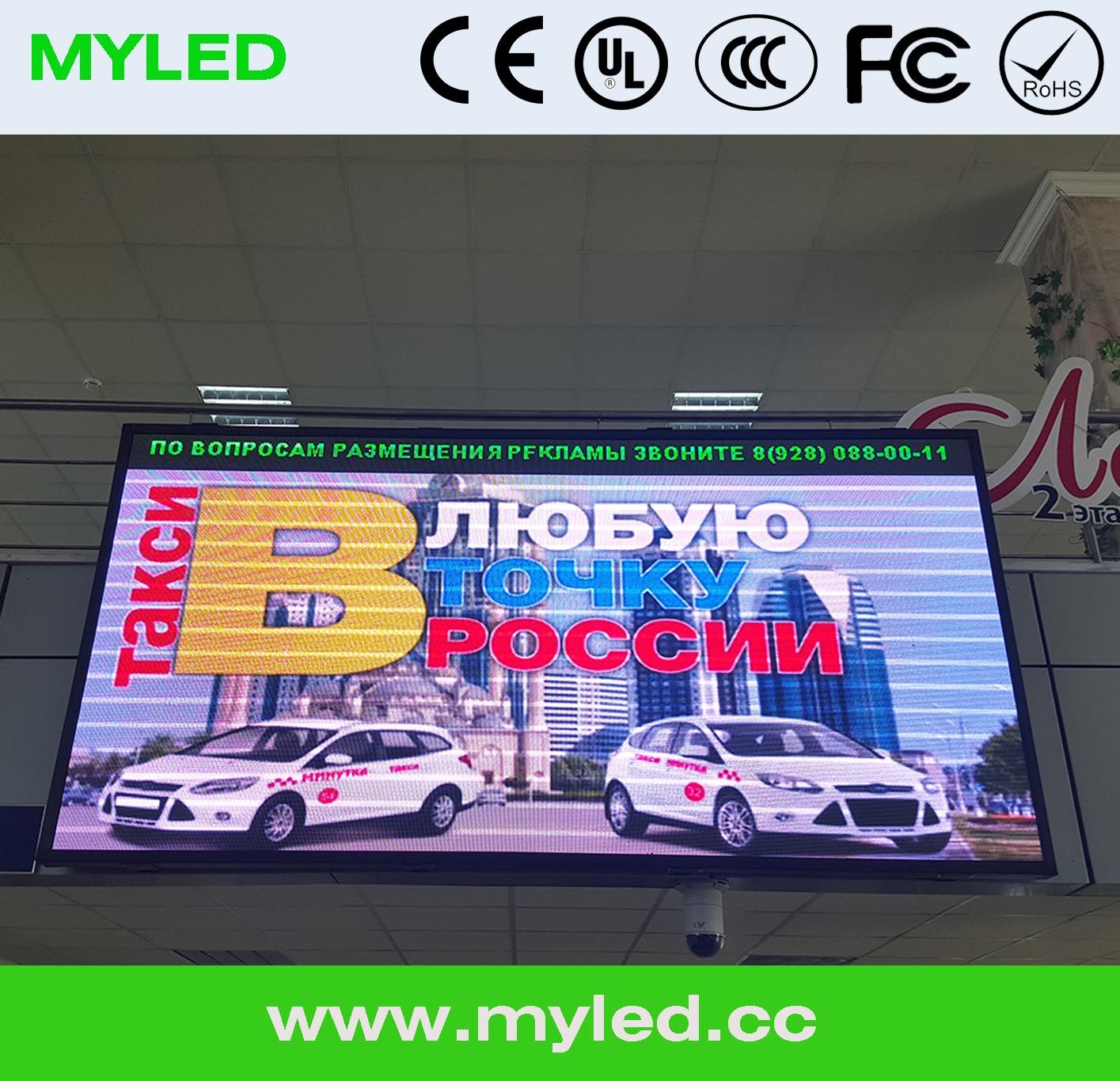

Outdoor Full Color Video LED Display for Advertising Screen

Outdoor Full Color Video LED Display for Advertising Screen
Price: US $ 300/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 1/Square Meter
Pay Type: L/C,T/T,Western Union

Indoor Advertising LED Display LED signs


1. large viewing angle
2. Light weight
3, CE & ROHS & UL&FC  Certificates
4.long lifespan  FOR 100,000 hours

Specification

Resolution: 32(H)×16(V)
Pixel Pitch:10mm
LED configuration: 1R1G1B
Pixel density: 10,000pixels/m²
Module size: 320mm*160mm
Driving IC: MBI5024
Driving method: 1/16 scan,Constant Current
Machanical ratings
Hanging weight support: 2T
surface flatness: Gap≤0.5mm
Optical Ratings
Brightness: ≥1800cd/sq.m
View angle: 150°/150°
Gray scale: 8bits input, correction with 14bits
Power Supply
Operation Power: 90~260V 50~60Hz
Max. Power Consumption: 600W/ m²
Average Power Consumption: 200W/ m²
Control system
Control Mode: Synchronous display with control PC by DVI
Frame Update Frequency: 60~85Hz
Screen Refresh Frequency: 300~1000Hz
Gamma Correction; -5.0~+5.0
Support Input: Composite,S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet cable<120m or Fiber Optic<10Km
Support VGA Mode: 1024×768, 1280×1024, 1600×1200, 1920×1280
Brightness Correction: Pixel, Module, Cabinet
Environmental
Operating Temperature: -20°~+60°
Operating Humidity: 10~95% RH
Operating Life: 100,000hours
MTBF: 5,000hours
Out of Control Rate: <0.02%

Packing and transportation

Environmental carton, plywood case, flight case USE professional packaging.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Stout box eliminate your worries in the transportation.

About MYLED

7-year's experience in LED screen, our factory
has the ability of processing, researching and developing Led display to guarantee the prolificacy, strict quality control process to make sure that our led display is qualified.


Warranty

1. If the size is large, we usually require customers or dealers to send someone to learn for a week, including screen operation, maintenance. Company training and accommodation are free of charge.
2. If the size of outdoor full color led screen is more than 20 square meters , it must have all accessories.
3. Response within 2 hours, non-artificial, general fault is solved within 24 hours, acceptable failure will be solved within 48 hours.

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Apple4s ( 8 Inch): Apple 5s (10 Inch)
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Pitch: 10mm
Pixel Configuration: 1R,1G,1B
Pixel Density: 10,000 dots / m²
Scanning Mode: 1/16 Scan
System Operating Platform: WIN XP
Display Type: LED Video Display
Application: Shopping Guide
IP Rating: IP54
Certification: CCC
Located in Baoan District, Shenzhen Myled Optech is an professional LED display manufacturer which is dedicated to LED display R&D; Production, sales, marketing and one stop solution for customers mainland and international. Myled provides consulting, installation, training and sales services for customers. We always regard customers as the company life line.

Shenzhen Myled Optech focus on indoor and outdoor full color LED display, LED curtain display, mesh, indoor and outdoor single and bicolor LED display manufacturing. We have established business relationship with customers in South America, Euro, and Asia etc. And win a good reputation among customers all over the world. And we provide full solution for Government, Telecom, Hotel, airport, bus station, stadium, and cinema and financial center, etc. Over the past years, we have finished some important LED display project for South American and China Mainland.

Quality is the most important theme for Myled and welcome to contact, and visit our company.

We hold the truth that better quality, better price and better sales services are our company culture.
