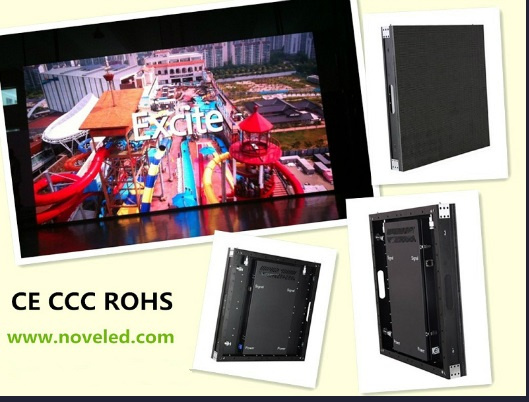

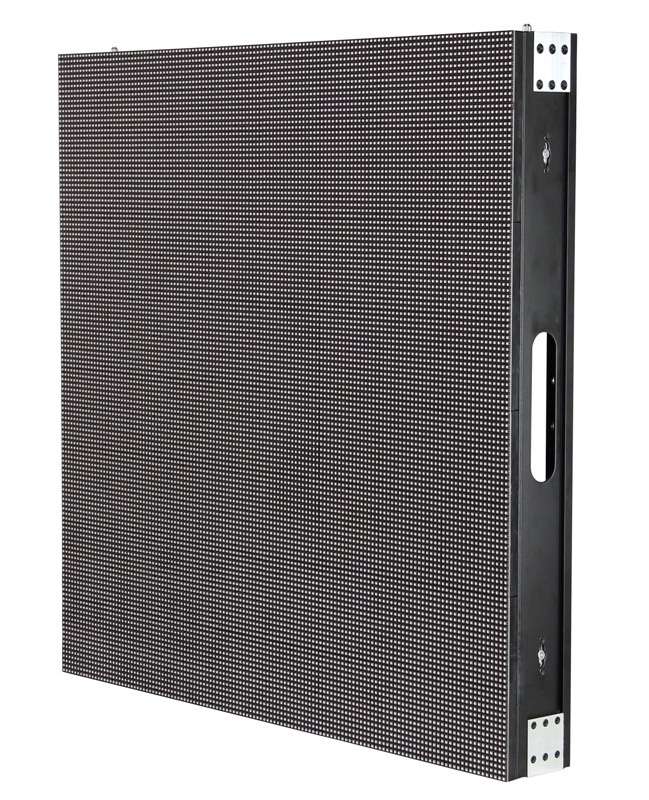

Outdoor Full Color Rental LED Display
| Price: |
US $ 1148-1345/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
Outdoor P10 High Bright Full Color LED Display1. Applications:Our full color LED display are widely used in commercial advertising, entertainment industry, financial industry, communications, power sector, traffic, stadium, plaza, school, airport, bus station etc., for advertising and displaying messages.2. High brightness:We display support automatically or manually adjust the brightness of the LED display screen.3. Good LED chip:High strictly selected LED chips to ensure the long lifetime and high brightness of our LED display system.4. Clear vivid image quality:Throughout the show, the picture clear, bright color.5. Installation is simple, easy to use:Easy and simple installation interface and user friendly software to ensure that customers use easily.
| Outdoor P10 High Bright Full Color LED Display |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | DIP346 | 1000-1100mcd | 620-625nm | 110º/50º |
| 3 | Green LED | DIP346 | 2000-2200mcd | 520-525nm | 110º/50º |
| 4 | Blue LED | DIP346 | 400-600mcd | 470-475nm | 110º/50º |
| Module Specifications |
| 1 | Pixel Pitch | 10mm |
| 2 | Pixel Configuration | 1R1G1B |
| 3 | Module Resolution | 16 x 16 |
| 4 | Module Pixles | 256 |
| 5 | Module Size | 160mm X 160mm |
| Cabinet Specifications |
| 1 | Cabinet Size | 960mm x 960mm |
| 2 | Module Quanity (pcs) | 36pcs |
| 3 | Pixel Density | 10000 dot/m2 |
| 4 | Cabinet Materials | Iron or Aluminum |
| Whole Screen Specifications |
| 1 | Screen Brightness | ≥6500cd/m2 |
| 2 | Driving Method | 1/4 scan |
| 3 | Mini Viewing Distance | 10m |
| 4 | Max. Power Consumption | 1000W/m2 |
| 5 | Average Power Consumption | 600W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥600Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥50,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Protective Scale | IP65 |
| 17 | Screen Plainness | <±1mm |
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 19 | Environment Temperature & Humidity | Temperature:-20 Celsius~+60 Celsius
Humidity:10%~90% RH |
| 20 | Control Mode | Synchronous display with control PC by DVI |
| 21 | Control System | DVI video card + full color control card + fiber system( optional) |
| 22 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 23 | Interface | Standard Ethernet |
| 24 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
| Prod Model: |
P10 Outdoor Full Color Rental LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Module Size: |
320*160 |
| Cabinet Size: |
640*640 |
| Cabinet Material: |
Aluminum |
| Warranty: |
Two Years |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
CCC |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
1/4 Scan |
| Pixel Density: |
10000 dot / m² |
| Average Power Consumption: |
350W / m² |
