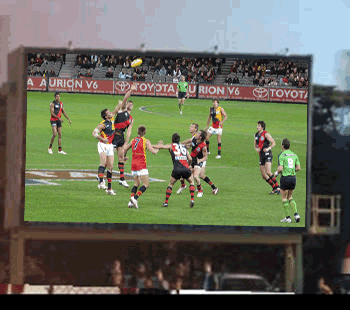

We can supply LED Display, LED Screen, LED Sign, LED Video Display, Full color indoor LED display, Full color outdoor LED dislay. LED Panel, LED billboard, LED advertising display, LED display board, LED display module.
1) We make the whole produce process under the anti-static control, to prevent the harm of static and reduce the rate of burning out. Now the dead DOT rate of our outdoor LED display can be controlled within 1/10, 000.
(2) We use high quality imported silica gel, which have a excellent capability of waterproof, anti-freeze and anti-high temperature etc. Our LED display can be used outdoor in all kinds of weather.
(3) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(4) 1024 grade grey control system and the color is over 10.7 billions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor.
(5) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(6) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(7) We provide installation structure drawing to customer according to their application environment such as upright pole installation, wallmounted etc.
|
Specification |
Parameter |
|
Pixel Pitch |
18 mm |
|
Pixel composing |
2R1G1B |
|
Density per sqm |
3086 pixel |
|
LED package |
DIP 546 |
|
Wavelength(R) |
625~630nm |
|
Wavelength(G) |
525~530nm |
|
Wavelength(B) |
470~475nm |
|
Led Lamp type |
Nichia/Cotco-Cree/Silan |
|
Module size |
288mm*144mm |
|
Display resolution/module |
16 dots*8 dots |
|
Standard cabinet size |
1152*864 mm |
|
Weight per sqm |
56Kg/sqm |
|
Protection classification |
IP65 |
|
Wave Angle (H) |
140° (H)/ 60° |
|
Display color |
256*256*256 |
|
Whiteness brightness |
≥ 6500 |
|
Changing frame frequency |
60 Hz |
|
Refresh |
400 Hz |
|
Driving method |
Constant Static |
|
Control way |
Real or Virtual Pixel |
|
Max power/sqm |
900W/sqm |
|
Average power/sqm |
360W/sqm |
|
Working voltage |
AC 220± 10%50Hz or AC 110± 10%60Hz |
|
Short circuit protection |
Yes |
|
Working temperature |
-20~50 centigrade |
|
Working Humidity |
10~90% |
|
Out of control |
1/10, 000 ( scattered) |
|
Lifetime |
100, 000 hours |
|
Environment |
Outdoor |
|
Install mode |
Wallmount, upright post |
|
Control mode |
Synchronous |
|
Display port |
DVI |
|
Display mode |
1024*768 /1024*1024 |
Shenzhen Tricolor Technology co., Ltd. is an integrated service supplier, which is specializing in the R&D, production and market of LED display screen. We specialize in one-stop service on solution offer, design, product manufacture, installation and after sale service that satisfy customer on various demands. Now Tricolor covers the solutions with LED Curtain Solution, Rental LED Screen Solution, Permanent Installation LED Screen Solution, Perimeter LED Screen Solution. We do our best to serve quality market customer all the time.
Tricolor is founded by a team with skilled and experienced technicians, who will dedicate themselves to research and provide complete LED display system solution; Tricolor promotes the environment protection and energy saving with technology. We would like to offer the most reasonable solution for the users by all-dimensional technology integration of electronics, optics, structure, system performance, and easy operation and product reliability.
Tricolor consider product quality as company life, we take serial reliable tests in each process from the initial production until finished product. The tests cover all important performances, including flatness, power consumption, brightness, color, shock resistance; IP rating and so on, we will adopt the most strict quality control system to guarantee products with best quality.
