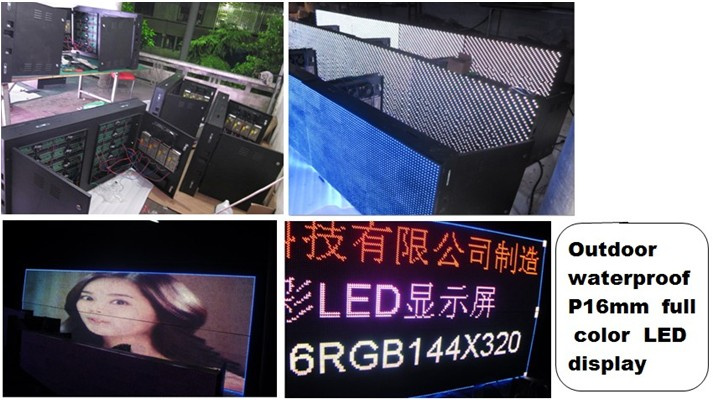

Outdoor full color LED display (P16mm 2R1G1B) features / functions as follows:
1. Model No.: CCOP16RGB144x320
2. Color: Full color
3. Usage: Outdoor, waterproof and dustproof and shockproof, IP65
4. Pixel pitch: 16 mm
5. Best viewing distance: Within 200 meters
6. Viewing angle(H/V): 120/50
7. Power supply: 380V AC, 3 phase power supply
8. Power consumption: 700W average / square meter
9. Current: Constant current, 20mA
10. Brightness: More than 7500CD per square meter, super high bright, suitable for viewing in outdoor strong sunshine, can be adjusted in software manually or by light sensor automatically
11. LED type: Red: 12X12 Mil, green and blue: 13X13 Mil
12. Scan mode: Static scan
13. Level (Grey) scale: 4096, Display colors: 16777216 colors (256 red × 256 green × 256 blue)
14. Scan frequency: ≥ 180 frames/ second
15. Refresh frequency: ≥ 540Hz
16. Defect rate: ≤ 0.00001
17. Temperature-operating: -45~+60 centigrade degrees
18. Humidity-operating: 10% ~ 98% HR
19. Driving type: Driving board and lamp board are syncretic
20. DOT matrix( total screen resolution): 144(height) x 320(length) dots
21. Visual display area: 2304 (H) X 5120(L) mm = 11.8 square meters
22. Cabinet size: 5120(L) x 2304(H) x 160(D) mm
23. Outside cabinet material: Galvanized steel case, black color
24. Waterproof grade: IP65
25. Ventilation: Cooling Fans (Included)
26. Screen N. W.: 50KG/ sq. M. X 11.8 sq. M. = 590KG
27. Display functions:
1) video file(AVI, MOV, fls, MP4, MP3 etc. ), can connect sound equipment to the display, so when the display shows video it has voice 2) animation applet, GIF, pre-define message etc. 3) picture, graphics, text (can display all international characters such as Arabic, English, Chinese, Japanese, Spanish, Latin, Hebrew etc. ), table 4) various real-time data(e. G. Time, temperature, date)
28. Control / communication way: TCP/IP cable via computer. Or wireless TCP/IP (strongly recommended, wireless distance is 50 meters)
29. PC support system: Windows XP
30. Installation ways: Wall mounting, with brackets at the backside of cabinet
31. Maintenance access: Backside access
32. Warranty: 3 years
33. Switching power supply brand: Taiwan Mean Well
34. Delivery time: 25 days
35. Packing(one piece): The screen will be cut to be 12 PCS of cabinets, each cabinet is 48X80 pixels. Each cabinet to be put in one wooden box (133X81.5X24CM = 0.26CBM, 60.5KG), and box 13 is for putting the all spare parts. Total is 756KG, 3.22CBM
36. Unit Price: 950 USD/ unit (for one unit), FOB Shanghai
37. Shipping cost: Please tell me your address so that I check it
