Mountain A-Li LED display screen
Company Intruduction
Shenzhen Mountain A-Li Electronics Company was founded in 2000, with a registered capital of 15 million Yuan, a workshop covering an area of 10000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.

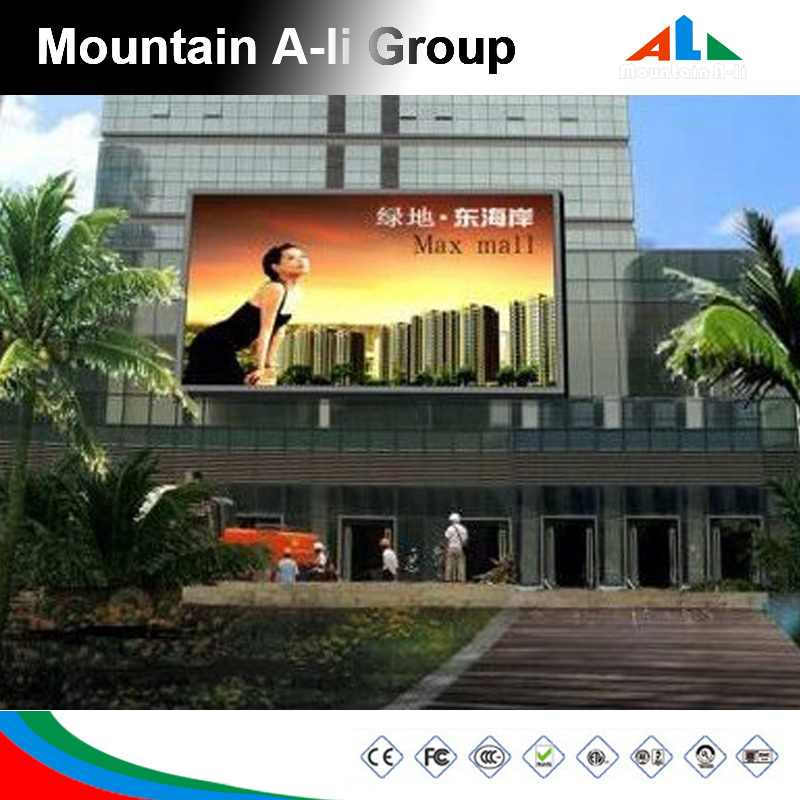

Mountain A-Li P16mm Advertising Outdoor LED Display screen.
Our outdoor full color Advertising LED display screen has following features:
1. Full color by filling the whole of imported silica gel, which makes our led display screen in water, antifreeze, superior high-temperature side.
2. After a dustproof and waterproof tested to reach its target IP65, so the outdoor led display screen of Mountain A-Li is widely used in advertising.
3. All led display screen modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.
4. The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the box. Plesse do not squeeze the entire led screen which ensure good surface smoothness.
5. Measured by the Shenzhen Institute of Quality Inspection Bureau U. S. Core companies of the outdoor full color display screen for temperature impact test, the results showed that: Outdoor full color display can use the power normally under the temperature at -40 ° C to +75 ° C.
6. Mountain A-Li full color outdoor led display screen is widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Mountain A-Li can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: wooden case package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
6. Delivery time: 3-12 working days
Production: LED Display /led display screen/led sign/LED video wall1). Model No.:P2mm, P3mm, P4mm, P5mm,P6mm, P7.62mm, P8 P10m, P12mm, P16mm, P20mm.
2). Display Color: 256*256*256
3). LED Chips: Opto, Epistar, Silan, Huacan, Sanan
4). Raw Materials: Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5). Cabinet: Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6). Package: Flight case, wooden box package & carton box and so on.
7). Guarantee:2 year

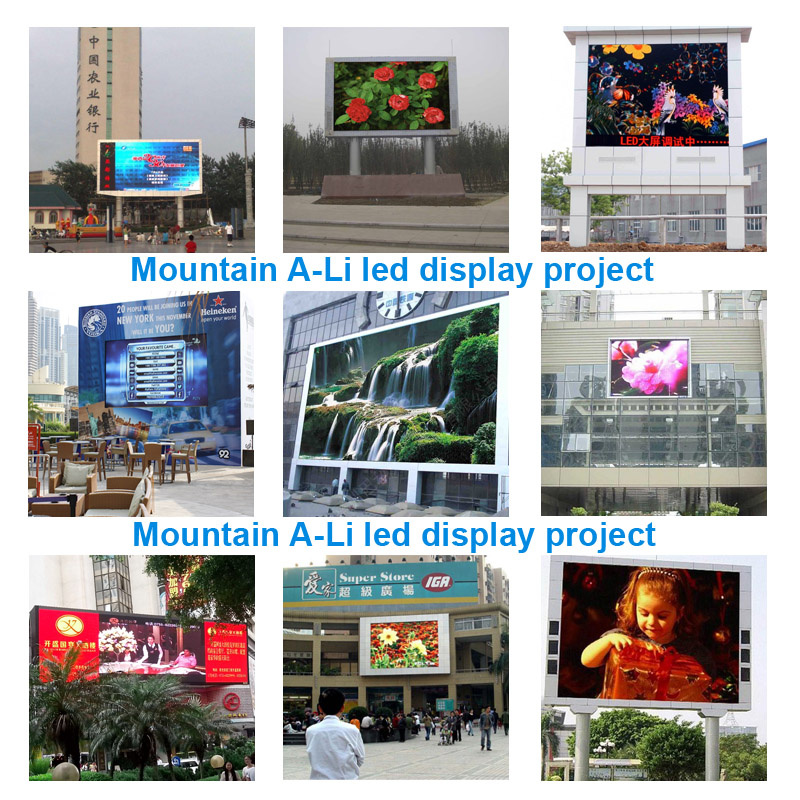

Projector cases:
Workshop:
|
P16 OUTDOOR LED DISPLAY SPECIFICATION |
|
The specifications of modules |
|
Items |
Parameter |
|
Product Model |
P16 Full Color Led Module |
|
Module size |
256mm*256mm |
|
Pixel pitch |
10mm |
|
Pixel density |
3092dots/m2 |
|
Pixel configuration |
1R1G1B |
|
Module resolution |
16dots(W)*16dots |
|
Module maximum power consumption |
35W |
|
Module Thickness |
33CM |
|
Module Weight |
1kg |
|
Driving method |
Constant Current Driving |
|
Scanning method |
Static Scanning |
|
Interface |
HU40 |
|
Brightness |
≥7500cd/m2 |
|
The specifications of cabinets |
|
Cabinet size |
1024mm*1024mm |
|
Module quantity |
16pcs |
|
Power supply |
5V/40A 5V/60A |
|
Cabinet resolution |
64*64dots |
|
Optimal viewing distance |
10M ~ 50M |
|
Optimal viewing angle |
160°(W) 120°(H) |
|
RHWorking temperature |
(Work :-40 degree~ +70 degree ) |
|
System operating humility |
10%-95% |
|
The specifications of power supplier |
|
Operating Voltage |
AC220V±10% |
|
Average power consumption |
350W/H |
|
Maximum power consumption |
≤800W/ m2 |
|
Electric current |
≤20mA(single LED) |
|
The specifications of control card |
|
Control Panels |
Pentium4 or above |
|
Operating system |
WIN98/2000/NT/XP |
|
Control model |
Synchronization with PC |
|
The specifications of the main technical parameters |
|
Driving device |
Constant Current Driving |
|
Refresh rate |
≥2200HZ |
|
Grey scale |
RGB Each 256, can display 16.7M colors) |
|
MTBF |
≥9000hours |
|
Power switch |
Automatic Switch |
|
Display Mode |
800*600/1024*768/1280*900 |
|
|
|
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
