Product name:LED P-10
Pixel Pitch:10mm(P10)
Size:1000X2000mm

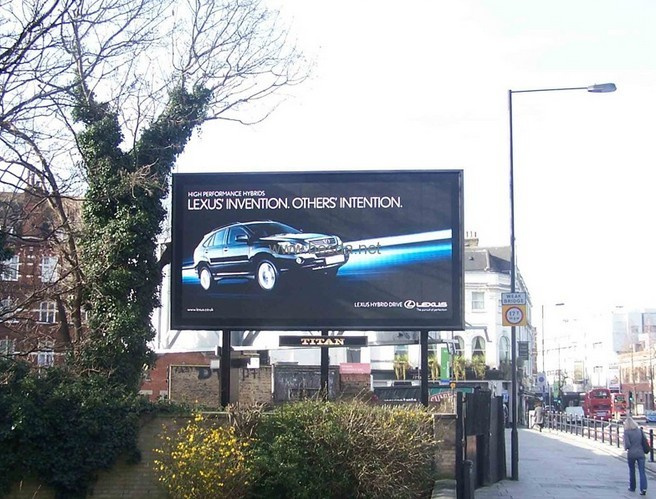

Outdoor Full Color LED Display
Feature:
1.High intensity and can be adjusted, so can meet the request of the customers according
The application environment.
2.Best equality, commendably solve the problem of the mosaic, have the excellent
Consistency of light
3.To pictures and character, have clear, exquisite and real display effect
4.Big viewing angle to 140 degree at horizontal line, 140 degree at vertical line,
You can see at every angle at this range, no picture change, no color excursion
5.Can repair each LED lamps, so the cost of maintain is lower, and easy to repair.
Display and Control Feature
Structure Feature
Specification
Parameter
Specification
Parameter
Pixel Pitch
12 mm
Module size
192mm*192mm
Pixel composing
1R1G1B
Display resolution/module
16 dots*16 dots
Wavelength (R)
625±5
Standard cabinet size
960mm*960mm
Wavelength (G)
522±3
Weight per sqm
45 Kg/sqm
Wavelength (B)
567±3
Protection classification
---
Wave Angle (H)
140°(H)/140°(V)
Install mode
Wallmount, hung and stand structure
LED package
SMD 5050
SMD Type
SMD 3in1
Density
6944DOT/
Working Power
Display color
256*256*256
Specification
Parameter
Whiteness brightness
≥1100CD
Working voltage
AC 220V/380V±10% 47~64Hz
Brightness level
100 grade
Max power/sqm
550W/sqm
Changing frame frequency
60 Hz
Average power/sqm
300W/sqm
Refresh
300 Hz
Short circuit protection
Yes
Driving method
Constant driving 1/4
Control mode
Synchronous
Working Environment
Display port
DVI
Specification
Parameter
Display mode
1024*768 1024*1024
Environment
Outdoor
Out of control
1/10, 000 ( scattered)
Working temperature
--20~50°C
Lifetime
100, 000 hours
Working Humidity
10~90%
Application:
1) Full color LED display:Equally or compactly make the red, green, blue color in one DOT,
Equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace,
Telecommunication, department, school, monitor, restaurant, entertainment
