Home LED Light Products Outdoor Flexible LED Display P80mm (LS-OFD-P80)

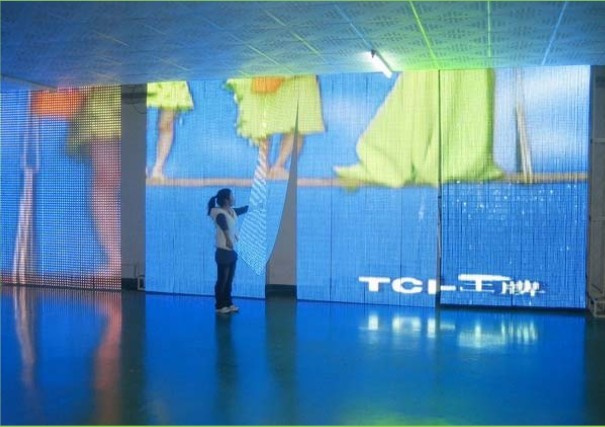

Outdoor Flexible LED Display P80mm (LS-OFD-P80)

Outdoor Flexible LED Display P80mm (LS-OFD-P80)
Price: Negotiable/Piece
Trade Terms: FOB
Min Order: 1/Square Meter
Pay Type: T/T
Features of the flexible curtain LED Display:
1. Light weight: Less than 3.5kg per sqm.
2. Easy remove: More than 20sqm can be packing by only one flight case.
3. Easy install: Just hang panel like you hang curtain. You can install 100sqm within 2hours, and remove It within 2hours.
4. High protection grade: IP 65, can be use for both indoor and outdoor.
5. Application flexible: Assembly to different stage background modeling as you can image, give fresh, amazing feelings to your audience.

LEDSolution LED Display:
ParameterUnitValue
Pitchmm80
Brightnessnits400
Color temperaturedeg. K6, 500
Viewing angle – Horizontal (50% brightness)deg.140(-70 ~ +70)
Viewing angle – Vertical (50% brightness)deg.140(-70 ~ +70)
Panel weightkg6.2
Panel widthmm960
Panel heightmm8, 000
Panel depthmm10
Panel areasq. m.7.68
Operating temperature rangedeg. C-30 to +60
Humidity operatingRH10% ~ 90%
Pixel type and configurationR/G/B5050 SMD
Resolution per panel
12x100
Dot per panel
1, 200
Dot per sq. meter
156
LED per sq. meter
156
Recommended minimum viewing distancem60
Recommended best viewing distancem80~240
Colors
1, 073.7 million
Grey scale (linear)Levels1, 024 levels per color
Brightness controlLevels100
Contrast ratio
1, 000: 1
Processing depthbit16
Video frame rateHertz60
Display refresh rateHertz180~3, 000
Input voltage (nominal)VAC110 to 240
Input power frequencyHertz50 to 60
Input power (max)Watts/m260
Input power (typical)Watts/m224
Lifetime (50% brightness)Hours≥ 100, 000
Red wavelength (dominant)nm620~625
Green wavelength (dominant)nm525~530
Blue wavelength (dominant)nm470~475
Multimedia data format
DVI, MPG, AVI, WMV, RM etc.
Data interconnection
UTP Cat 5/Optical Fiber
Mounting system
Hanging

Prod Model: LS-OFD-P80
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness: 400nits
Viewing Angle: 140/140
Panel Weight: 6.2kg
Panel Width: 960mm
Panel Height: 8,000mm
Panel Depth: 10mm
Resolution Per Panel: 12X100
Mounting System: Hanging
Tube Chip Color: Full Color
IP Rating: IP65
Display Function: Video Display
Display Type: LED Video Display
Application: Advertising
Certification: ETL
Pixel Pitch: 80mm
Pixel Configuration: 5050 SMD
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
