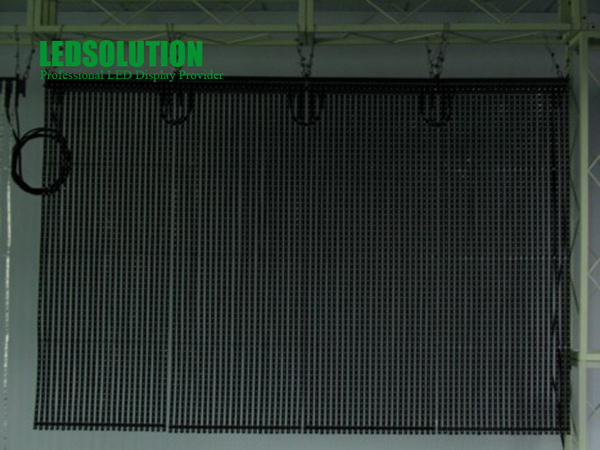

Outdoor Flexible LED Display (LS-OFD-P20H)
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
T/T |
Portable Flexible LED Video Curtain Display for Mobile Advertisement and Exhibition, Esnek LED ekran, Flessibile schermo LED
Features of the flexible curtain LED display:
1. Light weight: Less than 3.5kg per sqm.
2. Easy remove: More than 20sqm can be packing by only one flight case.
3. Easy install: Just hang panel like you hang curtain. You can install 100sqm within 2hours, and remove It within 2hours.
4. High protection grade: IP 65, can be use for both indoor and outdoor.
LEDSolution LED Display:
| Parameter | Unit | Value |
| Pitch | mm | 20 |
| Brightness | nits | 5, 600 |
| Color temperature | deg. K | 6, 500 |
| Viewing angle – Horizontal (50% brightness) | deg. | 140(-70 ~ +70) |
| Viewing angle – Vertical (50% brightness) | deg. | 140(-70 ~ +70) |
| Panel weight | kg | 1.6 |
| Panel width | mm | 480 |
| Panel height | mm | 1, 280 |
| Panel depth | mm | 10 |
| Panel area | sq. m. | 0.6144 |
| Operating temperature range | deg. C | -30 to +60 |
| Humidity operating | RH | 10% ~ 90% |
| Pixel type and configuration | R/G/B | 5050 SMD |
| Resolution per panel |
| 24x64 |
| Dot per panel |
| 1, 536 |
| Dot per sq. meter |
| 2, 500 |
| LED per sq. meter |
| 2, 500 |
| Recommended minimum viewing distance | m | 15.2 |
| Recommended best viewing distance | m | 16~48 |
| Colors |
| 1, 073.7 million |
| Grey scale (linear) | Levels | 1, 024 levels per color |
| Brightness control | Levels | 100 |
| Contrast ratio |
| 1, 000: 1 |
| Processing depth | bit | 16 |
| Video frame rate | Hertz | 60 |
| Display refresh rate | Hertz | 180~3, 000 |
| Input voltage (nominal) | VAC | 110 to 240 |
| Input power frequency | Hertz | 50 to 60 |
| Input power (max) | Watts/m2 | 750 |
| Input power (typical) | Watts/m2 | 300 |
| Lifetime (50% brightness) | Hours | ≥ 100, 000 |
| Red wavelength (dominant) | nm | 620~625 |
| Green wavelength (dominant) | nm | 525~530 |
| Blue wavelength (dominant) | nm | 470~475 |
| Multimedia data format |
| DVI, MPG, AVI, WMV, RM etc. |
| Data interconnection |
| UTP Cat 5/Optical Fiber |
| Mounting system |
| Hanging |
| Prod Model: |
LS-OFD-P20H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brightness: |
5,600nits |
| Panel Weight: |
1.6kg |
| Panel Width: |
480mm |
| Panel Height: |
1,280mm |
| Panel Depth: |
10mm |
| Resolution Per Panel: |
24X64 |
| Mounting System: |
Hanging |
| Display Type: |
LED Video Display |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
20mm |
| Display Function: |
Video Display |
| Application: |
Advertising |
| Scanning Mode: |
1/4 Scan |
| Average Power Consumption: |
300W / m² |
| Pixel Configuration: |
SMD |
| Pixel Density: |
2500DOT/M&Sup2 |
