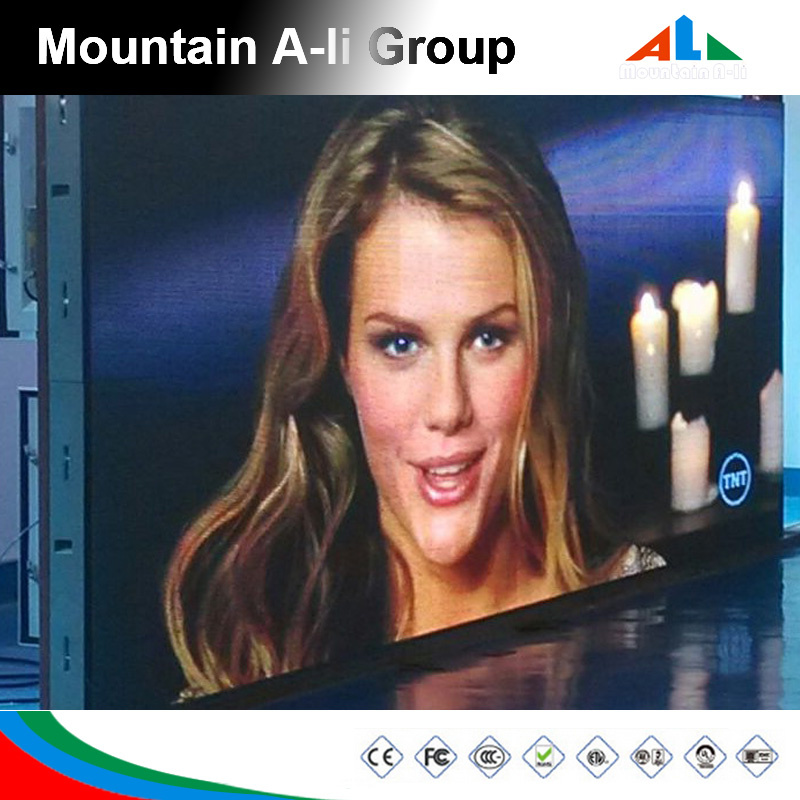

Outdoor Advertising Screen P16 Waterproof Led Display Outdoor
Advantages of dual-maintenance module display:
There are no screws between module and cabinet, which can be easier to disassemble and install, it only cost a few seconds to disassemble.
The power lines can be directly disassembled, and there are no screw to fasten that makes a high work efficiency.
Space saving, the traditional display need enough space for easy maintenance in the later period. But, now, the new one has space saving advantage.
Front or rear maintenance option
Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost.
Energy Saving≥50%, Environment Protection
Adopt top high brightness with low power consumption LED lamp,energy saving≥30%, if adopt 28 kinds of main patent technique, entire energy saving ≥50%, environment protection.
Pioneer in outdoor mature HD LED Display, all advanced specifications 2 years earlier than others, successful cases around the world.
Free Back Service Path, Excellent Display Effect
Adopt dual service of black kingkong series among core techniques, free back service path for all kinds of installation surroundings.
Broadcast level color scale, color temperature and brightness adjustable intelligentizedly, smooth color, high color ratio, nature pictures.
IP65, Fast Installation and Maintenance
IP65 for modules, meets outdoor naked installtion requirements.
Design based on module, which saves installation and maintenance cost, fast speed, maintenance with power on.
Firm, Flat and Backup Solution
Dark black surface,firm and flat, anti-UV module parts, which gurantees screen in firm shape.
Power supplier and control system, backup solution is available to gurantee.
Camera optional, Lan cable, 3G, WIFI, Multi-control, ethernet for data trasmittance options.
Application places
Ideal for outdoor advertisement media, government & enterprise project culture & tourism, sports, propaganda image, commercial real estate.
Package Parameters:
Gross Weight: 113kg (Estimated data,2pcs /Case)
Packing Material :Carton+Pearl cotton +wooden pallet
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 2 years
6. Delivery time: 3-12 working days
| Product Model | P16 Full Color Led Module |
| Module size | 256mm*256mm |
| Pixel pitch | 16mm |
| Pixel density | 3906dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 16dots(W)*16dots |
| Module maximum power consumption | 35W |
| Module Thickness | 33CM |
| Cabinet size | 1024mm*1024mm |
| Module Weight | 1kg |
| Driving method | Constant Current Driving |
| Scanning method | Static Scanning |
| Interface | HU40 |
| Brightness | 8000cd/m2 |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 64*64dots |
| Optimal viewing distance | 10M~120M |
| Optimal viewing angle | 160°(W) 120°(H) |
| Average power consumption | 350W/H |
| Maximum power consumption | 800W/m2 |
| Driving device | Constant Current Driving |
| Refresh rate | 600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | 9000hours |
Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
