Products function introduction:
1. High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3. To pictures and character, have clear, exquisite and real display effect
4. Big viewing angle to 160 degree at horizontal line, 120 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5. Can repair each LED lamps, so the cost of maintain is lower, and easy to repair.

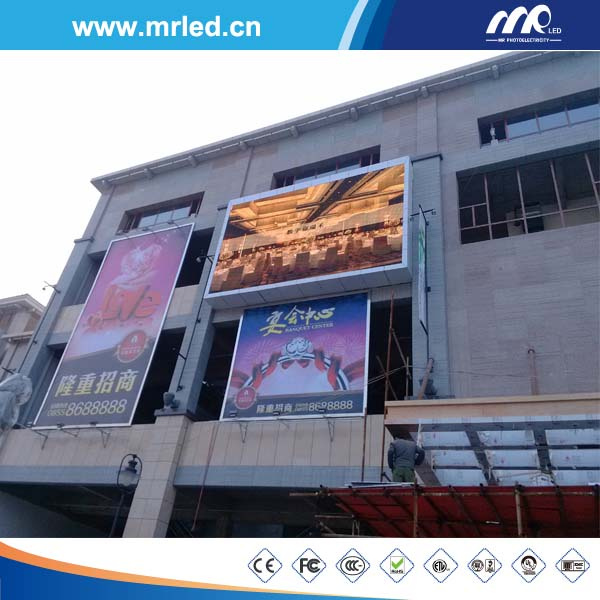

pH16 outdoor LED display
16bit gray level
Can display 281 trillion colors
1. Pixel
Pixel pitch: 16 mm
Pixel density: 3906 dots / sq. M.
Pixel configuration: 2R1G1B
LED specification: DIP546
2. Module
Module matrix (pixel dots): 16*8
Module size: 256*128 mm
Module power consumption: 35W
3. Cabinet
Cabinet matrix (pixel dots): 64*48
Cabinet size: 1024*768*120mm
Cabinet pixel density: 3072 dots
Protection level: IP65
Cabinet weight: 60kg
4. Main technical parameter
Best viewing distance: 14m
Best viewing angle: 110° (horizontal)
Max power consumption: 1000W / sq. M.
Control mode: Synchronization
Graphics card: DVI Graphics card
Drive mode: Static constant current drive
Exchange frame rate: ≥ 60Hz
Refresh rate: ≥ 1200Hz
Grey grade: 65536 grade
White balance brightness: ≥ 6500CD/sq. M
Working environment temperature: -20-50
Working voltage: AC100V-240V, 50-60Hz
Brightness adjusted way: Manual, 256 level; Auto, 8 level.
MTBF: ≥ 10, 000 hours
Screen lifetime: 100 thousand hours
Blind DOT rate: 0.0003
Computer operating system: WIN98, WINXP, WIN2000, etc.
Video signal: RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control system: DVI Graphics card + sending card + receiving card
PC display mode: 1024*768
5. With CE, RoHS, FCC Certification, ISO 9002
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.
Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.
Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
