Home LED Light Products Outdoor 120W LED High Bay Lighting, High Bay LED Light 120W

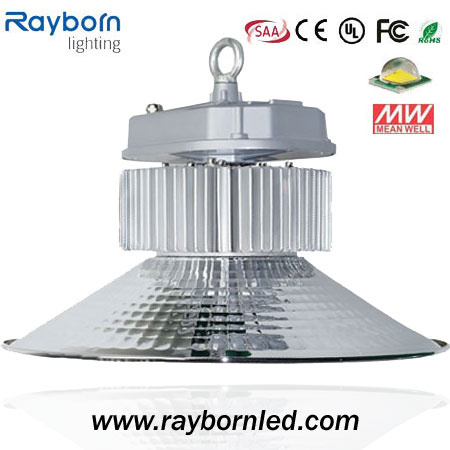

Outdoor 120W LED High Bay Lighting, High Bay LED Light 120W

Outdoor 120W LED High Bay Lighting, High Bay LED Light 120W
Price: US $ 80/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 5/Piece
Pay Type: L/C,T/T,Paypal,Western Union
outdoor 120w led high bay lighting,high bay led light 120w
120W LED Industrial Light Main Technical Parameters
Item No.:RB-HB-415-120W
Input Voltage:AC 100~240V
Freqency Range:50Hz~60Hz
Led Chip:Bridgelux 45 mil
Power Factor:>0.97
Power Efficiency:>90%
LED Power120W
LED QTY:1pc*120W
LED Working Voltage:DC 30~36V
System Consumption:126 W
LED Luminous FluxWarm White10200LM
Pure White12500LM
Cool White12500LM
Viewing Angle:45degree
Center IlluminanceHeight 3M1021LUX
Height 4M574LUX
Height 5M367LUX
Illuminance AreaHeight 3MDia.2.6 M  points visible
Height 4MDia.3.4 M points visible
Height 5MDia.4.2 M points visible
Illuminance Uniformity:>0.6
Color TemperatureWarm White2700K~3500K
Pure White5000K~5500K
Cool White6000K~7000K
Color Rendering IndexRa>78
Light Distribution:LED points visible
Light Design:LED+
LED Junction Temperature:≤115degree
Working Temperature:-40degree~50degree
IP Grade:IP54
Working Life-span:50000 H
Power Line:1.0 mm three line
Connect WireBrownL
BlueN
Yellow / GreenG
The color of the lamp shellsilver is available
CertificateCE /ROHS/SAA
Net Weight:8.5g


Led High bay light Features:

1. Using single powerful LED(30-250W)as the light source, with unique lighting design of Multi- chip integrated single-module; Select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.

2. High bay lighting Unique heat sink design perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.

3. High bay led The heat sink surface have conducted anodic oxidation anticorrosive process, with compact structure and aesthetic appearance, water proof and dust proof.

4. High bay light Adopted advanced constant current controlling techniques, wide voltage range available and global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution.

5. High color rendering, meet the requirement of different environment, improve working efficiency.

6. Easy installation and demolition, wide range of application. Environment-friendly, no air pollution, no lead-free, no-mercury

Applications:

Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.

High Bay Light Competitive Advantage:

1. CE & RoHS & TUV UL approved, Quality Guaranteed

2. Imported original Cree & Bridgelux & Epistar chip, superior light source

3. OEM & ODM welcome, independent R&D ability, patent design.

4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed

5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
Prod Model: RB-HB-515-120W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Timedelivery Time: 7-10days
Certification: UL
Lamp Body Material: Aluminum
IP Rating: IP65
Color Temperature: Pure White,Warm White,Cool White
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.

We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.

With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.

We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
