Home LED Light Products Outdoor 120W LED High Bay Light, LED High Bay Lamp, High Bay LED Light

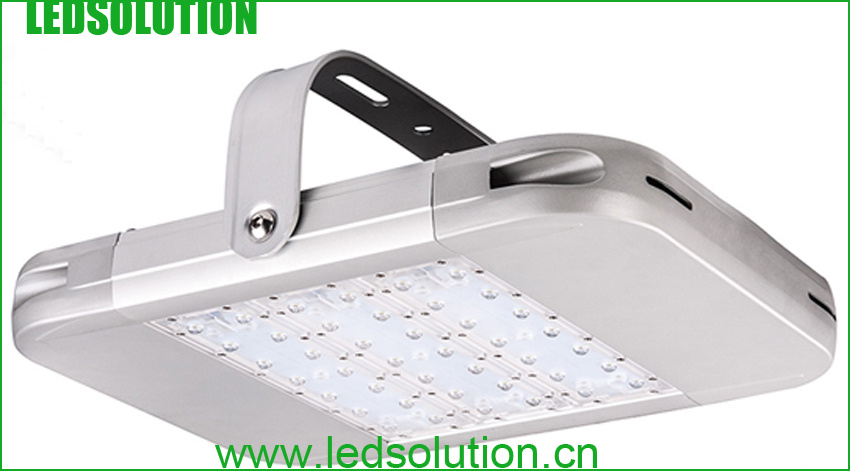

Outdoor 120W LED High Bay Light, LED High Bay Lamp, High Bay LED Light

Outdoor 120W LED High Bay Light, LED High Bay Lamp, High Bay LED Light
Price: US $ 180-201/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 10/Piece
Pay Type: L/C,T/T,Paypal,Money Gram,Western Union

outdoor 120w led high bay light,led high bay lamp,high bay led light

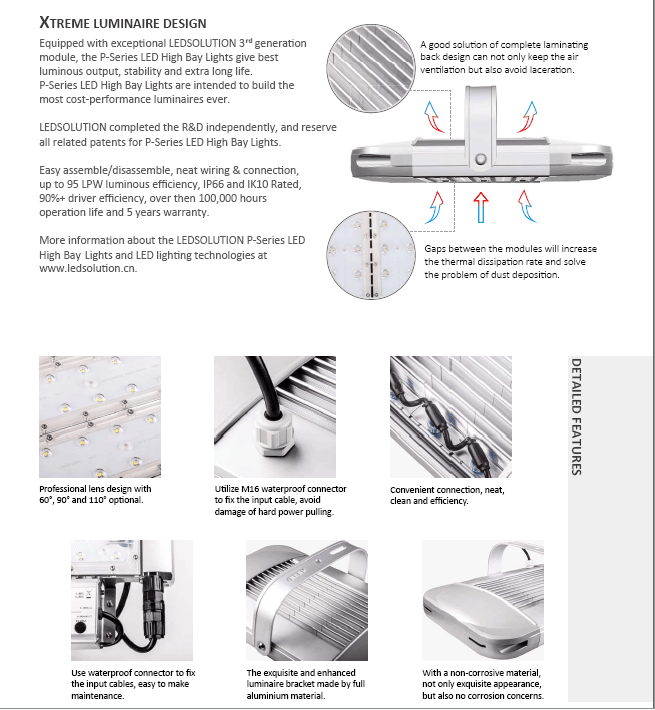

1.Modular pluggable technology,easy-tool onsite maintenance;
2.Honeycomb beiquette burning effect and the whole structure cooling technology;
3.Dould-coupling IP66 protection for module,highest waterproof level.
4.Ergonomic light distribution to achieve even illuminating effect;
5.Free serialization and various power solutions

 Warehouse lighting,factory lighting,rink lighting,gas station lighting.Parking lots.

Special Technical Advantages of  LEDSOLUTION Modular lights

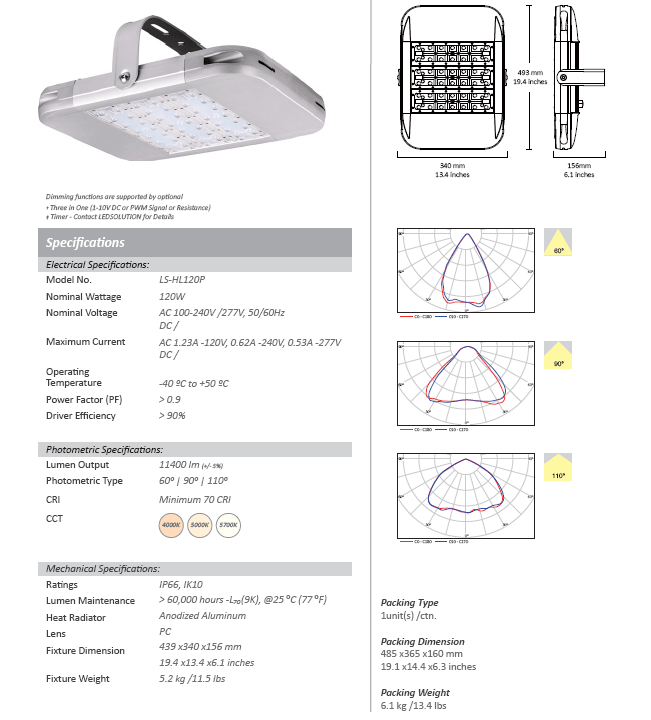

LED Brand

Philips LUXEON® T

Driver Brand

Meanwell HLG series

Norminal Wattage


LED Module Quantity

3 modules

Input Voltage


Power Efficiency


Power Factor


Lamp Rated Luminous Efficiency


Lamp Rated Lumen output

12000 lm (Lumen tolerance +/- 5%)

Color Rendering Index


Color Temperature

4000 5000 or 5700K

Photometric Type

60,90,110 degrees

Optimal Operating Temperature


Storage Temperatures


Working Environment

Between-40°C~+50°C, 10%~90%RH

Total Harmonic Distortion

< 10%

Lumen Maintenance

> 60000 hours -L70, @25 ºC (77 ºF)

Body and Shell Materials

Anodized Aluminum

IP Rating

IP66 with test report

IK Rating

IK10 with test report



Optional Function

1-10V DC or PWM Signal or Resistance Dimming


Timer/Photocell Control


5 years


Packing Details

Fixture Dimension

439 x340 x156 mm

Fixture Weight

5.2 kg /11.5 lbs

Packing Dimension

485 x365 x160 mm

Packing Weight

6.1 kg /13.4 lbs

Welcome your inquiry!
Prod Model: LS-HL120P
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maximum Current: AC 0.41A-120V, 0.21A-240V,
Power Factor (PF): > 0.90
Lens: PC
Working Temperature: -40 - +50
Driver Efficiency: > 90%
LED Driver: Mean Well
Operating Humidity: 10% to 90%
Heat Radiator: Anodized Aluminum
Input Voltage(V): 100-240V/277V/347V/480V
CRI (Ra>): 70
Lamp Body Material: Aluminum
IP Rating: IP66
Certification: VDE
Color Temperature: 2800-6500k
Color: Silver
Usage: Work Shop,Warehouse,Gas Station,Area Lighting,Park
Lifespan: 100000 Hours
Beam Angle: 60,90,110 Degree
LEDSOLUTION is a competitive Global supplier Of LED Video Displays, LED Lighting and LED Components Solutions. We are specialized in High quality LED products including research, development, Production and marketing, serving various turnkey Solutions for government projects, corporate image Projects, commercial projects, and release of network Information, etc.

With the number of more than 300 staff, including our Research and Development staff which is a team of Over 80 members, and an accumulation of eight year Experience in the industry, LEDSOLUTION has become One of the world' S leading LED application Manufacturers. We owms totally 5, 000m2 super clean and antistatic workshop as manufacture base in Shenzhen. We have the whole set of international advanced Automatic machines and quipments, including advanced manufacturing equipments and perfect testing devices. We have already passed Switzerland quality system SGS ISO 9001: 2008 and ISO 14001: 2004 environment System certificate, RoHS test, CE certificate, CCC, ETL And other quality certificates, IP67 waterproof and dustproof test, EMC test, high and low temperature, heavy metal test. In May 2008, LEDSOLUTION was rewarded as "2007 China Excellent Company in LED Industry" by three top class national associations and media. In May 2009, LEDSOLUTION was titled the Most Promising LEDEnterprise in China for the Year of 2008 and was Granted the Excellence Award for LED Application In China for the Year of 2008 by China Electronics News, China Optics and Optoelectronics Manufactures Association (COEMA) and COEMA of LED Display Application.

For many years, relying on acuminous market awareness and in line with the enterprise spirit of Diligence, solidarity, innovation, transcendence and the goal of pursuing high technology, high quality

And high benefit, we have made big progress in High Tech field and now possess our own brands And independent intellectual properties. We have established completed market network and after Sales service network in domestic and overseas markets. In China, with 16 branches, LEDSOLUTION has owned very mature network of sales and after service. Our domestic customers are positioned at Top 500 enterprises in the world, such as Bank of China, China Mobile, China Safety Insurance, etc...Our products have been exported to all over the world, such as North America, Europe, SouthAmerica, Middle East Area and Southeast of Asia etc...
