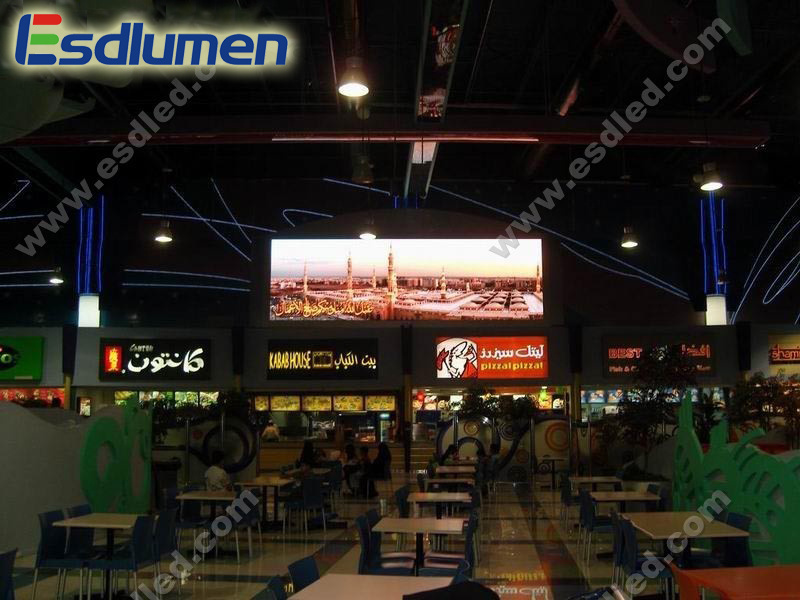

Indoor fullcolor advertising LED display screen features:
Quiet fan design, excellent heat dissipation, noiseless, the preference for indoor use.
Concealed quick lock between the cabinets horizontally, just one switch, then all set.
Crane padlock vertically connected, convenient for installation.
High polymer flexible mask, no dazzle, better contrast ratio.
High-performance metal plate cabinet, concise cable.
The sealed type back cover, effectively prevent the wrong operation of the amateur.
| 1 Module Construction Description |
Each pixel contains 1 pcs 3-in-1 SMDLED
Pitch 10mm, resolution: 10000dots/sqm |
| 2 Professional analysis |
| No. | Professional analysis content | Analysis item |
| 1 | Color matching analysis | In order to make the color matching reach the best white balance effect, the color matching rate of different color brightness is set asR : G : B = 3 : 6 : 1 |
| 3 Pixel Parameter |
| No. | Item | Parameter |
| 1 | Pixel pitch | PH10 mm |
| 2 | Pixel configuration | 3-in-1 SMD |
| 4 LED Chip Parameter |
| No. | Item | Wavelength | Brightness | Model No. |
| 1 | Red tube chip | 620-625nm | 400-600mcd | easter-O1 |
| 2 | Pure green tube chip | 520-525nm | 1,100-1,600mcd | easter-H1 |
| 3 | Pure blue tube chip | 465-470nm | 300-600mcd | easter -H1 |
| For this quotation: Taiwan famous brand leds or Silan leds will be selected for the display. Quality led displays have bigger led chips for stable high brightness and prolonged lifespan. |
| 5 Screen Technical Parameter |
| | | |
| | | |
| 3 | Module | Pixels: 32dotsx16dots, Size: 320mm x 160mm |
| 4 | Cabinet | Size: 1280mm x 960mm
Pixels: 128dotsx 96dots |
| 5 | Display brightness | 800CD/M 2 |
| 6 | Brightness adjustment | 256 grade automatic, 8 grade manual |
| 7 | Image Adjustment | Contrast, color tone, module brightness adjustable |
| 8 | Drive Mode | Static |
| 9 | Drive IC | MBI 5024, 16-bit processing technology |
| 10 | View Angle | 140°horizontal, 140°vertical |
| 11 | View Distance | 6meters~ |
| 12 | Grey Scale | 16,384 grades |
| 13 | Display Colors | 4.4 trillions |
| 14 | Frame rate | ≥60 Hz |
| 15 | Refresh rate | ≥360HZ, Guarantee the picture will not tingle when the pick up camera is kinescoping |
| 16 | Control Mode | Synchronic control |
| 17 | Signal Interface | DVI , S-VIDEO, CVBS, VGA, YPbPr, PAL/NTSC, HDMI, etc. through a video processor |
| 18 | MTBF | ≥50,000 Hours |
| 19 | Screen Lifespan | 100,000 hours |
| 20 | Blind Spot Rate | ≤0.0002 |
| 21 | Operating Voltage | AC 110V/220V±15%, 50-60HZ |
| 22 | Screen Body Power Consumption | Max: 450w/M2, Average: 180w/M2 |
| 23 | Screen body weight | About 55KG each cabinet, do not include outer frame |
| 24 | Control Distance | 120 meters UTP CAT.6 network cable, without relay, or optical fiber transmission 500M-10,000M. |
| 25 | System Working Environment Temperature | -40degree---+60 degree |
| 26 | System Working environment humidity | 10%---99%RH |
| 27 | Waterproof | IP43 |
| 28 | System Operating Platform | WINDOWS 2000, XP, Vista |
| 29 | Certification | ISO 9001:2000, CE, FCC, CCC, ETL, GOST |
Shenzhen Eastar Electronic Co., Ltd., is an integrated service supplier of LED display screens headquartered in the city of Shenzhen, China.After six years professional experience in LED R&D significantly guarantees high quality of the products which have been exported to more than 80 countries and regions in the world, such as USA, UK, Italy, Belgium, etc.Our effective management and prompt and creative services have won a good reputation from our customers from all over the world.
Our manufacturing center is equipped with world class manufacturing equipment.Now, there are 3 YAMAHA SMT high speed mounters, 2 auto colorgraph and beam splitting machines, backflow welding machines, wave crest welding machines, and supersonic wave cleaning machines.We take advertage of the latest technology to meet the ever-demanding needs of the market.So All above these machines is operated automatically, promote our efficiency and ensure our products high quality.
EASTAR strictly implements the 5S production management system and ISO2001 Quality Control System.Up to now, we have the UL, CE, RoHS, etc certificatios.Meanwhile, we are on the way of applying new quality control certifications and keeping the principle 'customers and Quality come first' in our mind to make sure everystep operated normally and eliminate the mistake at the first time.
Come and talk to one of our representatives, whether you are interested in buying a LED display screen, or you are looking for a good supplier to work with in your market.We are willing to share our experience with you and we will also share with you the satisfcation brought by a good piece of product, or the success brought by our faithful cooperation!So welcome to join us!
