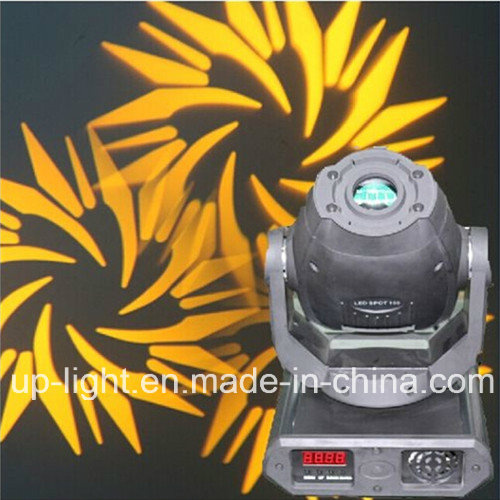

Newest Mini 100W Led Spot Moving Head Light
Power supply: 100-240V AC 50/60 Hz
Power consumption: 120W
Light source: Taiwan high MCD 100W LED WHITE
DMX-control-channels: 16
DMX-512-connection: 3-pin XLR
Dimensions:400*270*280mm
Net Weight:10kgs
Maximum ambient temperature ta: 45° C
Function of the control channels
| Channel | Function |
| Channel 1 | dimmer |
| Channel 2 | strobe |
| Channel 3 | Color-wheel |
| Channel 4 | semi-wheel |
| Channel 5 | Horizontal movement (Pan) |
| Channel 6 | Vertical movement (Tilt) |
| Channel 7 | prism |
| Channel 8 | prism rotations |
| Channel 9 | rotating gobo-wheel |
| Channel 10 | Gobo rotation |
| Channel 11 | Gobo running forward and backword |
| Channel 12 | focus |
| Channel 13 | Pan fine 16 bit |
| Channel 14 | Tilt fine 16 bit |
| Channel 15 | Speed of PAN / TILT movement |
| Channel 16 | reset |
Uplight Stage Equipment (Guangzhou) Co., Ltd. is a high-tech company, which is engaged in R&D, manufacturing and marketing of stage equipments. The main products include moving lighting, LED stage equipments, follow spot, laser light, gobo light, etc.
We own a professional R&D team, who has 10 years experience in stage lighting. Our sales team can provide best service by engineers and technical staff members' supporting. We passed the ISO9001: 2000 quality management system standard as well. There are numerous domestic projects we have been undertaken, was praised by all the customers.
To become the leading stage lighting supplier on a global basis. We view our customers as the most important element in our business, strive to exceed the customer's expectation.
