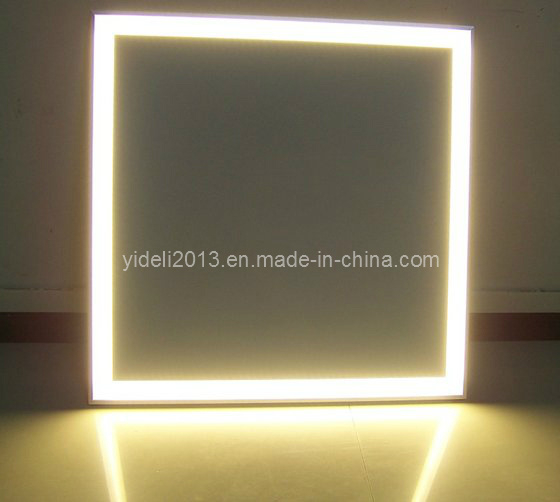

New Type 3014 Invisible LED Advertising Panel Light 60W 4600lm

New Type 3014 Invisible LED Advertising Panel Light 60W 4600lm
Price: Negotiable/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
New type 3014 invisible LED advertising panel light 60W 4600lm 120X60CM 60X60CM

Features:

1. This smart switch use the sound wave as control source and avoid to switch frequently by manual, also it has delay switch off function.
To use audio control mode and brightness automatic detection, when the lightness below 7Lux, and if the audio signal more than 52dB± 8dB, the Panel light will be switch on automatic, and after 60s, should power off automatic and to make the energy saving.
2. Edgelite, Anodizing AL frame, PMMA LGP and diffuser, bright, soft and comfortable luminosity
3. Premium SMD LED, >60% energy saving than fluorescent lamps
4. Distinguish circuit design ensures no interference with any LEDs when a single one malfunctions
5. External high PF constant current LED driver, instant start; No flickering and no humming; Safe and reliable
6. Four sides illuminating, better heat sink, temperature rise <20deg., longer lifespan, >50, 000 hours
7. Simple and splendid appearance
8. Easy installation: Embedded (replace the grill lamp or false ceiling), mounted on the ceiling or wall or hang from the roof using chains
9. Mounted on walls as wall washer or back lighting for art drawings or advertisements
10. Bean angle: 120°
11. Certification: CE, RoHS
12.3 years warranty

Installation ways:
1. Replace the plaster ceiling
2. Suspended to the ceiling
3. Mounted on the ceiling or in the wall

Applications:

Bar, coffee house, shopping mall, hotel, restaurant, housing, office, showroom, counter, outdoor decoration, school, hospital etc.
Model No.: YDL-PL-120X60
Lamp Rated Total Power:  60W
Lamp Total Luminous Flux: 4446-4680LM
Lamp Rated Luminous Efficiency: 85lm/w
Input Voltage: AC 90 ~ 265 V
Light Source: 300pcs SMD LED 3014
Dimensions: 1195*595x 9 MM
IP Rating: IP44,IP54,IP65
Power Efficiency: 90%
Color Temperature: 2700-3000K
4500-5000K
6000-6500k
Color Rendering Index(CRI): Ra>80
Frequency Range: 50 ~ 60 Hz
Storage Temperature: -40deg ~ 70deg; 0% ~ 100% R.H.
Working Temperature: -25deg ~ 50deg; 0% ~ 100% R.H.
Lamp Body Material: Aluminum, PMMA LGP, PC diffuser
Beam Angle: 120°
Power Factor(PF): 0.9
Net Weight: 7.8kg/piece
Gross Weight: 9kg/piece
Package Size(mm): 128CM X 63CM X 4CM 9KG
Prod Model: (YDL-invisiable 120x60 60W)
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Invisiable 3014 SMD LED Panel Light: 600*600mm Dimension 60W
LED Chip: Epistar/Samsung/Lumensmax
Wide Beam Angle: 120degree
OEM/ODM: Is Available
Delivery Time: 3-7working Day
Power Consumption: 60W
Working Temperature: -20 - 50degree
Lamp Luminous Efficiency(Lm/W): 70lm-90lumen/W
LED Quantity: 300PCS 3014 SMD LEDs
Light Source: LED
Appearance: Square
Type: Ceiling
Emitting Color: White
Certification: VDE
Housing Material: Acrylic
Base Material: Metal
Voltage: 85V-265V
Dimmable: With Dimmable
Beam Angle: 120degree
