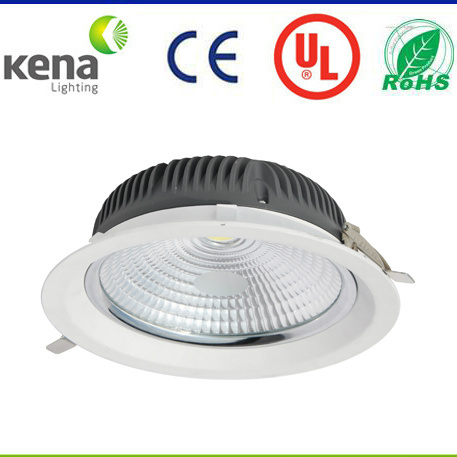

New style 30w led down light with high lumen
General Description
Led downlight is a new type LED light source, which were developed on the traditional downlight,
Compared with the traditional downlight, It has many advantages: Such as energy-saving, LC, Long lifespan, better CRI, and quicker response. LED downlight design more beautiful and installation to keep building decoration overall unity and perfect, does not destroy the setting of lamps and lanterns, no glare, visual result of the person downy, uniform.
Features
1. High efficiency and energy saving, it could save more than 67% energy than the common light.
Under the same situation.
2. Long life, semiconductor chip shine and lifespan is up to 50000h.
3. Healthy light, no UV and infrared ray, and no radiation.
4. Environment-friendly, no mercury and xenon and other harmful elements, no EMI and
Recyclable.
5. High performance external driver with constant current, no glare and helpful to protect our vision.
6. Anti-dazzle deep embedded structure design, and effective to prevent glare.
7. High strength stainless steel spring incase the sagging after installation.
8. Patent integrated light source, high quality Bridgelux chip, high photosynthetic efficiency, high
CRI.
9. Advanced thermal design, integration die casting forming, small contact thermal resistance,
Efficiency high of cooling.
Applications
1. Home sitting, and Hotel;
2. Airport, Market and other large gymnasium;
3. Cabinet/ Museum/Exhibition hall and Kunsthalle;
4. Office and Reading room.
Packing /weight
1. The size of the package: 260*260*96(mm)
2. The size of the carton: 530*530*305(mm)
3. Qty/carton: 12 pcs
4. Lamp weight: 1.0 Kg
5. Qty weight: 15.8 Kg
Product quality assurance
All of our product's warranty period is 3 years for the constant current power supply, LED light
Source guaranteed 5 years. In the normal conditions of use, quality assurance is based on product right preservation, installation, use and maintenance. Due to improper installation and use of product operation procedure, and cause damage to the product, do not belong to this warranty scope. To guarantee quality problems, the company will choose the repair, exchange (components) or replacement products give the solution method, exceed the time limit will be appropriate charge cost of raw materials, labor.
|
Product Model |
KNTD230-30W |
|
Led Quantity |
1 PC |
|
Led Working Voltage |
DC30±2.0V |
|
Led Consumption |
30W |
|
System Consumption |
31W |
|
Led Luminous Efficiency |
more than 110Lm /W |
|
Led Initial Flux |
more than 3300lm |
|
Junction Temperature |
≤80 degree |
|
Color Temperature |
2700~7000K Typ:3000K(Note1) |
|
lamp's Luminous Efficiency |
≥80Lm /W |
|
Illumination Uniformity |
>0.6 |
|
Lumen Maintenance |
70%(50000Hrs) |
|
Color Rendering Index |
≥80 |
|
Light Distribution |
Symmetric/round spot |
|
Light Design |
LED+Secondary distribution of light |
|
Driver Working Temperature |
-20 degree~+40 degree |
|
Storage Temperature |
-30 degree~+65 degree |
|
IP Rating |
IP22 |
|
Life-span |
≥50,000Hrs(Note3) |
|
Appliance Class |
Class I |
|
Lamp Material |
Aluminum alloy |
|
The color of the lamp shell |
White+gray |
|
Mounting |
Recessed |
