Home LED Light Products New P3 Reliable/Lower Price Indoor SMD LED Display

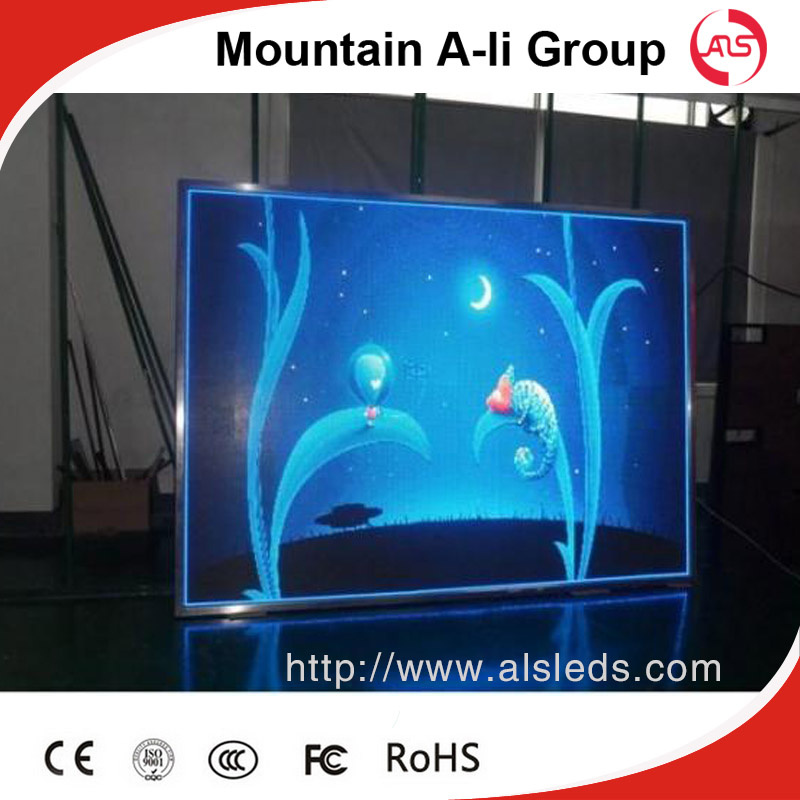

New P3 Reliable/Lower Price Indoor SMD LED Display

New P3 Reliable/Lower Price Indoor SMD LED Display
Price: US $ 1150-1250/Square Meter
Trade Terms: FOB,CIF,EXW
Min Order: 1/Square Meter
Pay Type: T/T,Western Union
Product Description
 Product features:
1) Light, color can be customized

2) Full magnesium design, cooling well, no fans, no noise, anti-interference

3) A ssembly of high prcision, the gap can be controlled less than 0.2mm,
cabinet installation just 20 seconds

4) the cabinet size can be user-friendly ddesigned according to the module size

5) Fast disassembly module just 10 seconds, convenient replacement and maintenance

6) Durable cabinet stucture


P3 indoor Surface Mounted Module Technical Parameters


Item
Parameter
ModelP3 indoor full color LED module
Module size192mm * 96mm
Pixel pitch3mm
Pixel density111111dots/m²
Pixel configuration1R1G1B
Module resolution64dots(W) * 32dots(H)
Max power consumption18W
Module thickness14.75mm
Module weight0.16KG
Driving methodConstant current driving
Scan method1/16 scan
Interface wayHUB75-A
Brightness≥1500cd/m²
Cabinet size576mm * 576mm
Power supply mode5V/40A*3pcs
Thermal dischargeFan 2pcs
Optimal viewing distance3M - 20M
Optimal viewing angle160º(W) 120º(H)
Environment temperature-20º ~ +50º
Relative humidity10% - 95%
Operating voltageAC220V ± 10%
Average power180W/H
Max power consumption≤360W/m²
Control modeSynchronization
Driving deviceIC constant current driving
Refresh rate≥400HZ
Gray/ColorRGB each 256 grade,can display 16.7M color
MTBF≥9000hours
Power switchAutomatic switch


 Application:
1) Large hall, sports arena, banking, telecommunications,
2) Government agencies, terminal, pier, railway stations,
3)Stock market  and othertrading marketm medical systems,
4) Electric power,galleries, and other publicity, adverting,
information dissemination, the guide places, and so on.



Prod Model: p3 indoor SMD full color module
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size: 192mm * 96mm
Module Resolution: 64dots(W)*32dots
Max Power Consumption: 18W
Driving Method: Constant Current Driving
Optimal Viewing Distance: 3m - 20m
Optimal Viewing Angle: 160o(W) 120o(H)
Relative Humidity: 10% - 95%
Module Weight: 0.16kg
Control Mode: Synchronization with PC
Power Switch: Automatic Switch
Tube Chip Color: Full Color
Display Function: Video Display
Pixel Configuration: 1R,1G,1B
Scanning Mode: 1/16 Scan
Display Type: LED Video Display
Application: Shopping Guide
IP Rating: IP43
Certification: FCC
Pixel Pitch: 3mm
Pixel Density: 111111/M2
System Operating Platform: Win98/2000/Nt/XP
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
