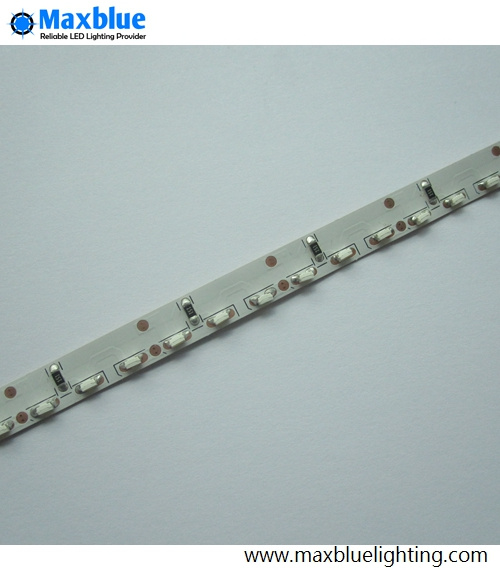

SMD3014 LED Strip Sideview 60LEDS/M DC12V, high brightness 10-13lm/led
335 sideview led strip features:

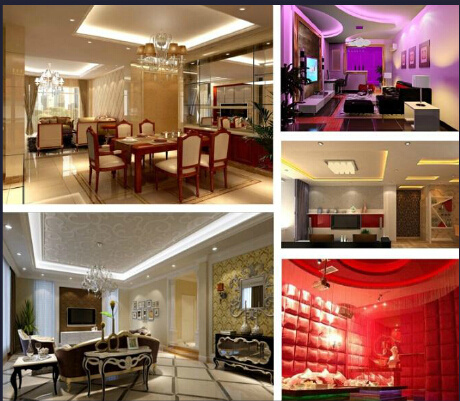

-Ideal for fast installation into many applications like signs, displays and pelmets
-Back affixed with 3M double-sided adhesive , easy to install .
-Low voltage , safe and environmentally friendly.
-Special circuit design, anti-static and stable.
-Solid state light source, shock , no subject to RF interference.
-Different colors and IP20/non-water proof, IP55, IP67, IP68 available
-White, yellow PCB board
-Per 3-led or 6-led cuttable for DC12V or 24V
-CE, ROHS certification
-3-year warranty
335 sideview led strip Specification:
Model No.: MB-SFS30-W-60/20
Dimension: 5000mm*8mm*0.22mm
PCB width: 8mm
PCB color: White, Yellow or Black
Voltage: DC12V / DC24V
Max.Current: 20mA/led
Wattage: Max. 5.3W/M; Max.26.5/Roll
LEDs: 300pcs SMD3014 10-13lm/led
Waterproof grade: IP20
Beam Angle: 120degree
Color: Warm white, Cool white
Working temperature: -20~+60 celsius degree
Flexible led Strip range:
--3528 smd led: 60leds/m, 120leds/m, 240leds/m(single row and double row);
--5050 smd led: 60leds/m, 72leds/m, 120leds/m(double row)
--2835 smd led: 60leds/m, 120leds/m (single row)
--5630 smd led: 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW led strip: 4 in one(60/72/84/96leds/m)
RGB+W/WW(60/72/96/120/144leds/m)
--CCT adjustable led strip: 3528 120/240 leds/m, 5050 60leds/m, 2835 112leds/m; 3014 224leds/m; 5630 112leds/m.
--digital strips
--110V/220V led strips
different length, different voltage, different led quantity can be customized/tailored.
FAQ:
Q1: Are you a manufacturer?
Yes, we are. You can check more in our website: www.maxbluelighting.com
Q2: Do you have the MOQ request?
For our developed products, there is no MOQ for the standard products.
Q3: How long can I get my order?
The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose.
Q4: What is warranty time for your products? If any broken, what I will do?
2-3 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge.
Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc.
Q6: What kinds of payment methods do you accept?
T/T bank transfer, West Union and Paypal, L/C at sight
Q7: What kinds of shipping methods you use?
Sea: seaport to seaport, cheap, long time, suitable for big volumn orders
Air: airport to airport
Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered.
Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.
Established in 2009, Maxblue Lighting Co., Ltd., with own branches of R&D, manufacturing and marketing, is specialized in Indoor LED lighting and commercial LED decoration, devoting to delivering eco-friendly, affordable and stable LED products for the customers. Now we focus on LED flexible strip, LED linear light, LED COB downlight, LED panel light, LED track light, LED wall washer etc.
With our ISO9001: 2008 certified facilities, plus two SMT production lines and one fully-automatic reflow machine, we can manufacture above 50000 units of CE- and TUV-marked items per month in the 5000 square meters factory. To develop innovative products cater to different market needs, we have 12 RD engineers and 15 QC staff, well knowledgeable about optical, electrical and thermal design and management. And the OEM/ODM sample orders can be tailored within 7 working days per customer's requirements.
Based on our continuous efforts and outstanding quality control polices, we developed rapidly in the past five years, and the products are well welcomed in European, North/South America, Japan and other Asia countries. And also in some countries, Maxblue has been distributing by some partners. If you have interests, warmly welcome you to join us for better lighting the world.
