| Price: | US $ 195-205/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 2/Piece |
| Pay Type: | L/C,T/T,Money Gram |
MW driver 30W 60W 90W LED Street Lighting prices of street light LED 100W 120W 150W
Power: 30W-60W, 70W-200W LED street lighting
Pole height: 5M, 6M, 8M, 9M, 10M, 12M
Other light sources: MH lamp, HPS lamp, HID lamp available
LED Driver: MW driver Street Light LED
LED Brand: CREE/BRIDGELUX LED street lighting
We Are Manufacturer
Product Features
1.Efficient and integrated LED light source technology: imported chip package (single 1-3W series)
2.Low thermal resistance packaging technology: LED light source to achieve the new LED light source directly
3.Efficient average temperature cooling technology:modular cooling, independently with each other
4.Heat dissipation:high thermal conductivity thermal aluminum radiator zigzag structure, the larger cooling area, the faster of heat dissipation. The shell of lamp contact air with wide area, that is accelerating the air convection,
5.Lumen Efficiency: High lumen efficiency,Compared with traditional lamps, can save 60% - 80% of the electricity bill.
6.Led lighting source:Using high power 1-3w led lighting source, No ultraviolet, infrared, thermal radiation
7.Light failure :LED packaging technology integrated thermal and light fades directly to solve the problem completely, the light distribution of high power 1-3w is more uniform.

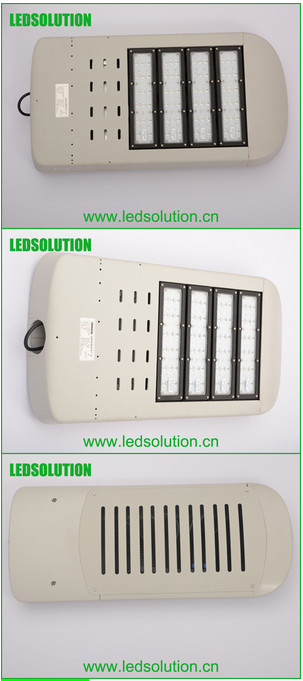

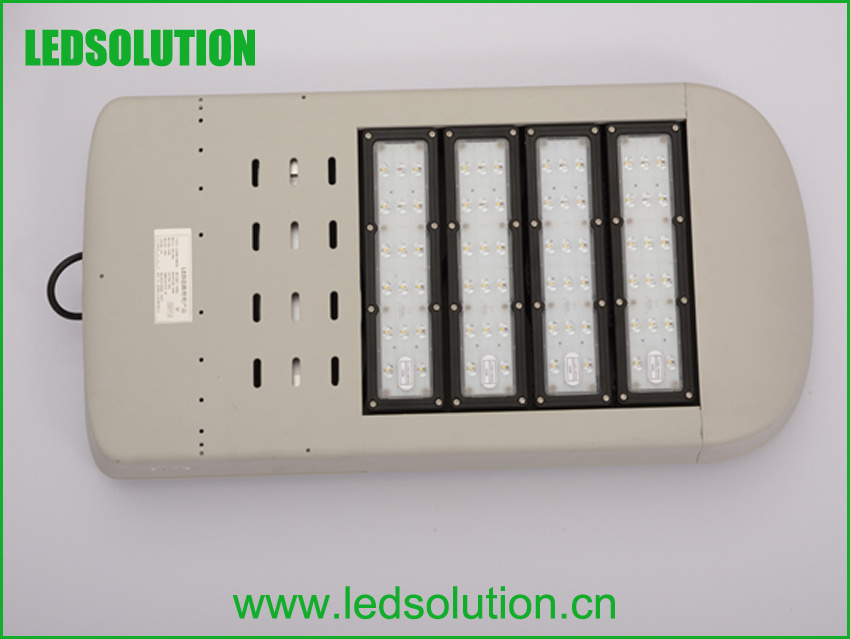

Product picture details

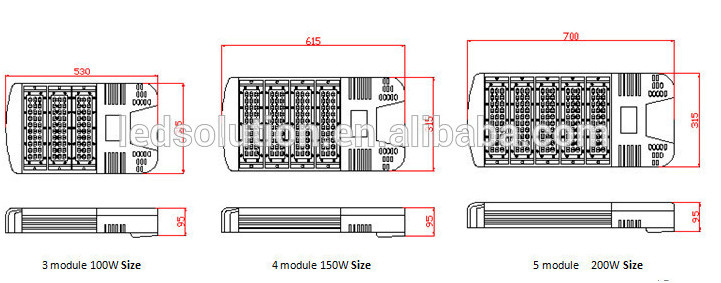

Product drawing

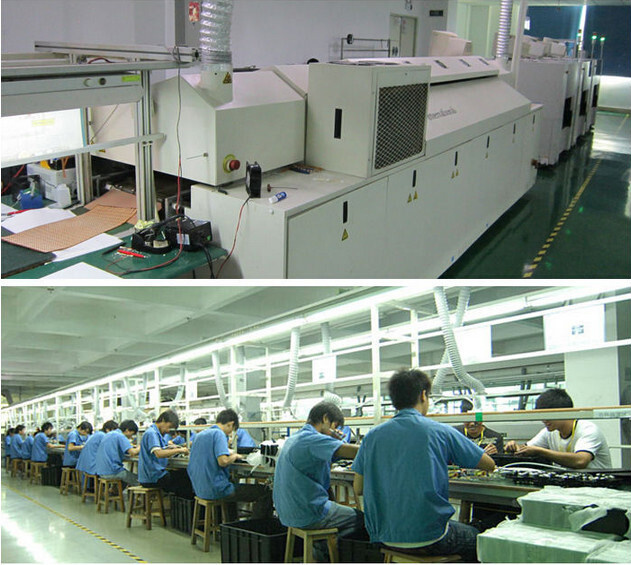

Our factory
Instructions:
Why Choose us!We are your best partner?
1.Many solution for you,Chips,Power supplier,Customize your product,So easy!
2. We have our own injection molding factory. which can have better control on production cost and ensure delivery.
3. Our price is very competitve, we count on our profit based on total large quantity. so we can offer you very competitive price with the most stable solution.
A FACTORY SPECIALIZED IN LED STREET LIGHT FOR SEVERAL YEARS-YOU DESERVE IT!!!
WELCOME YOUR KIND ENQUIRY~ :-)
| Model NO. | Item No | LSST-10038-001 | LSST-15048-001 | LSST-20058-001 |
| Optical Parameters | LED Light Sourse | 90PCS 1-3W ( 3 module ) | 120PCS 1-3W ( 4module ) | 150PCS 1-3W ( 5module ) |
| Luminous Flux(lm) | 11000±10% | 16000±10% | 21000±10% | |
| CCT(K) |
6000-6500 4000-4500 2800-3200 |
6000-6500 4000-4500 2800-3200 |
6000-6500 4000-4500 2800-3200 |
|
| CRI(Ra) | 80 | 80 | 80 | |
| Beam Angle | 90*135° | 90*135° | 90*135° | |
| Lux(6m/8m/10m/12m) | 89/50/32/22 Lux | 134/75/48/33 Lux | 179/101/65/45 Lux | |
| Electrical Parameters | Input Voltage(V) | AC85-270V | AC85-270V | AC85-275V |
| Frequency(Hz) | 50/60HZ | 50/60HZ | 50/60HZ | |
| Total Power(W) | 100 | 150 | 200 | |
| Power Factor | 0.95 | 0.95 | 0.95 | |
| Lifespan (Hrs) | 50000 ( Light Decay 30% ) | 50000 ( Light Decay 30% ) | 50000 ( Light Decay 30% ) | |
| Conversion Efficiency(%) | 90 | 92 | 93 | |
| Structural Parameters | Material | ADC12+PMMA | ADC12+PMMA | ADC12+PMMA |
| Size(mm) | L530*W315*H95 | L530*W315*H95 | L530*W315*H95 | |
| Net Weight(kg) | 6.8±5% | 7.8±5% | 9±5% | |
| Integrated Parameters | Working Temperature | -20 degree ~+45 degree ( 25 degree Working Best ) | -20 degree ~+45 degree ( 25 degree Working Best ) | -20 degree ~+45 degree ( 25 degree Working Best ) |
| Storage Temperature | -20 degree ~+55 degree | -20 degree ~+55 degree | -20 degree ~+55 degree | |
| Working Humidity | 40-90%RH | 40-90%RH | 40-90%RH | |
| IP Grade | 65 | 65 | 65 | |
| Wrranty(year) | 3 | 3 | 3 |
| Prod Model: | LS-LED street light-02 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lumens: | 15000lm |
| CRI: | >80ra |
| Warranty: | 5 Years |
| Span: | 50000 |
| Certification: | UL |
| IP Rating: | IP65 |
| LED Chips Brand: | Bridgelux |
| Lamp Body Material: | Aluminum Alloy |
| Power Supply: | AC |
| With Light Source: | With Light Source |
| Application: | Garden |
| Color Temperature: | 2600-7000k |
| Input Voltage: | 85-265V |
| Power: | 150W |
