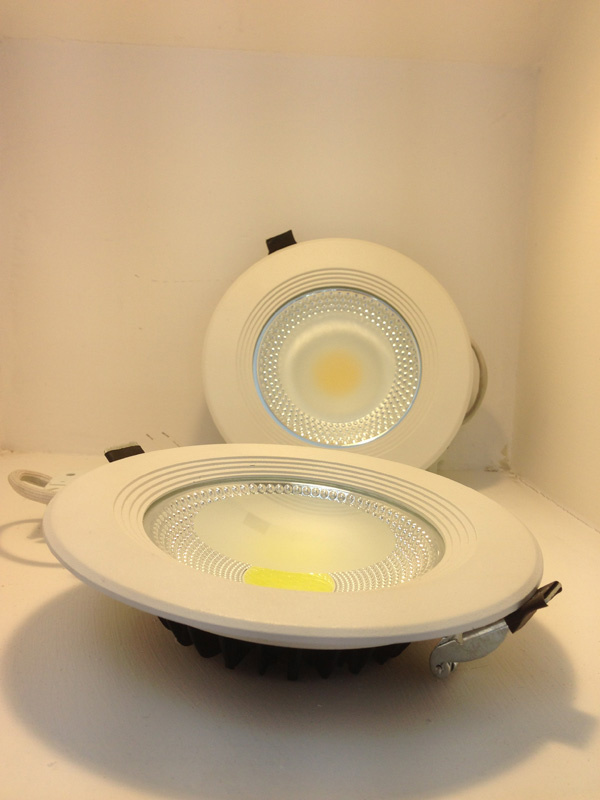

New Design LED Down Light 16W
Light Source: LED COB
Item Type: SLDL16A
LED Light Source: Everlight COB
Warranty(Years): 3
Lamp Power(W): 16
Lamp Luminous Flux(lm): 1600
Lamp Luminous Efficiency(lm/w): 120
CRI (Ra>): 75
Color Temperature(CCT): Cool White
Working Temperature(º C): -30 - 80
Working Lifetime(Hour): 30000
Lamp Body Material: Aluminum
IP Rating: IP44
Certification: CE, C-tick, EMC, FCC, LVD, RoHS, SAA
Place of Origin: Ningbo China
Power factor: 0.98
Driver: Internal driver
Luminance: 100lm/W
Power: 16W
Certificate: CE, RoHS, FCC Warranty: 3 years
Material: Aluminum+PC
Beam Angle(° ): 120
Packaging & Delivery:
Packaging Detail: 20pcs/Box(1250*225*185mm) Wooden box for shipment by sea
Delivery Detail: 7-10 days
Specifications
Led downlights
1)SAA and C-tick approved
2)16W 1600lm
3)High CRI and power factor
|
Item |
Specification |
SLDL16A |
|
Electric Parameter |
Input voltage |
85-265VAC |
|
Operating frequency |
50Hz-60Hz |
|
Input power |
16W |
|
Power factor(PF) |
>0.95 |
|
LED power |
16W |
|
Light parameter |
Luminous efficiency |
≥100 lm/w |
|
Luminous flux |
>1600Lm |
|
Color temperature(CCT) |
2500-7000K |
|
Color rendering index(CRI) |
70 for cool white, 75 for warm white |
|
Other parameter |
LED type |
High brightness Everlight SMD/3528 |
|
Cover material |
PC+ Aluminum |
|
Operating temperature |
-40°C~45°C |
|
Storage temperature |
-30°C~80°C |
|
Life span |
>30000H |
|
International protection |
IP54 |
|
Physical parameter |
Tube holder |
G13 |
|
Tube size |
Φ26×1198mm |
|
Packing size |
1214×32×32mm |
|
Net weight |
418G |
|
Gross weight |
514G |
