New Desiging Mrled P14mm LED Board/LED message board/advertising LED sign for Sale
(1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
(2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
(3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
(4) Line-Double technology is adopted for the picture adjustment.
(5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
(6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
Application:

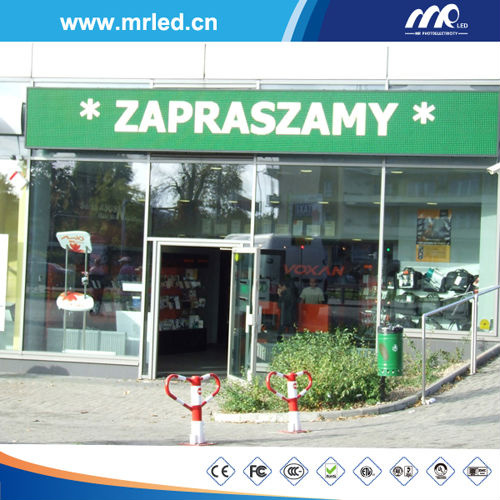

It is mainly used in high-grade entertainment disco, large-scale song and dance show, fashion show, outdoor advertising signs, building curtain wall etc.
Shenzhen MR LED Photoelectricity Co., Ltd, headquartered at Bao'an, Shenzhen, is a pioneer in LED display. We specialize in designing, researching, manufacturing and selling all kinds of LED displays and LED lightings. We are an LED company you can count on for its good quality and competitive pricing
Display and control feature
| Structure feature
|
Specification
| Parameter
| Specification
| Parameter
|
Pixel Pitch
| 14 mm
| Module size
| 224 mm*112 mm
|
Pixel composing
| 2 R1G1B
| Display resolution/module
| 16 dots*8 dots
|
Wavelength (R)
| 625 ± 5
| Standard cabinet size
| 896 mm*672 mm
|
Wavelength (G)
| 522 ± 3
| Weight per sqm
| 65 Kg/sqm
|
Wavelength (B)
| 567 ± 3
| Protection classification
| IP65
|
Wave Angle (H)
| 140 ° (H)/ 60°
| Install mode
| Wallmount, hung and stand structure
|
LED package
| DIP 346
|
|
|
Density
| 5102 pixel
| Working power
|
Display color
| 256*256*256
| Specification
| Parameter
|
Whiteness brightness
| ≥ 45 00
| Working voltage
| AC 220v/380 v±10% 47~64Hz
|
Brightness level
| 128 grade
| Max power/sqm
| 55 0W/sqm
|
Changing frame frequency
| 60 Hz
| Average power/sqm
| 30 0W/sqm
|
Refresh
| 400 Hz
| Short circuit protection
| Yes
|
Driving method
| 1/4 Constant Driving
|
| Nichia/Cotco/Cree/Axt/Silan/Taiwan
|
Control mode
| synchronous
| Working environment
|
Display port
| DVI
| Specification
| Parameter
|
Display mode
| 1024*768 /1024*1024
| Environment
| Outdoor
|
Out of control
| 1/10,000 ( scattered)
| Working temperature
| --20~5 0ºC
|
lifetime
| 100,000 hours
| Working Humidity
| 10~90%
|
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.
Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.
Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
