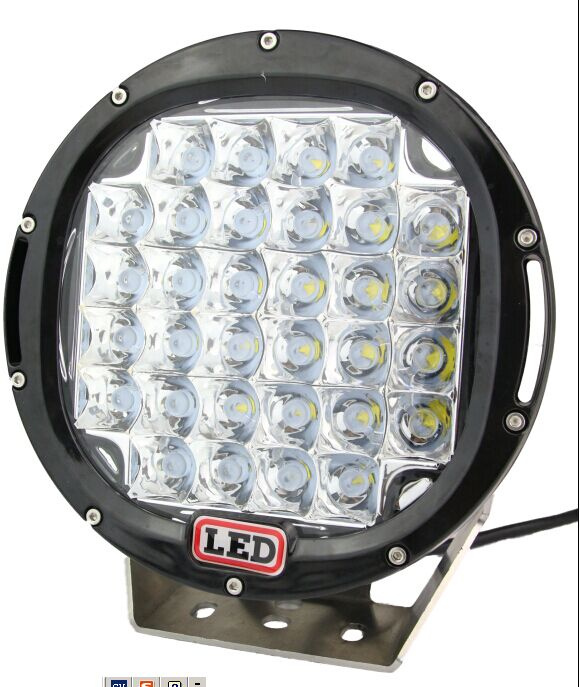

Specification:
3W each CRE LED, 32 pcs of LEDs-2205-96w
Operating Volt10-30Volt DC
Current draw3.75A @ 12V, 1.88A @ 24V
Color temperature6000K
Operation temperature40° C~60° C
Waterproof rateIP67
Beamspot beam
Materialdie-cast aluminum housing
Mounting Bracketstainless steel
WaterproofIP67
Housing colorBlack Silver
LENSPC
About 30000 hours life time
Light output about 6720LM
Description:
1. Material: Casting Aluminum Alloy Housing
2. The glass surface is made of Quart Lens with high light transmission
3. Applying to difference light resource(Such High LED Lamp)
4. The suitable design for heating elimination.
5. The high performance of tight waterproof, dustproof, quakeproof.
6. Anti explosion
7. Install light resource easily
8. The valid irradiation distance is much more longer than normal bulb.
Applications:
1. Work/Spot/Day/Fog lamp, Available in the auxiliary lamp for, SUV bumper, fire engine, ambulance and car
2. Indoor & Outdoor uses
3. Back up light
4. Off Road Lighting
4. Truck, Trailer Interior & Exterior Lighting
5. Construction Lighting
6. Arden, Backyard Lighting
7. Boat Lighting
Competitive Advantage:
1. Wide operating voltage range: It can apply to different types of vehicles.
2. Long life: More than ordinary advanced LED light bulbs, more than 30000 hours life.
3. Aluminum casing, shock-proof waterproof better.
4. Light perception: A softer light to prevent glare.
5. Waterproof and anti-corrosion: It can in the rain or harsh environments.
6. Lumen is 90-120lm/W, much higher than ordinary halogen 20-30lm/W.
|
3W each CREE LED, 32 pcs of LEDs |
|
MS-2205-96w |
|
Operating Volt |
10-30Volt DC |
|
Current draw |
3.75A @ 12V, 1.88A @ 24V |
|
Color temperature |
6000K |
|
Operation temperature |
40°C~60°C |
|
Waterproof rate |
IP67 |
|
Beam |
spot beam |
|
Material |
die-cast aluminum housing |
|
Mounting Bracket |
stainless steel |
|
Waterproof |
IP67 |
|
Housing color |
Black Silver |
|
LENS |
PC |
|
About 30000 hours life time |
|
Light output about 6720LM |
Guangzhou Unionlux Lighting Co., Limited is The Lead Car Lighting Company in China, and It Was Established in 2006.
Our Factory Is Special for HID Xenon Products at The Beginning. In 2009, It Established Flashlight Manufacture Department, Which Focus on HID and LED Flashlight. In 2010, LED Car Light Manufacture Deparment Established in Guangzhou, Mainly Focus on Car LED Lamps, LED Strip Lights. In 2011, The Sales Headquarter Was Established in Guangzhou. With Our Products Broadly Sold to Americas, Europe, Japan, We Were Universally Acknowledged by Customers.
Unionlux Follows The Principle of "Quality First, Customer Is Uppermost' and Sincerely Expecting to Creat Glorious Future in The Car Lighting Area with You.
