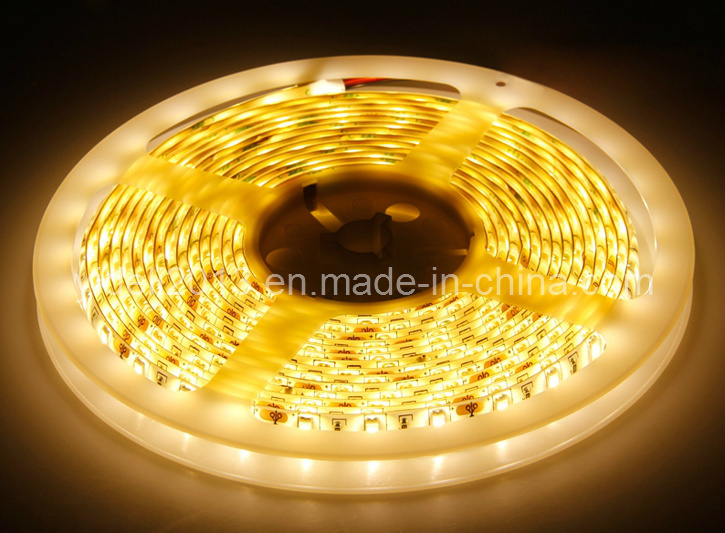

New 5630 LED flexible Strip tape Light Super Bright 60 SMD /metre - Warm White IP68 waterproofFeatures:Superbright 5630 SMD top LED, high intensity and reliability.
Long life span 50, 000+ hours
Cuttable every 3 LEDs along the cutting marks, according to pratical requirement.
Flexible ribbon for curving around bends
Low power consumption
CE ROHS
Fast delivery time
Customzied packing box available
Waterproof: Non waterproof IP65 / IP67 /IP68
1 PE Cannula can shrink after heating, which is better for dealing with the
Cutting parts of ribbons to make waterproof.
Low cost and high quality, easy for production.
PE material is anti UV, waterproof and antiseptic, which has high stability.
Installation Note:
1. Please note this strip light can not be plugged into the mains directly! ! There are two bare wire at the end of each led strip. For home or garden use, you need a power Adapter/ Transformer to convert AC 240V to DC 12v or 24V DC
2. The voltage of car is 12v DC. So you can install it directly, no need for an additional adapter.
3. When you use it in aquarium, please note that the bare power cord can not be soaked in water.
4. LED strip has positive and negative, and if it does not shine, then change the the direction in electrode.
5. The LED strips do not require any resistors. They are ready to work on any 12 volt power source.
6. Please note that these led strip lights can be used for aquariums/fish tank and also for cars. And the outside package is for protection only during the delivery.
Applications:
Architectural decorative lighting
Accent lighting
Border/contour lighting
Mergency&security lighting
Auditorium walkway lighting
Stairway accent lighting
Concealed lighting
Backlighting for signage letters
Channel letter lighting
Cove lighting
Controller:
Type: 44Key Remote Controller
Connection mode: Common Anode(+)
Input/Output: 12V/24V/110V/220V
Max load current: 2A each color
Output: Three CMOS drain-open output
Working Temperature: -20° C-60° C
Mode & Pattern:
Color: 20 Colors
8 Light Pattern: Quick / Slow / Auto / Flash / 7 color fade change / 3 color fade change / 7 color jumpy change / 3 color jumpy change R / G / B increase and decrease control
6 DIY keys Please refer to English manual to get detailed operation
44 keys infrared controller which has 6 keys(DIY keys) for momories the colors what you preferred.
Technical data:
Item NO.
|
YDLFL-60-5630
|
Item Type
|
Strip
|
LED Qty/meter
|
60 LEDs/M
|
Unit PCB size
|
1000*10mm
|
Max Power/meter
|
18W/M
|
LED Size
|
SMD 5630
|
Frequency Range
|
50-60Hz
|
LED source
|
Epistar
|
Input Voltage
|
DC12V/24V
|
Power factor
|
>85%
|
|
Frequency Range |
50-60Hz
|
|
Waterproof Grade |
IP20,IP65,IP66,IP68
|
W orking temperature
|
-40 °C -60 °C
|
Shenzhen Yideli illumination Co., Ltd. is a high-tech manufacturer and exporter specialized in the Research, Development, Engineering and Marketing of LED based lighting solutions. We have professional engineers and we are especially well-placed in the field of power LED thermal management and related lighting solutions.
Our product range is as follows:
1. LED Floodlight
2. LED Spot Light
3. LED Bulb
4. LED high bay light
5. LED Street light
6. LED Strip Light
7. LED downlight
8. LED Lamp
9. Customized LED Lighting Solutions (OEM, ODM)
10. Accessories
Clients are welcome to buy our standard products, or send us OEM requests. You will be impressed by our quality and prices. Please contact us now!
