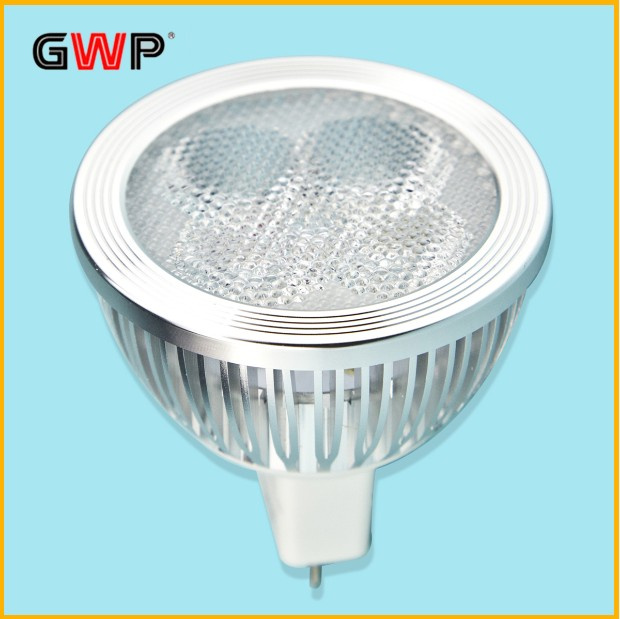

MR16 5W Led spotlight with CE ROHS FCC
Feature
Die-casting heat sink with superior heating dissipating capability enables longer life.
No glare design.
Emits virtually no UV/IR light in the beam.
Be designed to replace a standard halogen MR16.
Using constand current driving circuit with power factor correction.
Uning micro-chip shunt circuit driving technique to maximum efficiency.
Solid state lighting. Energy saving lighting product.
50, 000 hours rated average life.
Low radiated heat.
Contains no mercury.
|
Specifications |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Mechanical Characteristics |
|
Optical Characteristics |
|
|
Heat Sink Specification |
Extrude Aluminum |
|
Luminous Flux |
250-300lm |
|
|
Life |
50,000 Hours |
|
Light Color |
warm/neutral/cool white |
|
|
PCB Material |
Aluminum Core PCB |
|
Color Temperature |
2,700K-6,500K |
|
|
Power Supply |
Internal |
|
CRI |
80 |
|
|
Number of LEDs |
4 |
|
Beam Angle |
30°/60°/120° |
|
|
LED Type |
Cree |
|
|
|
|
|
|
|
Base Type |
GX5.3 |
|
Operation Conditions |
|
|
Diameter |
50mm |
|
Operating Temperature |
-37 -55 |
|
|
Length |
50mm |
|
Storage Temperature |
-40 -80 |
|
|
Weight |
0.06kg |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Part Numbers |
|
Electrical Specifications |
|
|
GP-004AWM2 |
Warm White |
|
Power |
5W |
|
|
GP-004ANM2 |
Neutral white |
|
Input Voltage |
12VDC/AC |
|
|
GP-004ACM2 |
Cool White |
|
Power Factor |
1 |
