Tn6 Overview:

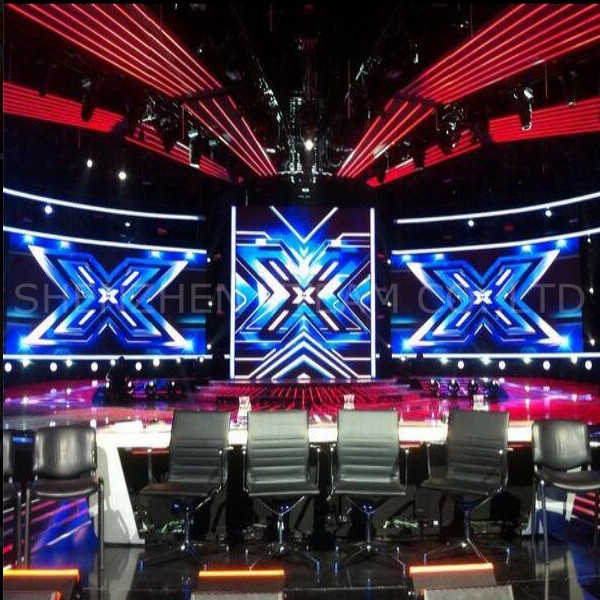

Tn6 is a highquality product with thin structure, high definition and soft frame; Each module make use the special bar to connect for achieving fast assembly. Tn6 are suitably applied in vocal concerts, clubs, nightclubs, DISCO and supermarket for the displaying and advertising use.
Main Features:
1. Dust proof, IP43
2. Completely aluminum constitution, ultrathin and ultralight, wonderful in mixture color.
3. Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the rang.
4. Could be exact connected and easy to install and dismount.
|
ITEM |
Tn6 |
Tn6-L |
|
Pixel Pitch |
6.25mm |
6mm |
|
LED Type |
SMD3528 |
SMD3528 |
|
Pixel Matrix/panel |
80*80 |
96*96 |
|
Pixel Density/sqm |
25600 |
27777.7 |
|
Brightness |
700~2000 Nit adjustable |
900~2000 Nit adjustable |
|
Driving Mode |
1/10 scan |
1/10 scan |
|
View Distance |
≥6m |
≥6m |
|
Weight/panel |
7kg |
7.5kg |
|
Max. Power Consumption |
150W/panel |
200W/ panel |
|
Ave. Power Consumption |
75W/ panel |
100W/ panel |
|
Panel Size |
500mm x 500mm x 75mm |
576mm x 576mm x 75mm |
|
LED Configuration |
RGB 3 in 1 |
|
LED Lamp/Chip |
Silar or Epistar |
|
Viewing Angle |
140°(H)/120°(V) |
|
Gray Scale |
≥14bit |
|
Refresh Rate |
≥1920Hz |
|
Color Temperature |
8000K ± 500(could be customized) |
|
Colors Space |
687 billion |
|
Protection Level |
IP43 (IP65 could be customized) |
|
Application |
Indoor;rental&fixed |
|
Input Signal |
DVI,VGA,HD-SDI,S-video,Composite,YUV,etc |
|
Input Voltage |
AC 220V±10%, 50/60Hz |
|
Power Supply |
Meanwell or G-energy with UL certificate |
|
Display Media |
Video,graphic,animation,signage,cartoon,text,etc |
|
Control System |
YDEA(showbox),Nova,Linsn,PC based dynamic capture & mapping. |
|
System Operating Platform |
WINDOW98/2000/XP/7/8 |
|
Working Environment |
Temperature: -10ºC~+50ºC, humidity: 10-90%RH |
|
Warranty |
Two years |
|
Lifetime |
> 50,000 hours(to>70% luminous output) |
|
Certificate |
CE&RoHs |
