C3 XPER3 LED cigar design Mini portable power bank LED flashlight
Functions:
-1, Power Bank:for mobile, MP3, PDA, Camera, ...
-2, High-bright LED Torch:for camping, lighting, walking, ...
-3, Battery Charger:for Toy, Portable Device, Interphone, ...
Features:
-1, USA CREE LED parts with long lifetime, 320~350 lumens, 200~250 meter lighting distance. Glare lighting can be used to business traveling, camping, climbing, going home late at night and finding things in car.

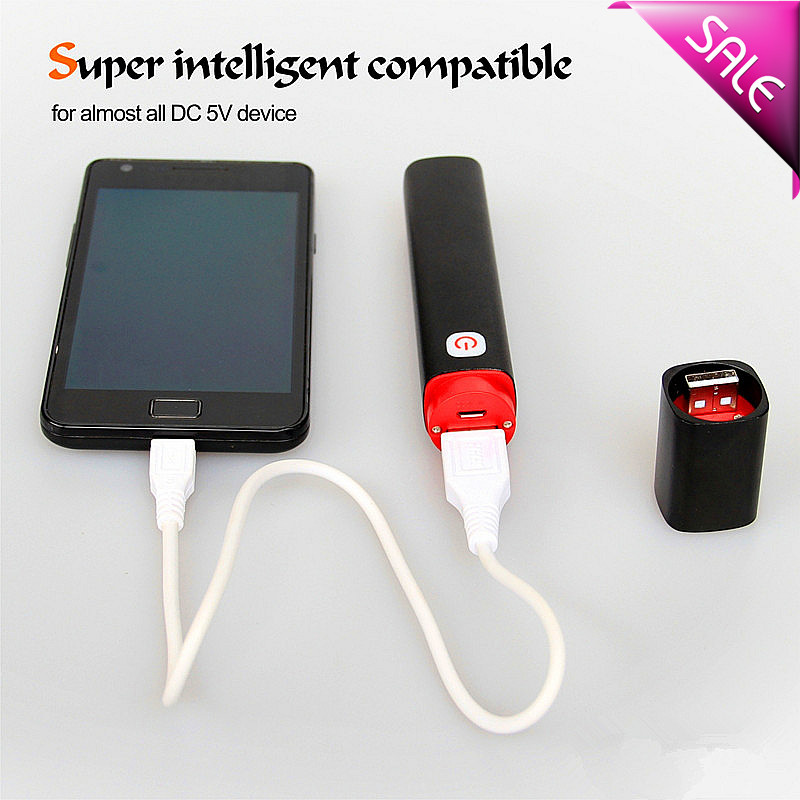

-2, Standard 5V/1A input/output, Strong compatibility for mobile, camera, music player, gameboy, GPS, etc.
-3, The battery is replaceable, removable & rechargeable. Not zombie power. The ingenious design makes its longer life and safer usage. It's true emergency mobile power.
-4, High efficiency, quick speed, low power consumption.
-5, Intelligent circuit system with six protection design: Wrong polarity, over charging, over discharging, over load short circuit, over temperature, wrong contrary connecting.
-6, Smart design replace battery with a coin.
-7, Charging for 18650 Li-ion battery as a family emergency charger.
-8, CNC milling aluminum shell and colorful fashionable simple design.
-9, Apple style. Smaller, lighter, portable, just like a cigar.
Intelligent Design:
-1, Self-test Function:If battery stuffed into the right direction, after 5 seconds, the LED light will automatically illuminates. If wrong, no response.
-2, Wise Auto Shutdown:when no connection with USB port is detected, after 30 seconds, Cigar will shutdown and into the power saver state.
-3, Power Saver Setting:while working, LED light will auto-off after 10 seconds and into the power saver state.
-4, Contrary Connecting Protection: If battery stuffed into the wrong direction, Cigar just no response and shall never burn down.
-5, Circuit Protection:Digital circuit system with wrong polarity protection, over charging protection, over discharging protection, over load short circuit protection, over temperature protection.
-6, Coin screwdriver:Ingenious design that replace the battery with a coin.
Technical Specifications:
| Input: | 5V / 1A |
| Output: | 5V / 1A |
| LED Brand: | USA CREE |
| LED Model: | XPER3 |
| LED Quantity: | 1 pcs. |
| Color Temper: | 7000K White |
| Reflector Cup: | Plating PC Cup |
| Reflector Feature: | Prefocus |
| Luminous Flux(Theory): | 320 ~ 350 LM |
| Luminous Flux(Appl Max): | 150 LM |
| Working Voltage: | 3.3 ~ 3.6 V |
| Working Current: | 350mA ~ 380mA |
| Lighting Run Time: | 3 ~ 5 Hours (4000mA) |
| Lighting Distance: | 200 ~ 250 Meters |
| Color: | Black / Silver |
| Machine Size: | 133 mm * 23 mm * 23 mm |
| Main Machine Weight: | 83 g ( No battery ) |
| Matching Battery: | 18650 Liion Battery (500mA~4000mA) |
| Standard Accessories: | Micro USB Cable |
Packing Information:
-Packing Material: Paper Box
-Box Size:140mm * 50mm * 30mm
-Weight:112 g ( No battery )
Certification:
-CE
-RoHS
-FCC
-SMQ
Using Notice:
-Different battery capacity need different charge time, please refer to the operation for actual data.
-Once you find Cigar doesn't work, please check as followed:
1, Confirm whether the cable is suitable or not, cable connection is right or not.
2, Confirm whether the negative and the positive of battery connect right or not.
3, Confirm whether the power of battery is enough for working.
4, Confirm whether the button is tighten or not.
5, Install the battery, connect with PC USB port for charge testing, check the key is lighting or not.
-Every power bank has it's power conversion efficiency lost. Power bank's capacity is not as large as chargeable capacity.
-Normally, Cigar is suited to most devices, not every devices.
-No crash, do not open or puncture Cigar.
-Expose Cigar to fire, high temperatures, water or corrosive substances.
-If find any breakage or leakage from battery, please stop using and change the battery immediately.
-Children must use under the guidance of parents.
-Protect your eyes from glare light.
-When using torch, the LED chip generates enormous amounts of thermal energy and the shell can get hot, please use with care and prevent burns.
