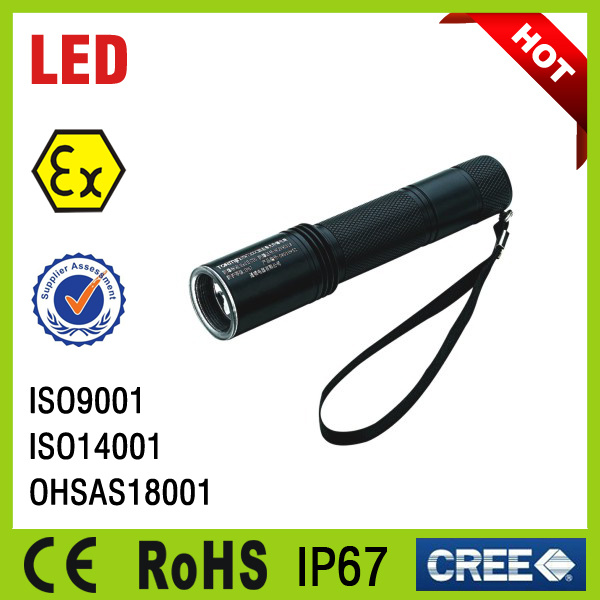

1. CREE LED aluminum housing
2. IP67 rechargeable lithium battery
3. Runtime: 6hrs
4. 100, 000hours service life time
5. CE
Application:
It is applicable to mobile lighting in the operation sites of electric power rescue, criminal investigation and track, patrol or on duty, railway or underwater works, as well as can be used for signal communication and personal indicator.
Characteristics of Performance:
. It uses CREE brand LED light source, with the service life as long as 100, 000 hours. The reflector adopts hi-tech surface finishing enabling high reflect efficiency. The lighting distance is over 100m. And the visual distance can exceed 5000m.
. The lamp is fully sealed to IP67. It allows the work 1m underwater and has a strong impact resistance against the drop from the height of 1 meter.
. The shell is made of aluminum alloy materials.
. Lithium battery for charging. Large bulk capacity, long service life, low discharge and environment protection.
. Charging voltage: AC100V-AC240V 50Hz/60Hz.
. It can be converted into signal flicker light after the switch is pressed for 2seconds.
. A string is attached to the lamp tail, making it portable or put it in the pocket for carrying.
. It can be fastened to the safety helmet with a buckle, so that it can light in any direction.
. Charging, discharge or constant current are controlled by the chip. It is equipped with multiple protections, featuring great safety and high efficiency.
| Description | Unit | ZW7300D |
| Light source | Brand | CREE LED |
| Rated voltage | V | 3.7 |
| Power | W | 1 |
| Rated capacity of battery | mAh | 1700 |
| luminous flux | Lm | 60 |
| lighting time | h | 6 |
| Time of charging | h | 5-7 |
| Effective lighting distance | m | 50 |
| Service life of bulb | h | 100, 000 |
| Service life of battery | Recycled | 1000 |
| Dimension | mm | φ 28× 130 |
| Net weight | g | 118 |
| inner box size | mm | 60× 60× 140 |
| Carton No. | piece | 20 |
| Carton dimension | mm | 340× 310× 155 |
| Gross weight | Kg | 4.5 |
Zhejiang Tormin Electrical Co., Ltd. is a high-tech civilian enterprise that specializes in r & d, manufacture and sales of industrial illumination lamps. Its products are widely used in the fields of electric power, coal mine, petrol, chemical, metallurgy, railway, large airport, fire-fighting, military, flood prevention, rescue work and disaster relief.
In light of the world wide advocating of low carbon economy, zhejiang tormin electrical Co., Ltd. Will carry on the mission of low-carbon illumination, energy conservation & emission reduction, and strive to create a first class brand for industrial lighting in China with the operation guidelines of energy conservation, environmental protection, pragmaticness and innovation. We are always committed to the r & d of a new generation of low energy consumption illumination products and the supply of green products for customers. In an era of low carbon illumination, the company deems the energy-favored illumination as a major project, makes use of the latest technology through independent r & d and technical exchanges and cooperations with counterparts from both at home and abroad, and develops a series of high efficiency products with the combination of efficient illumination sources and electric appliances, whose energy saving effects have reached the internationally advanced level, thus making due contributions for the energy conservation and emission reduction.
The company boasts powerful r & d and manufacturing capabilities, being one of the largest industrial illumination r & d and production bases in China. It is awarded as the technology-oriented small and medium-sized enterprise in zhejiang province, patent demonstration enterprise in wenzhou city, and key patent protection enterprise, etc. At the same time, tongming has obtained the certification of ISO9001: 2008 international quality management system, the national coal mine safety, the state luminaire quality supervision and inspection center, the state fire-fighting equipments quality supervision and inspection center, CE&RoHS, ATEX, IECex and other authorities.
The company enjoys very rich experiences in the planning and implementation of energy conservation projects in various plants, and has developed a number of energy-friendly illumination solutions geared to various industries in China. It provides a whole set of technical services for enterprises in the areas of electric power, metallurgy, petrochemical and coal mine, from the support of energy conservation plans, product selection, project installation, to after-sales services.
With the determination of contributing to the nation and shaping a centennial brand, and upholding the tenet of win-win among customers, employees and the company, zhejiang tongming electric appliance Co., Ltd is endeavoring to create an excellent platform for more and more elites who are to join tongming, and commonly establish a first class illumination enterprise.
