Meanwell power supplier Industrial High Bay LED Light for supermarket
Product Specifications:
LED High Bay Light/Industrial High Bay LED Lighting (30W-500W)
150W LED HIGH BAY Light Main Technical Parameters |
Item No.: | RB-HB-515-150W |
Input Voltage: | AC 85~265V |
Freqency Range: | 50Hz~60Hz |
Power Factor: | >0.98 |
Power Efficiency: | >91% |
LED Power | 150W |
LED Chip: | CREE |
Power Driver: | Mean Well |
LED QTY: | 30PCS CREE XML |
LED Working Voltage: | DC 42~48V |
System Consumption: | 165W |
LED Luminous Flux | Warm White | 14800LM |
Pure White | 16300LM |
Cool White | 16300LM |
Viewing Angle: | 120degree |
Average Illuminance | Height 6M | 245LUX |
|
Illuminance Area | Height 6M | Dia.12 M points visible |
Height 8M | Dia.18M points visible |
Height 10M | Dia.24 M points visible |
Illuminance Uniformity: | >0.6 |
Color Temperature | Warm White | 2700K~3500K |
Pure White | 4000K~5500K |
Cool White | 6000K~7000K |
Color Rendering Index | Ra>80 |
|
Light Distribution: | LED points visible |
LED Junction Temperature: | ≤115ºC |
Working Temperature: | -40ºC~50ºC |
IP Grade: | IP54 |
Working Life-span: | 50000 H |
Power Line: | 1.0 mm2 three line |
Connect Wire | Brown | L |
Blue | N |
Yellow / Green | G |
The color of the lamp shell | Black and silver is available |
Certificate | CE /ROHS/UL |
Net Weight: | 8.7KG |
Industrial led lighting Features:
1.Using single powerful LED(30-500W)as the light source, with unique lighting design of Multi-chip integrated single-module; select for excellent imported semiconductor chip, it has high thermal conductivity, low luminous decay, pure colors and no heavy shade etc.
2.The unique design of radiator which can combine with the lamp box perfectly, diffuse the heat conduction efficiently, so that reduce the temperature of inside lamp, it ensures the LED longlife-span.
3.The surface of radiator is treated by antiseptic and anodic oxidation; with compact structure and aesthetic appearance.
4.Environment-friendly, no air pollution, no lead-free, no-mercury.
5.With high color rendering index which can show a true color of things for people, kinds of light colors are available, meet the requirement of different environment; clear up the depressive mood caused by lower or higher color temperature compared with conventional lamp, make more comfortable for people's eyes which can greatly improve people's working efficiency.
6.Adopted advanced constant current controlling techniques; wide voltage range available and global universal; overcome the lighting instability caused by electric network of ballast and noise pollution; avoid the stimulation and tiredness taking from long-time work.
7.Apply for unique surface treatment technology, welldecorated, novel style, easy to install, lower maintenance cost and wide in application.
Competitive Advantage:
1. CE & RoHS & TUV approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 2-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan

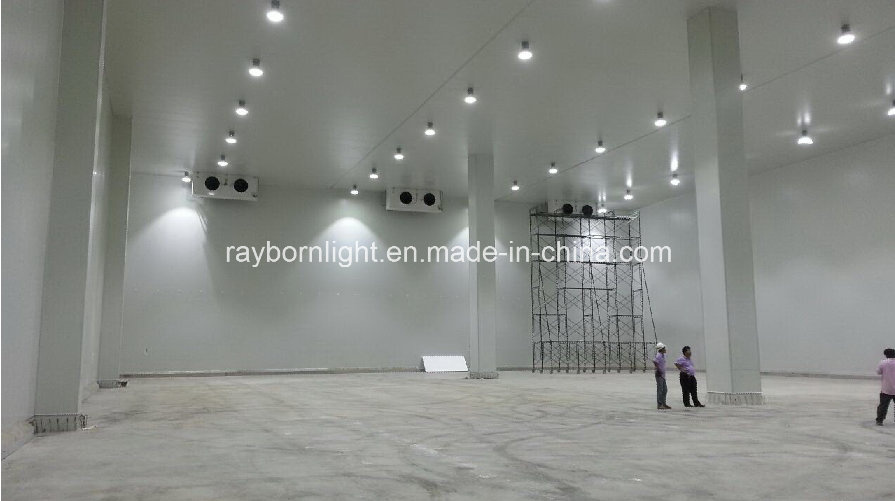

High bay led lighting Application :
Apply to workshop,factory,warehouse,building,highway toll stations,supermarkets, stadiums and other places of lighting required
