LED Outdoor Light
Main Feature

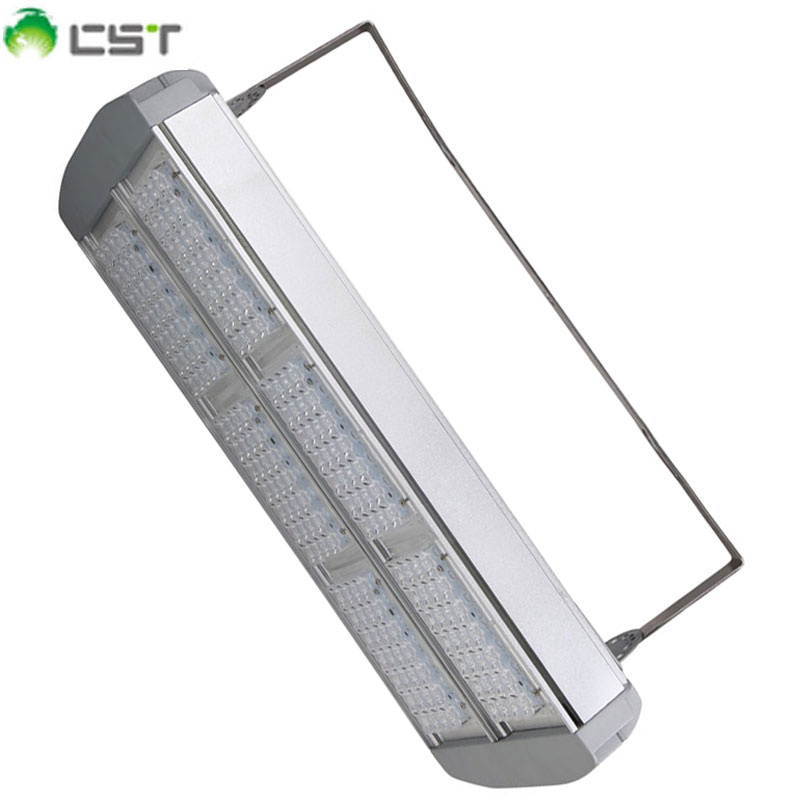

1, 168W LED Tunnel Light
2, Bridgelux 45mil LEDs;
3, Meanwell driver;
4, Warranty 3 years
5, lifespan more than 50, 000 hours
Product Features:
1. Bridgelux 45mil led at 120-130lm
2.2700-6500K
3.100-110lm/W
4. Meanwell driver with UL, TUV, SAA certificates approved
5. High purity 6063 Aluminum Alloy as Cooler
6. Lifespan more than 50, 000 hours
7. Eco friendly, no mercucy and lead etc, no thermal radiation, no harm to eyes and skins
8. Customized order weolcomed LED housing used high quality the oxidized 6063 aluminum, lifetime can be 30 years.
Advantages:
1)Radiator used high quality fins, has great heat dissipation effect.
2)High quality Optical Lens for making the secondary light distribution design.
3)Advanced waterproof power supply, Constant current high precision, wide voltage range, high power factor.
4)LED Light source, long lifetime, small light failure, 50000 hours efficacy maintain in more than 70%.
5)Cooling area is large, special heat dissipation for power supply. Air convection effect is good.
6)Light weight, easy assembly, production fast.
Application:
It is applied to exterior walls of building, railway, subway, highway tunnels, gasstation, parking-lot, warehouses, largeworkshop, stadium, stage, advertising lighting, landscape lighting, indoor local
Lighting, afforesting landscape lighting, signboard lighting, medical culture and other special
Facilities, tage bars, in factories, stadiums, advertising boards, parks, and tunnel and so on.
Low power consumption, long life time, many colors available.
|
Item |
CST-LT-B-168W |
|
Power |
168W |
|
LEDs |
168pc Bridgelux 45mil LEDs |
|
Driver |
Famous Brand Meanwell Driver |
|
Input Voltage |
AC85V~265V |
|
Freqency Range |
50Hz~60Hz |
|
Total Harmonic Distortion |
≤ 9% |
|
Power-factor |
> 0.9 |
|
Leds |
168pcs Led Source |
|
System Consumption |
182W |
|
LED Luminaire Efficiency |
> 80% |
|
Beam Angle |
160 degree |
|
Illuminance Uniformity |
> 0.6 |
|
Color Temperature |
2700-7000K |
|
Color Rendering Index |
> 75 |
|
Light Distribution |
Symmetry / Light Spot (round) |
|
Junction Temperature |
< 80 º C |
|
Operation Temperature |
from -40 º C to + 55º C |
|
IP Grade |
IP65 |
|
Life Span |
more than 50, 000 hours |
|
Connect Wire |
L/N/G |
|
Housing Material |
Aluminum Alloy |
|
Net Weight |
9.5kg |
|
Package size |
580*340*185MM |
Chinst (CST) Illuminication Co., Ltd, located in Shenzhen city in China, is professionally engaged in R&D, manufacturing, marketing and installation guide of LED products. The engaged LED products in CST Company involves LED Panel Light, LED Tube Light, LED Flood Light, LED Highbay Light, LED Tunnel Light, LED Street Light which are used around the world in decorating millions of homes, landmarks, buildings, workplaces, shopping centers and alike, and make the world more colorful.
CST excellent developing group, advanced manufacturing base, expertized instrument can research and develop new products according to market requirement and client' S demand, now CST products with most high-quality and reasonable price is welcomed by numerous users.
CST have implemented ISO9001 quality management standard, production quality strictly according to the managemet system. All products pass CE, RoHS, or SGS certificates and other authorative certificates required by other clients in the world. Each new kind LED product from CST Company must be test at least 6 months before mass production. We also set up a whole system of purchase, producing, final examine, project test for controlling every production link so that to ensure the quality. Each batch of LED finished products from CST Company must be 100% testing before putting into market. In a word, our concept to product quality is "pursuing best, reaching better".
Every year, CST join in different Fairs held in home and abroad, e. g. Canton Fair, HK international lighting fair, Frankfurt lighting fair, Italy lighting exhibition, etc. Besides, ODM/OEM are also a part of business that we have been doing. We work closely with our clients to ensure their complete satisfaction. Our motto is quality, efficiency and competitive price. We believe that good business comes from first-class Quality and excellent reputation. And we sincerely hope to establish long term cooperation with new and Old customers.
