Home LED Light Products Meanwell 8000hours Warranty 200W LED High Bay Light

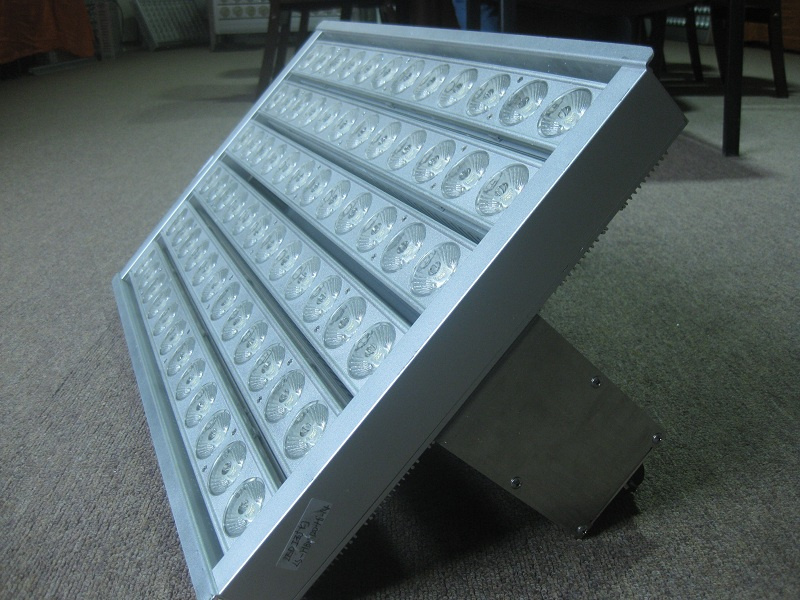

Meanwell 8000hours Warranty 200W LED High Bay Light

Meanwell 8000hours Warranty 200W LED High Bay Light
Price: US $ 360/Piece
Trade Terms: FOB
Min Order: 2/Piece
Pay Type: T/T,Paypal,Western Union
CE&RoHs approval  80000warranty MNX control LED high bay light

Product Description
Feature
* solar led Lighting in the world!
* PremiumPrecise Optical Lens System, 2-10 times brighter than conventional
light
* Modular Design, Easier Maintenance
* Direct Heat Path Technology, 2-5 times better stability
* Anti-Glare System, suitable for any occasions
* IP66, underwater use support
* 3 Years Warranty! solar light

solar light, high power solar light, brightest solar light, perfect solar light
TECHNICAL PARAMETER


Model No.
PowerLight efficiencyLumen (White)Equal Lumen (White)Available AngleReference Direct ReplacementLight Body Size
LxWxH (mm)
exclude holder
Light Weight
(kg)
Bridgelux
LS-HBN100-LITE100W140lm/W   (CREE 120lm/W)12000lm24000lm10,25,40,60,90,120 degree200-300W
Metal Halide
300X160X2153.5140
LS-HBN150-LITE150W140lm/W   (CREE 120lm/W)18000lm36000lm10,25,40,60,90,120 degree300-450W
Metal Halide
300X225X2155.5210
LS-HBN200-LITE200W140lm/W   (CREE 120lm/W)24000lm48000lm10,25,40,60,90,120 degree450-600W
Metal Halide
300X290X2156.5280
LS-HBN250-LITE250W140lm/W   (CREE 120lm/W)30000lm60000lm10,25,40,60,90,120 degree500-650W
Metal Halide
355X300X2158350
LS-HBN300-LITE300W140lm/W   (CREE 120lm/W)36000lm72000lm10,25,40,60,90,120 degree800-1000W
Metal Halide
420X300X2159.5420
LS-HBN420-LITE420W140lm/W   (CREE 120lm/W)50400lm100800lm10,25,40,60,90,120 degree1000-1400W
Metal Halide
485X350X21513.5588
LS-HBN560-LITE560W140lm/W   (CREE 120lm/W)67200lm1344000lm10,25,40,60,90,120 degree1200-1400W
Metal Halide
485X450X21516.5784
LS-HBN640-LITE640W140lm/W   (CREE 120lm/W)76800lm1536000lm10,25,40,60,90,120 degree1200-1400W
Metal Halide
550X450X21519896
LS-HBN720-LITE720W140lm/W   (CREE 120lm/W)86400lm172800lm10,25,40,60,90,120 degree1600-1800W
Metal Halide
615X450X215211008



More details


ITEM

IP66 Waterproof LED Lamp





ITEM NO

LS-HBN150-LITE





Power

150W





Light Source

epistar





Input Voltage

90-265VAC 50-60HZ





Power Factor (PF)

≥0.95

Power Efficiency

≥90%

Color Index(CRI)

Ra>65

Light Angle

10°, 25°, 40°, 60°, 90°



2700-3500K

Color Temp:

5000-6500K



6500-7500K

LED Luminous Efficiency

120lm / Watt





Luminous Flux (Typ.)

18000lm





Equal Flux (Typ.) *

36000lm





Life Span

≥80000 hours





Work Temperature:

- 25 ° C ~ 55 ° C





Storage Temperature:

- 40 ° C ~ 80 ° C





Working Humidity

10 % ~ 90 % RH





IP Rating

IP66





Light Attenuation(80000h)

30%





Light Body Size (LxWxH)

300x225x215mm





Lamp Net Weight(KG)

5.5





Package Size:

400x330x350mm





Total Weight(KG)

7.5









 Test data

Hour(H)

Light Flux(LM)

DC Voltage

DC Current(A)

Preservation Rate of

light









1

110000lm

31.33

35

100%

1000

107800lm

31.35

35

98%

2000

107360lm

31.30

35

97.6%

3000

106150lm

31.35

35

96.5%

5000

104500lm

31.28

35

95%

6000

103730lm

31.37

35

94.3%

6500

102850lm

31.37

35

93.5%



Packaging & Shipping
1.carton

2.Wood packing



Company Information
Company file
 Ledsmaster Technology Co,Ltd was established in 2005,
located  in BaoAn ,Long Hua ,Shenzhen City ,Guangdong province ,China.
As a professional manufacturer of LED lights with years of experience ,
Ledsmaster have succesfully acquired more market shares around the world
and gained the great reputation for reliable professional and classic services .
We manufacture led light such as flood light, fish lighting, street light, highbay light, billboard light,
widely applied to indoor and outdoors.
Prod Model: LS-HBN200-LITE
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand: Ledsmaster
Available Angle: 10,25,40, 60,90,120 Degree
Reference Direct Replacement: 450-600W Metal Halide
Lumen (White): 24000lm
Light Body Size: 300X290X215mm
Light Weight (Kg): 6.5kg
Working Voltage: 90-295V AC
Control: DMX/Dali/PWM
Driver: Meanwell
Warranty: 5years
Color Temperature: Pure White
Lamp Body Material: Aluminum Alloy
IP Rating: IP67
Certification: RoHS
Usage: Mine, Factory, Warehouse, Square,Shopping Mall
Beam Angle: 10,25,40,60,90,120 Degree
LED Chips: CREE, Bridgelux, Epistar
