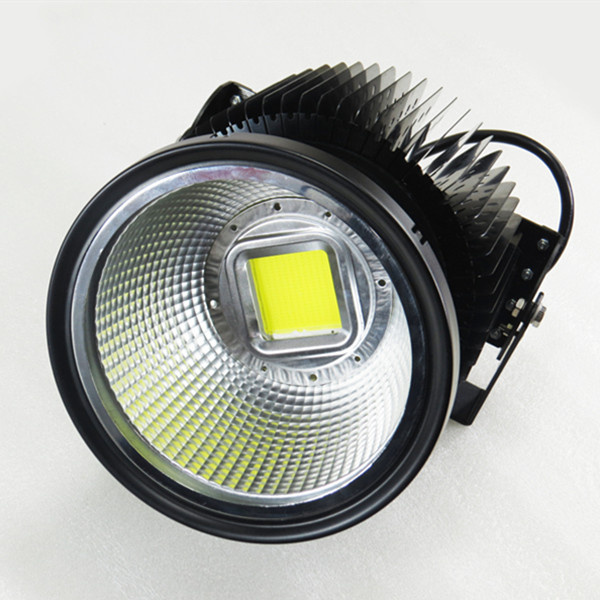

Meanwell 100W Industrial LED High Bay Light for Warehouse

Meanwell 100W Industrial LED High Bay Light for Warehouse
Price: US $ 120/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Meanwell 100W Industrial Warehouse LED High Bay Light

1. Main Parameters

Power: 100W/150W/200W/300W/400W

Chip: Bridgelux (45MILx45MIL)

Certification: CE&RoHS

LED Driver: Meanwell

IP Grade: IP65

2. Feature

>>Protection level: IP65.

>>Fin Heat Sink Design: The warehouse LED high bay light is with pure aluminum heat lamps fitted with ultra-thin overall welded to ensure rapid heat conduction while using fins and air convection cooling, to achieve the best cooling effect.

>>Bridgelux 45MIL Chip: The warehouse LED high bay light adapts Chip with 1-5W power and integrated light source, effectively ensuring the brightness.

>>Condenser Cup: The warehouse LED high bay light adapts built-concentrating Cup highlighted with light, light uniformity, so visual effect is more moderate.

>>Meanwell Driver Configuration: The warehouse LED high bay light is with well-known brands Meanwell Power CLG150W-48A, more stability and strong power.

>>Anti-glare Effect: The warehouse LED high bay light can reduces glare, highlights the overall space lighting and improve the overall brightness of the railway/carport/warehouse/garage etc.

3. Application

1) Warehouse

2) Sport Fields

3) Stadiums

4) Factories

5) Grocery stores

6) Parking garages

4. Company Introduction

We Victory Lighting is mainly focus on LED Outdoor Lighting ( LED Street Light, LED High Bay Light, LED

Flood Light and LED Canopy Light), LED Indoor Lighting ( LED T8 Tube Light, LED T10 Tube Light, LED

Bulb, LED Spotlight). Every product from Victory Lighting is managed by ISO9001, the product also gained CE&RoHS.

5.100w LED High Bay Light Installation:
   These high quality led high bay light use one superbright LED chip to emit over 6300
lumens making them an ideal item for replacing old halogen floodlights. Another

benefit over the halogen floodlights is the fact that they remain cool whilst in use
 with no UV or IR heat radiation.

The led flood light is simple to install as it has a one metre power lead which can be easily
connected to your mains and also includes the fixing bracket so you can easily fit

it in place. We have had the led flood light specifically designed to our requirements and it
 is simply the brightest led flood light available

For any further information about our Meanwell 100W Industrial Warehouse LED High Bay Light, just be

free to contact me. ^_^

Meanwell 100W Industrial Warehouse LED High Bay Light
Power100W/150W/200W/300W/400W Size260x260x230mm
Housing MaterialAluminum AlloyColor  Temperature 3000K-6500K
Lumens100-110lm/WPower Factor> 0.95
LED ChipBridgeluxChip Model45MILx45MIL
Working Temperature-20° C-50° CWeight3.9kg
Insulation GradeICorrosion-Proof GradeWF2
Cable 8-14 mmIP GradeIP65
ApplicationWarehouse,Industry,  Garages VoltageAC85-265V
Warranty2 YearsLifespan≥ 50, 000 hrs

Prod Model: WY2210-100W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: 260X260X230mm
Weight: 3.9kg
LED Chip: Bridgelux
Chip Type: 45milx45mil
Lumens: 100-110 Lm/W
Power Factor: 0.95
Heat Sink Design: Fin Heat Sink
Input Voltage: AC85-265V
Application: Warehouse, Stadium, Carport etc.
Corrosion-Proof Grade: Wf2
Lamp Body Material: Aluminum Alloy
IP Rating: IP65
Certification: RoHS
Color Temperature: Ww, Nw, Cw
Power: 100W/150W/200W/300W/400W
Shenzhen Victory Lighting Co., Ltd. Consists of a team of researchers who have undertaken the energy-saving application study for a long time and technicists of manufacturing lamps and lanterns.
Shenzhen Victory Lighting commits itself to apply the latest light source, new technique and new material into lights business, provides a variety of moveable or fixed energy-saving lamps and lanterns by itself and offers the best and efficient service. Victory' s products are used in the area ranged from electric power, railways, public securities, fire protections, police offices, metallurgies, coal mine, petrochemical industries, oil fields, armies to other industries.
Victory Lighting is identified as a servant enterprise of Energy-Saving Lamps and Lanterns. It takes being professional, honest, speedy and practical as its tenet; Its will is people foremost and meeting customers' needs; Its goal is highly serve for our clients; Its reputation bases on perfect quality of its products and it has scientific managements. So Victory is ready for becoming a modern sustainable development company in shareholding system.
As serving agent, we all take the responsibility of saving energies for society and reducing costs of ourselves. Today, the lack of energies becomes heavier and heavier. So with the saying of an advocate to save energies in publics, we also devote ourselves as much as possible; And we focus on the services in all business. Not only can we provide the services from pre-producing, middle producing to after services, but also services with personalities on light's scheme, lights' projects or energy-saving scheme are satisfied to our customers.
Board of directors, board of shareholders, board of supervisors and staff committee are established here. The operating team consists of a general manager, majordomo, suboffices and divisional managers. Its departments include marketing departments, quality control departments, agents, general accounting departments, human resource departments, administration depts., R&D and PD.
According to the ISO9001: 2000, Woye strictly and completely management of products' quality and services.
